OPERATING THE MACHINE
5-2

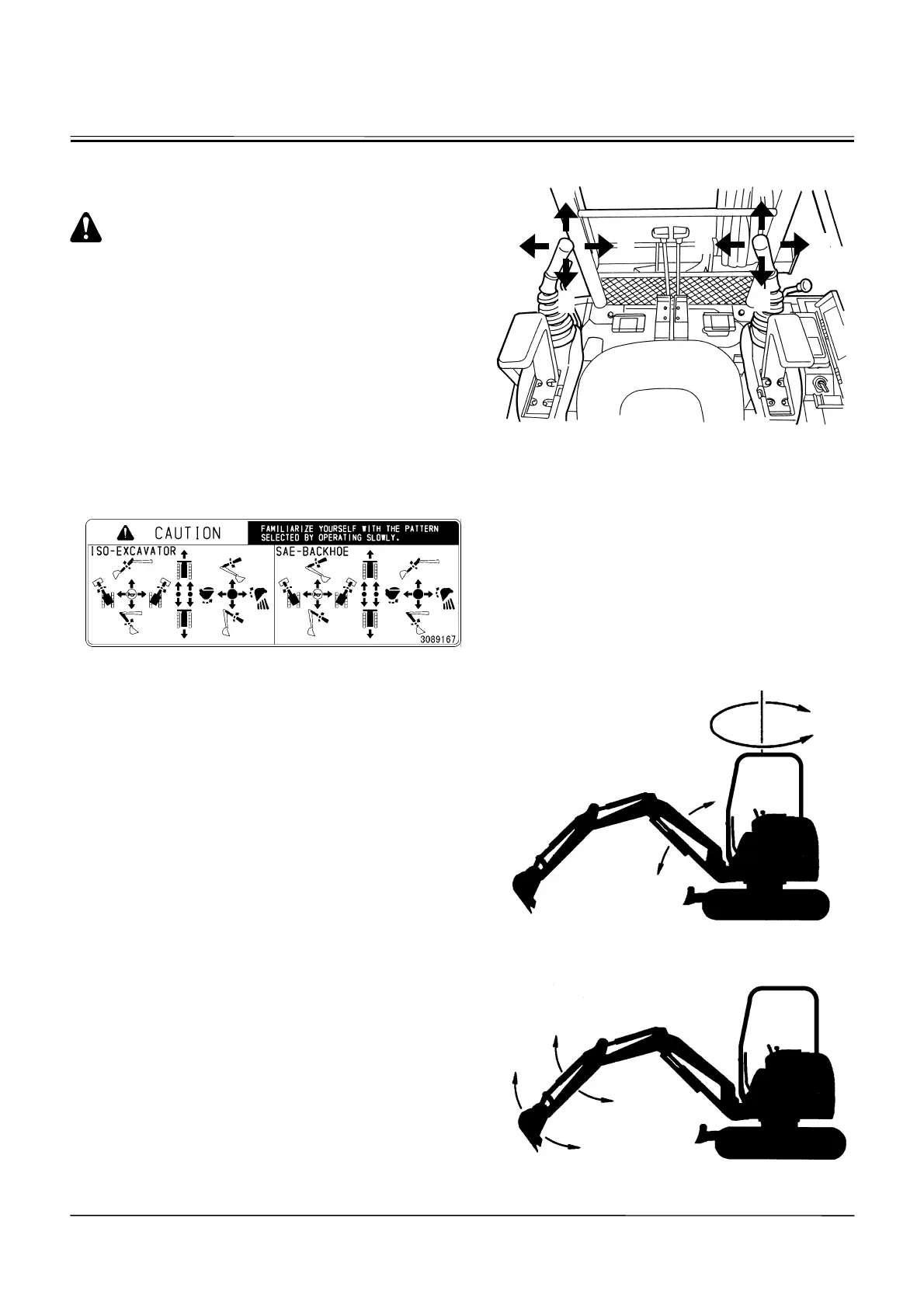

CONTROL LEVER
(SAE-BACKHOE PATTERN)
CAUTION: Make sure you know the location and
function of each control lever before operating.
The upperstructure and/or front attachment may
unexpectedly move in an attempt to look back
because a part of operator’s body may come into
contact with the control lever(s). Take care not to
come into contact with the control levers when
looking back.
Labels showing the SEA-BACKHOE pattern are provided
on the operator’s right.
SS3089167
When a lever is released, it automatically returns to neutral,
stopping the function.
1- Boom Lower
2- Boom Raise
3- Swing Right
4- Swing Left
5- Arm Roll-Out
6- Arm Roll-In
7- Bucket Roll-In
8- Bucket Roll-Out
M586-01-023
M586-05-032
M586-05-037
3
2
4
1
8
6
7
5
6
5
4
3
1
2
7
8
