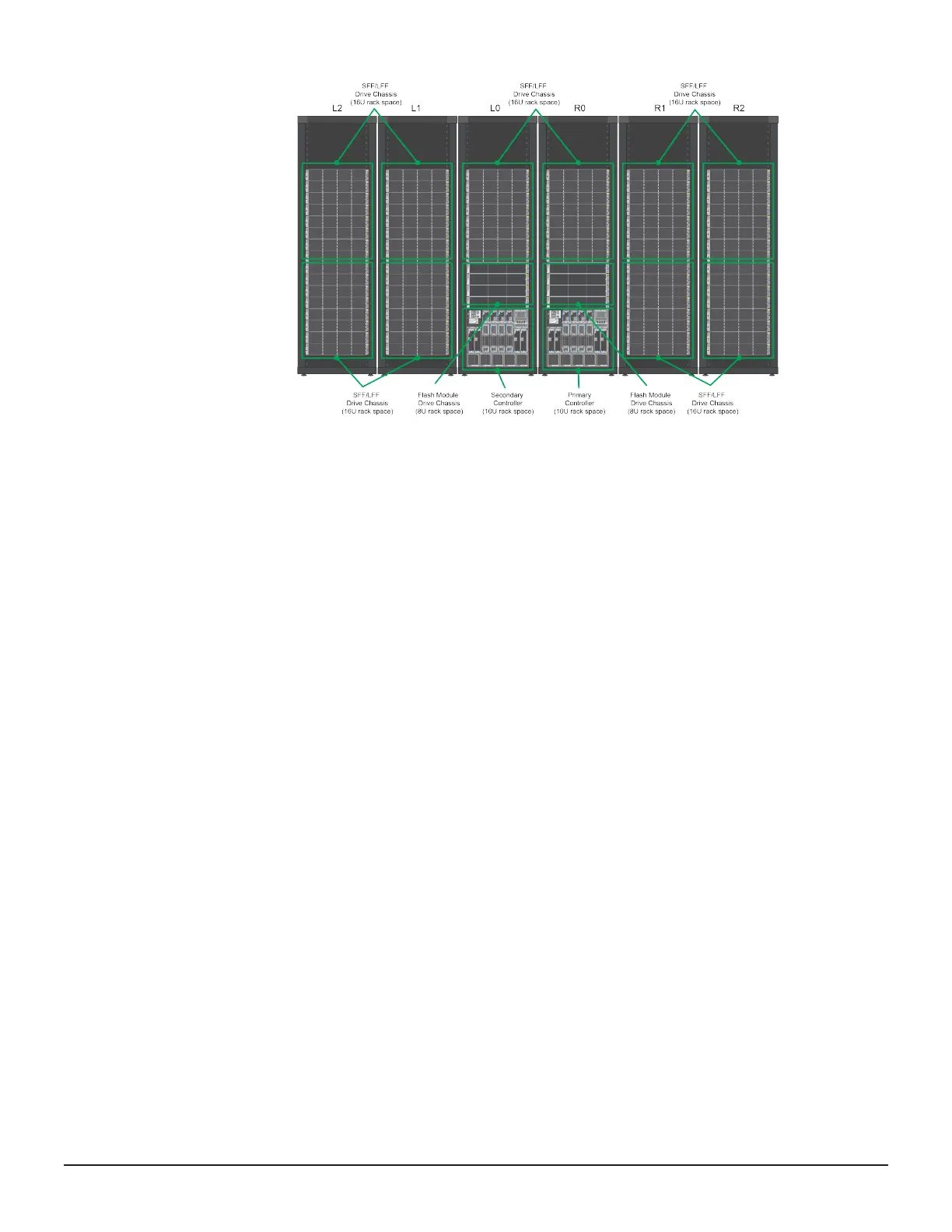

Figure 23 Default rack placement
Separated controller configuration
With most dual-controller configurations, the primary and secondary
controllers are installed in separate racks. By default, these racks are
connected to each other.
If desired, you can separate the two racks containing the primary and
secondary controllers. By specifying the racks are not physically attached to
each other, the Hitachi Configurator asks you to specify the length of cable
for connecting the two controllers. Cable length options are 5 meters (which
is the standard length), 30 meters, and 100 meters.
The following figure shows a dual-controller configuration, with extended
cabling between the racks containing the two controllers. The Configurator
includes additional side panels as required.
