Hitachi GP2 - Assemble the Cut-Out Tool

Sleipner Motor A/S Sleipner Motor A/S
- Assemble the cut-out tool, and adjust it to the right tunnel
diameter. After finger-tightening the two threaded handles,
tighten the adjustment-screw to get the right A-distance
Thruster Position at cut-out tool Distance A
SP35S 125 Min. 74mm
Min. 2
15
/
16
”
SP55S, SP75T, SP95T,
SP100HYD
185 Min. 105mm
Min. 4
1
/
8
”
SP125T, SP155TC,
SP200TC, SP200HYD
250 Min. 140mm
Min. 5 ½”
SP220TC, SP285TC,
SP300HYD
300 Min. 167mm
Min. 6
9
/
16
”
SP550TC HYD 386 Min. 213mm
Min. 8
3
/
8
”

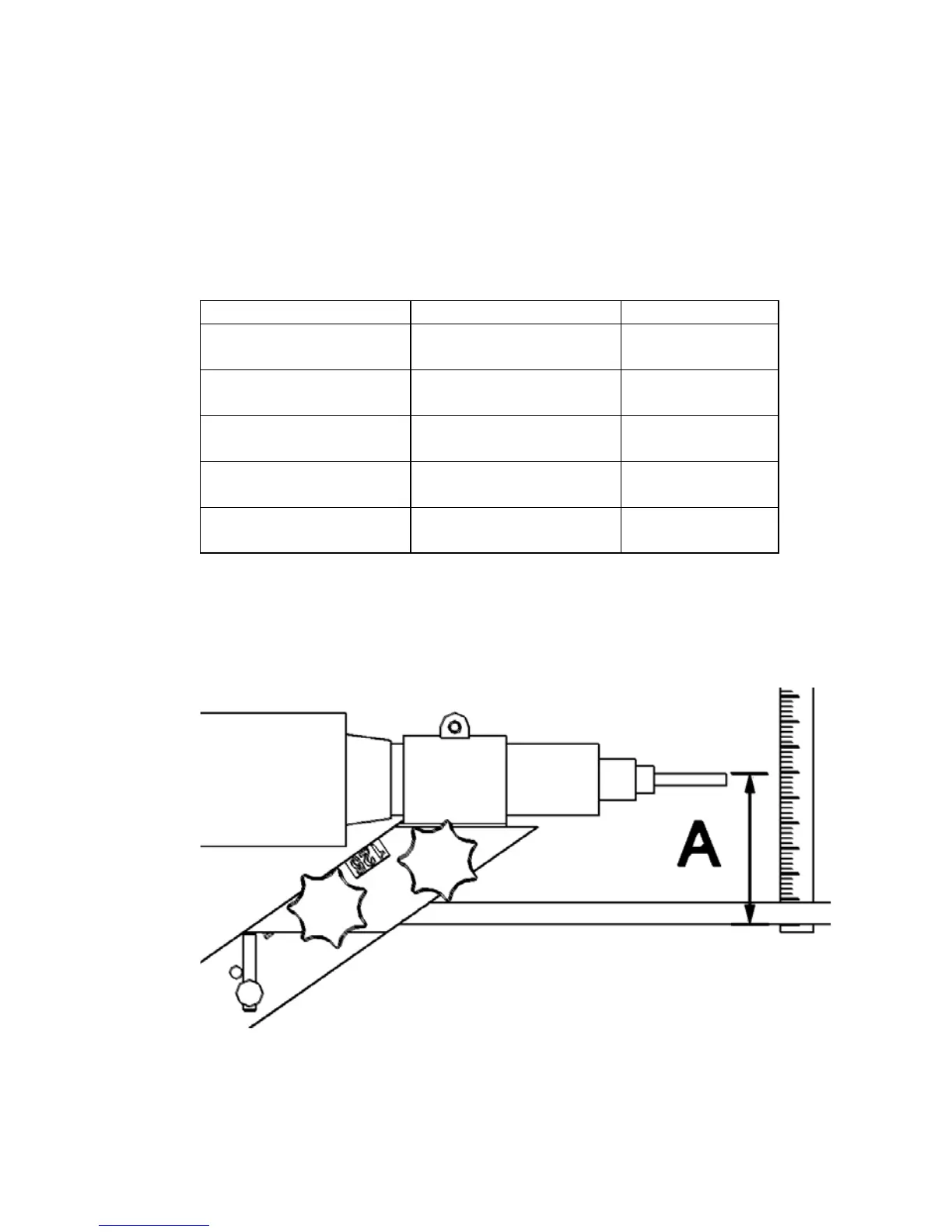

Use the table for selection of position and adjustment of the cut-out tool.
Adjustment-screw at Ø125mm tunnel
Adjustment-screw at Ø386mm tunnel
