--- 24 ---

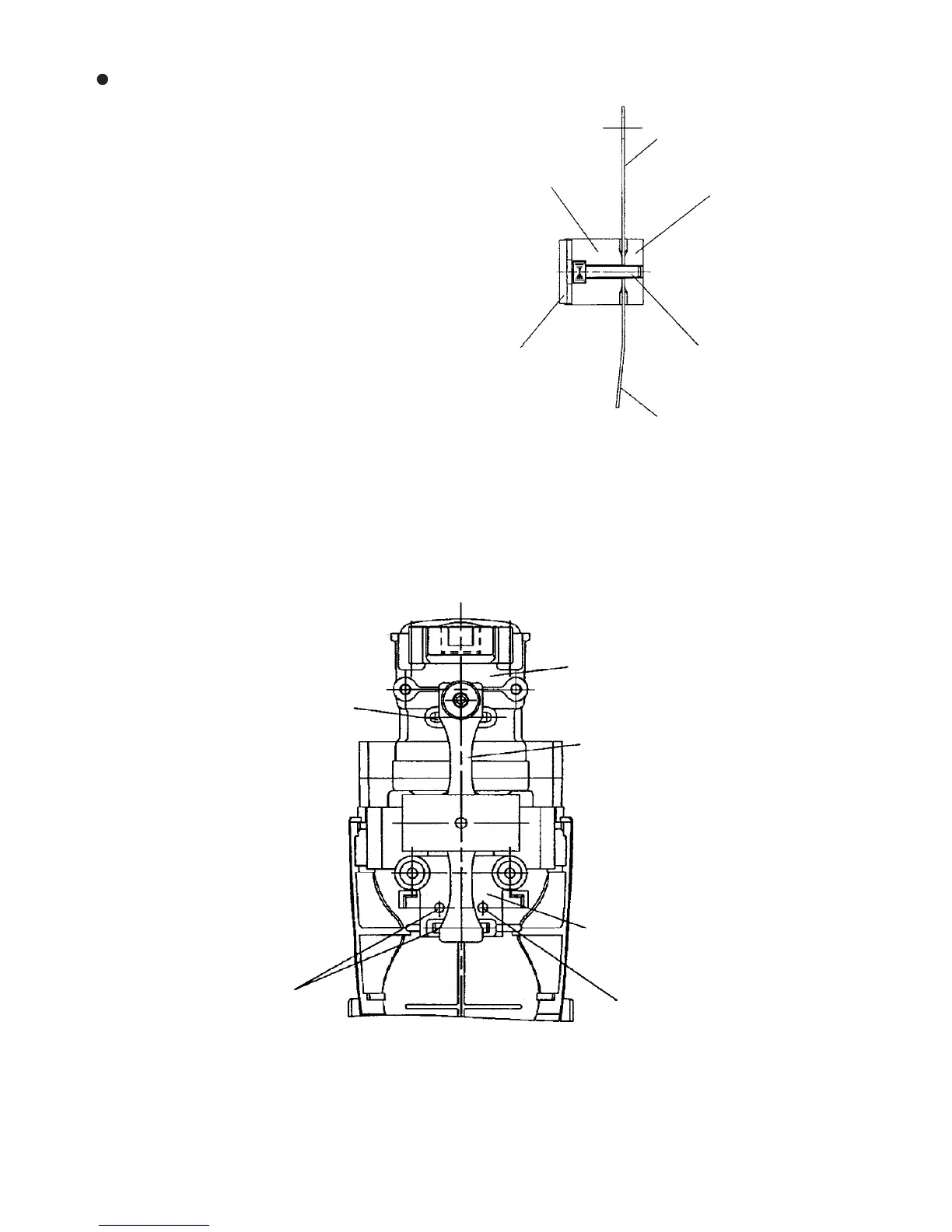

Mounting the leaf spring
Sandwich the Leaf Spring [51] between Weight
(A) [59] and Weight (B) [58] and fix it with the
Seal Lock Hex. Socket Hd. Bolt M5 x 22 [56].
Sufficiently degrease the adhering surface of
Weight (B) [58] and adhere Rubber Sheet (C)
[57] securely. Be careful that the Leaf Spring [51]
is curved to Weight (B) [58]. At this time, do not
misalign Weight (A) [59] and Weight (B) [58],
and do not turn the Leaf Spring [51] (Fig. 25).
Fig. 25
Weight (B)
Rubber sheet (C)
Leaf spring
Curved portion
Weight (A)
Seal lock hex. socket
hd. bolt M5 x 22
Mount the Spring Base [115] to the Housing Ass'y [114] being careful of the mounting direction. Mount one
Needle Roller [55] to the Cylinder Crank Case [47] and three Needle Rollers [55] to the Spring Base [115].
Before mounting, apply grease to the Needle Rollers [55] to avoid being removed (Fig. 26).
Fig. 26
Needle roller
Needle roller
Cylinder crank case
Needle roller
Leaf spring
Spring base
