Hitachi HTA-DD3E - Service Points and Disassembly

HTA-DD3
 4 
1
2
1
Top cover
x 2
x 2
x 4
Rear Plate
3
x 28
4
x 1
21
x 5

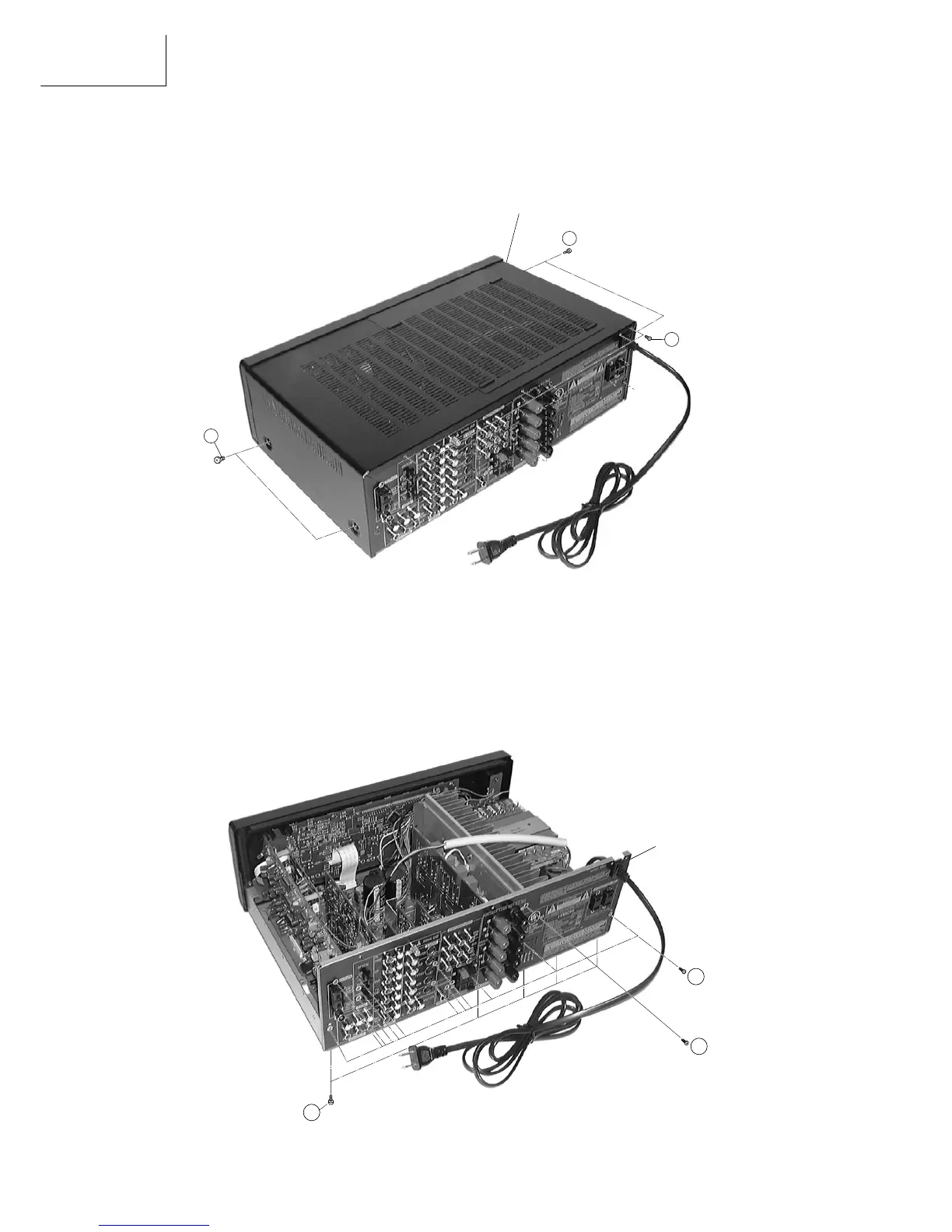

Fig. 1
Fig. 2
SERVICE POINTS
1. Removal of Top Cover
(a) Remove 2 screws 1 from each side.
(b) Remove 4 screws 2 from the rear plate.
2. Removal of Rear Plate
(a) Remove 28 screws 3 and 1 screw 4 from the rear plate.
(b) Remove 5 screws - from the Bottom Chassis.
