Hitachi HTA-DD3E - Removal of Front Panel; Removal of Inner Panel, Power Switch, Phone Jack & FL Board

HTA-DD3
 6 
12
12
Nut x 1
Inner Panel
Nut x 2
15
13
x 1
x 1
14
x 2
x 2
x 11
9
10
x 4
x 2
11
x 1
Bottom Chassis
Bass/Treble Knob
Master Vol.
Front Panel

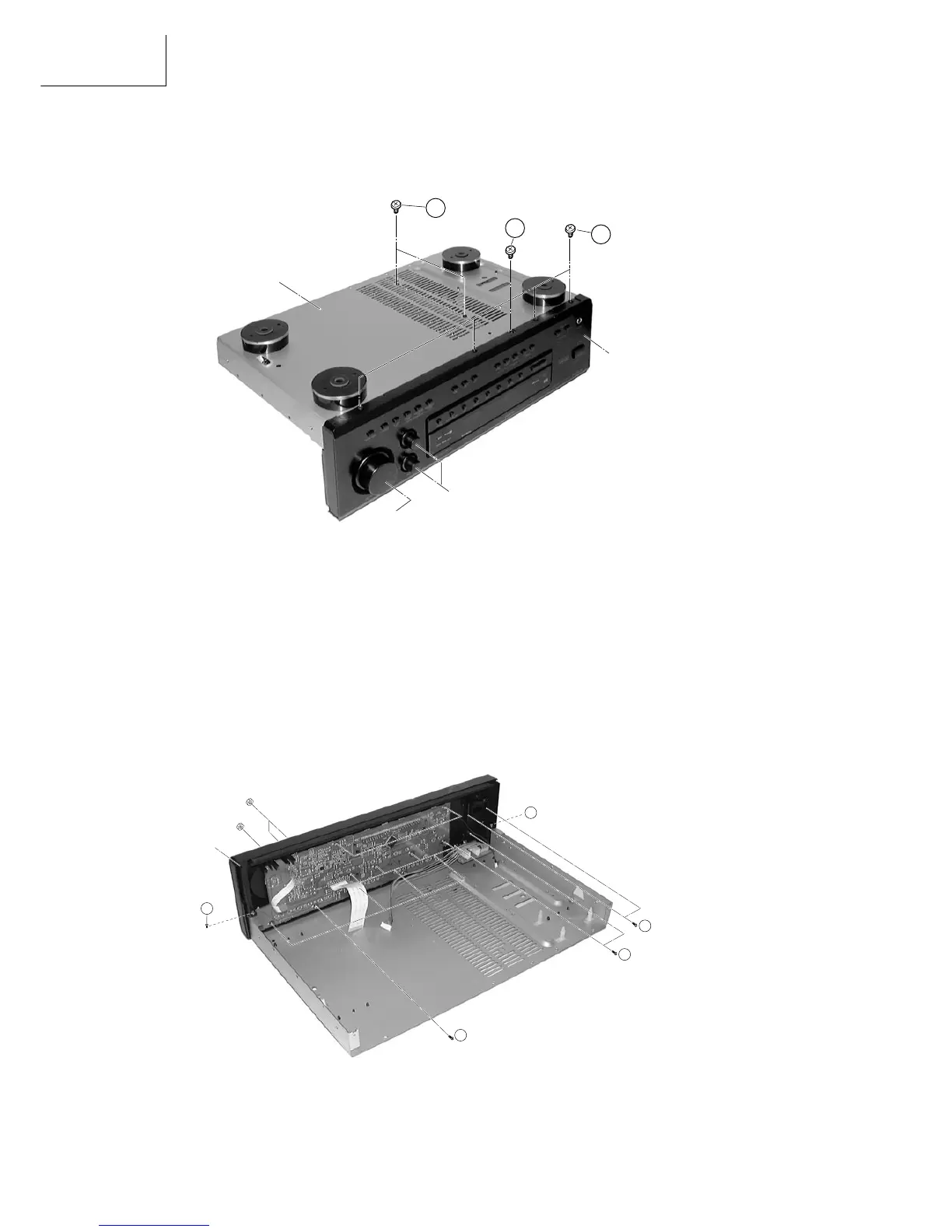

Fig. 6
5. Removal of Front Panel
(a) Invert the Bottom Chassis and remove 4 screws !.
(b) Remove the Master Vol. & Bass/Treble knob before remove the Front panel.
6. Removal of Inner Panel, Power Switch, Phone Jack & FL board.
(a) Release the inner panel from the bottom chassis by remove 1 screw " (Fig 5) and 2 screws #.
(b) Remove 11 screws $ and 3 nuts to release the FL board.
(c) Remove 2 screws % to release the Power switch.
(d) Remove 2 screws & to release the Phone Jack.
Fig. 5
