L100 Inverter
Operations
and Monitoring
4–5

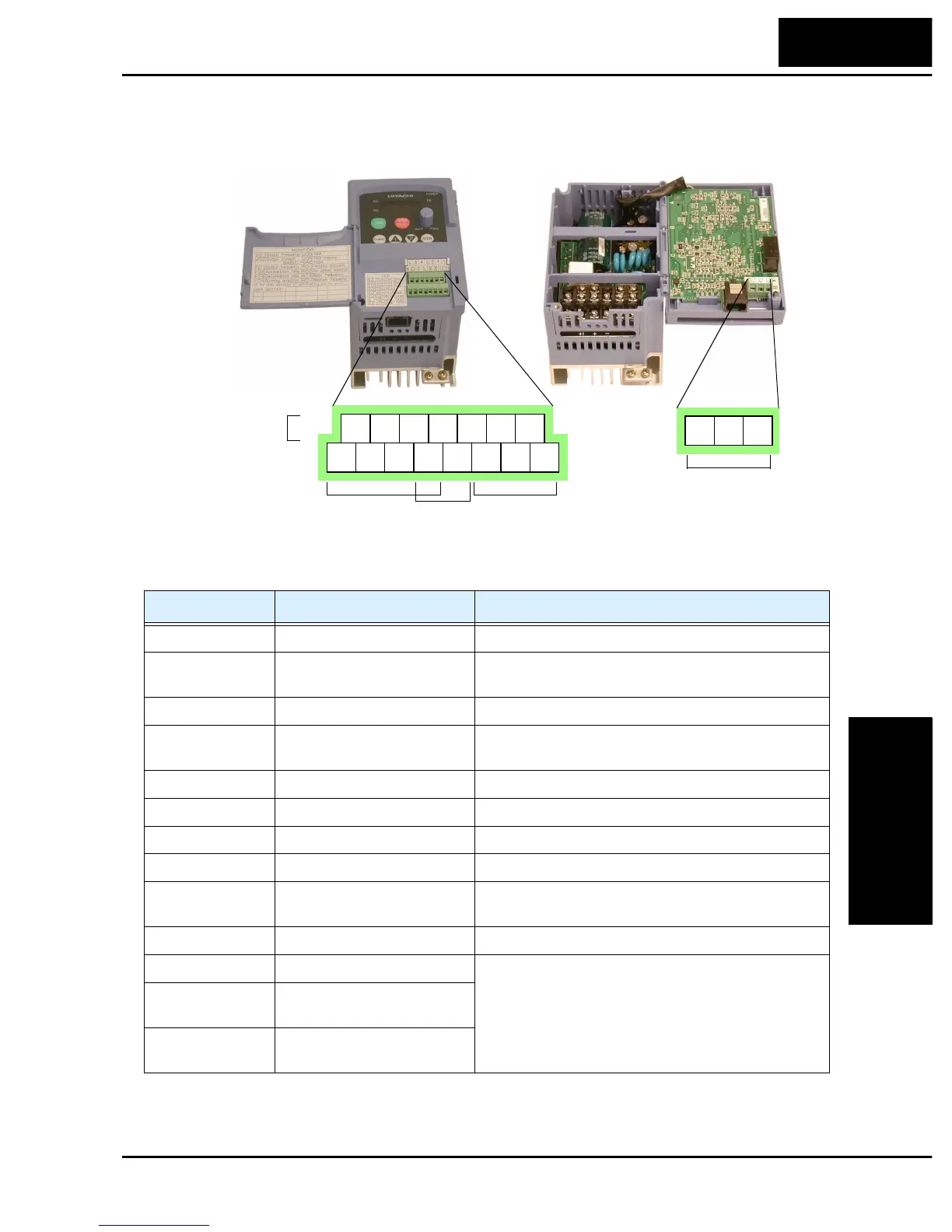

Specifications of Control and Logic Connections
The control logic connectors are located just behind the front panel half-door. The relay
contacts are accessible behind the main door. Connector labeling is shown below.
Specifications for the logic connection terminals are in the following table:
Note 1:
The two terminals “L” are electrically connected together inside the inverter.
P24
123L 45
1112
CM2FM
O LOIH
AL0 AL1 AL2
Relay
contacts
Logic
inputs
Analog
Inputs
Analog
Output
Logic
outputs
Terminal Name Description Ratings
P24 +24V for logic inputs 24VDC, 30 mA max (do not short to terminal L)
1, 2, 3, 4, 5 Discrete logic inputs 27VDC max. (use P24 or an external supply refer-
enced to terminal L)
L (top row) *1 GND for logic inputs sum of input 1-6 currents (return)
11, 12 Discrete logic outputs 50mA maximum ON state current,
27 VDC maximum OFF state voltage
CM2 GND for logic outputs 100 mA: sum of 11 and 12 currents (return)
FM PWM (analog/digital) output 0 to 10VDC, 1 mA, PWM and 50% duty digital
L (bottom row) *1 GND for analog inputs sum of OI, O, and H currents (return)
OI Analog input, current 4 to 19.6 mA range, 20 mA nominal
O Analog input, voltage 0 to 9.6 VDC range, 10VDC nominal,
input impedance 10 k
Ω
H +10V analog reference 10VDC nominal, 10 mA max
AL0 Relay common contact 250 VAC, 2.5A (R load) max.,
250 VAC, 0.2A (I load, P.F=0.4) max.
100 VAC, 10mA min.
30 VDC, 3.0A (R load) max.
30 VDC, 0.7A (I load, P.F.=0.4) max.
5 VDC, 100mA min.
AL1 Relay contact, normally
closed during RUN
AL2 Relay contact, normally open
during RUN
