Orientation to Inverter Features
Inverter Mounting
and Installation
2–4
Front Housing Cover
Housing Cover Removal - The front housing cover is held in place by two pairs of tabs.
Since these are hidden from view, it is good to become familiar with their locations

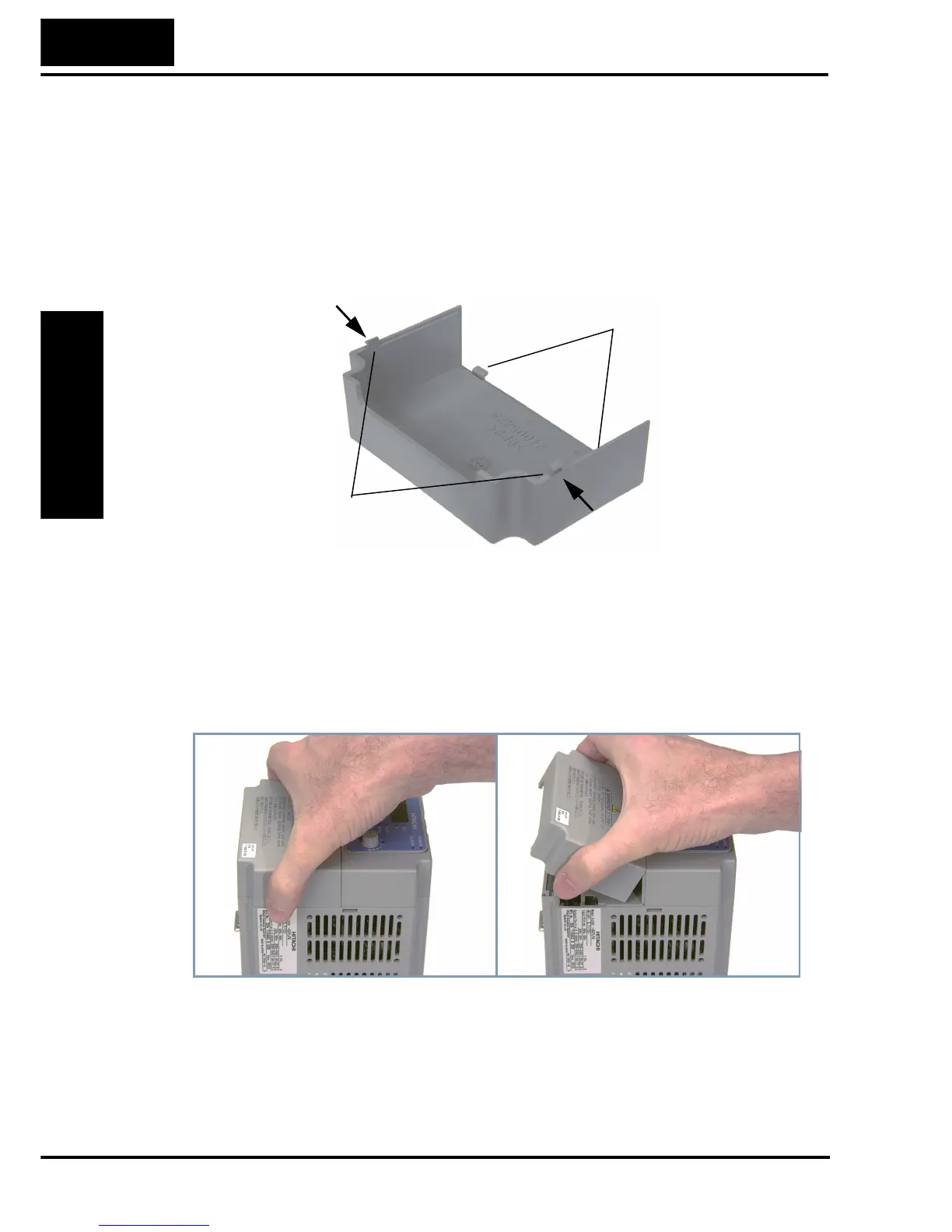

before attempting to remove the cover. The figure below shows a typical housing cover
in upside-down position to reveal the tabs. The two locking tabs are the ones which you
will need to press to remove the cover. The two hinging tabs will allow the cover to tilt
open once the unlocking tabs are released.
The figure below shows the procedure for removing the housing cover. While pressing
inward on the housing, it is helpful to wiggle the cover side-to-side in order to release the
locking tabs. DO NOT force the cover open; it is possible to break a tab in this way.
Locking tabs
Hinging tabs
PRESS
PRESS
1. Press inward on both sides. 2. Tilt upward after both locking
tabs are free.
