32
Confidential to Customer

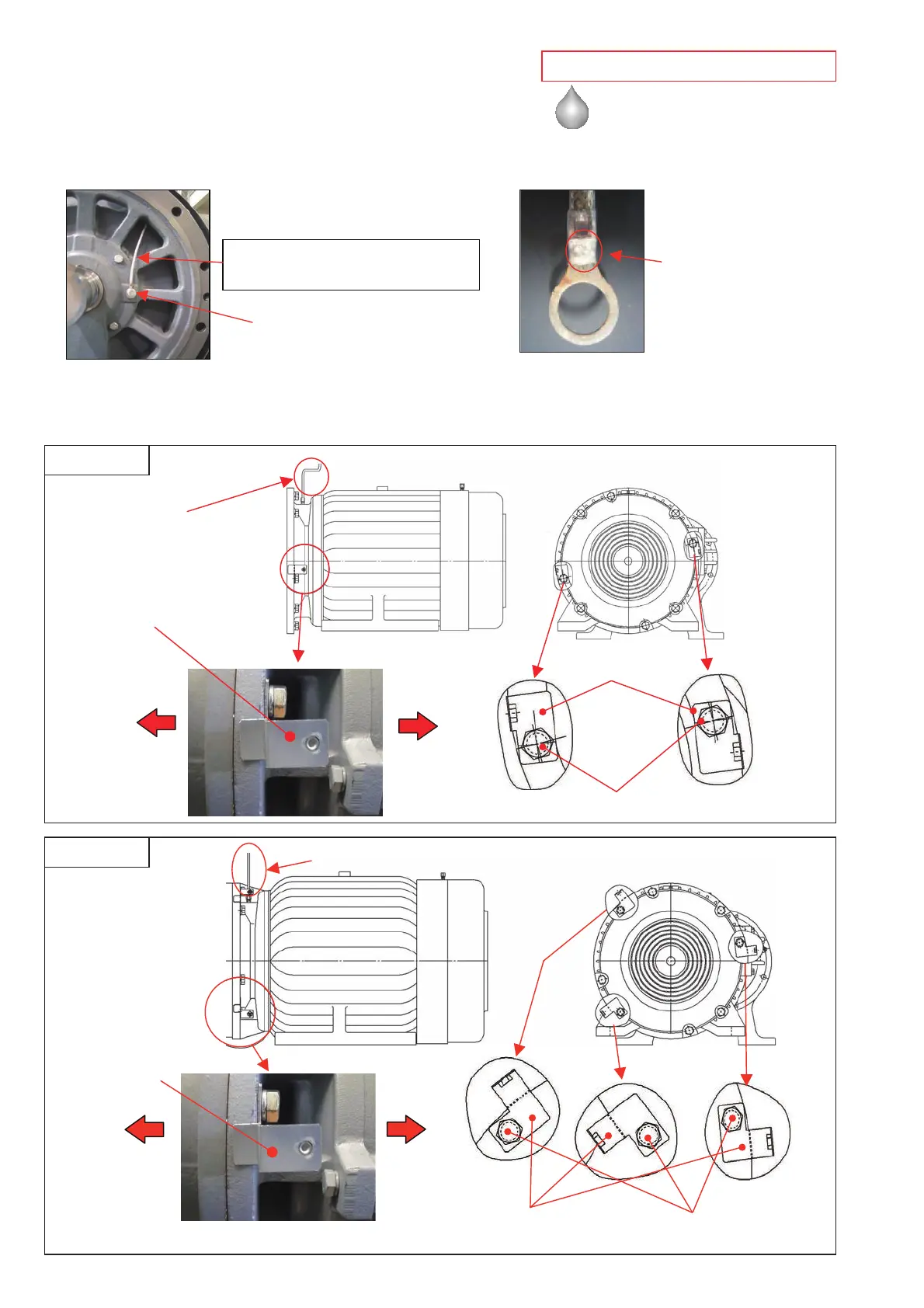

4.14 The procedure to attach the motor cover
Water-Cooled
(1) Fixed the thermostat on the DE side of end bracket.
Treat the cable with particular caution.
Grease Supply Pipe
Motor Cover
Fixing bracket
Air End side Motor side
Motor Cover
Fixing bracket
Motor Connection Bolts (M16)
(Figure viewed from motor anti-load side)
Grease
Supply Pipe
Motor Cover
Fixing bracket
Air End side
Motor side
Motor Connection Bolts (M16)
Motor Cover
Fixing bracket
(Figure viewed from motor anti-load side)
55kW
75kW
Be sufficiently careful not to
damage the temperature sensor.
Temperature Sensor
Fixing Bolt (M8×16)
The temperature sensing
portion is brazed into the
portion circled in red. Be
careful not to damage this
brazed portion when
fixing.
(2) Assemble the motor with gear casing by spigot joint and tighten the M16 bolt with motor cover fixing bracket.
Attach the grease supply pipe on the motor DE side.
To Next Page
