Hitachi NEXT Series - Oil Casing and Gear Casing Removal

45
Confidential to Customer

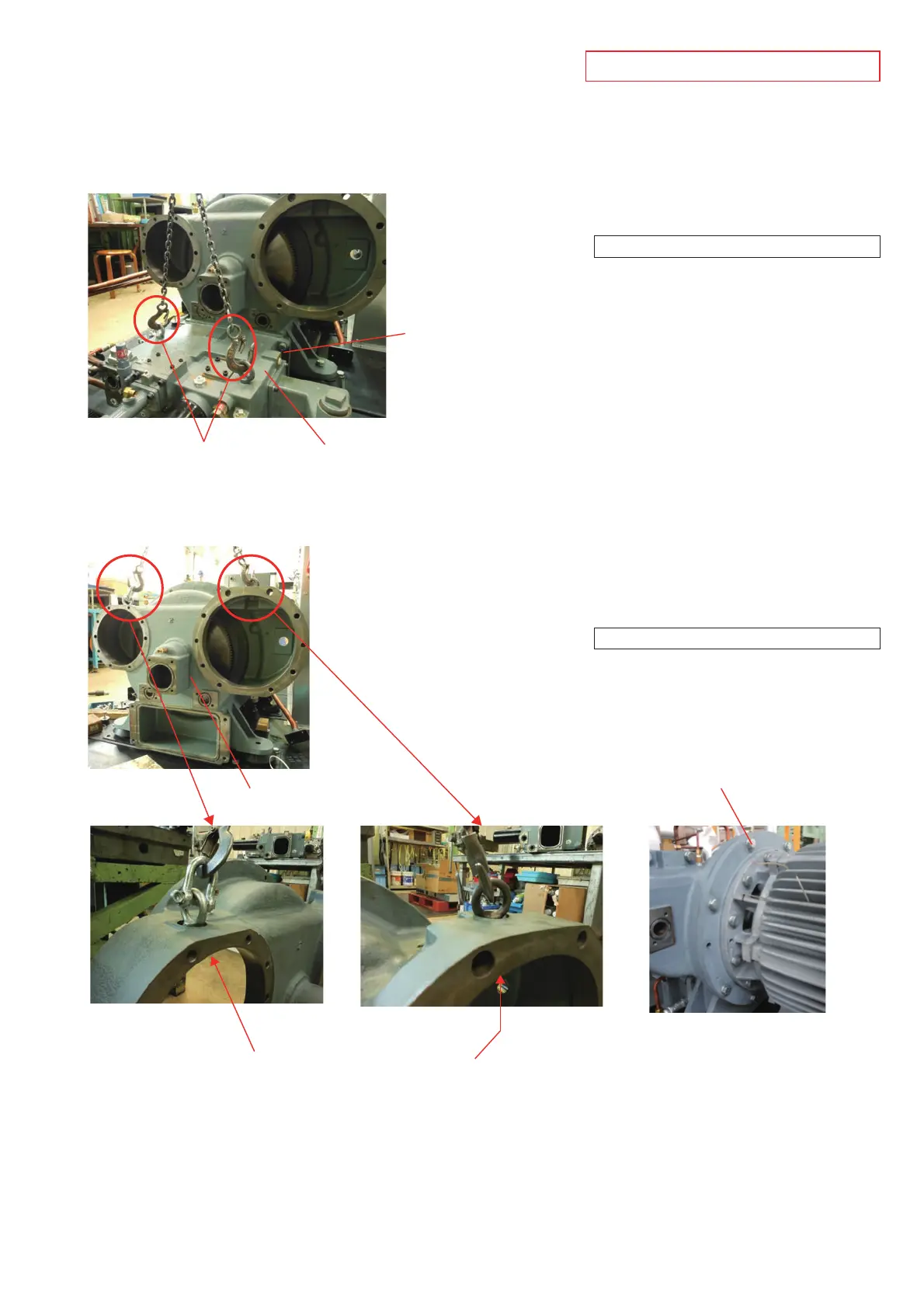

4.18.1 Oil casing removal
① Attach a eyebolt (M12), and hoist the oil casing.
② Remove the bolt, and detach the oil casing.
Oil casing weight ; 73 lbs (33 kg)
Eyebolt (M12)
Oil casing
4
×
M12-50
Gear casing
1st-stage side
2nd-stage side
8×M16-45
Eyebolt shall be fixed by the nut
① Hoist the gear casing using a suspension tool, as
shown in the left.
② Remove the bolt, and detach the gear casing.
Gear casing weight ; 112 lbs (51 kg)
4.18 Oil casing and Gear casing removal
4.18.2 Gear casing removal
