75
898
D79
A92
849
D99
H83
D26
H63
E40
Air-Cooled

14

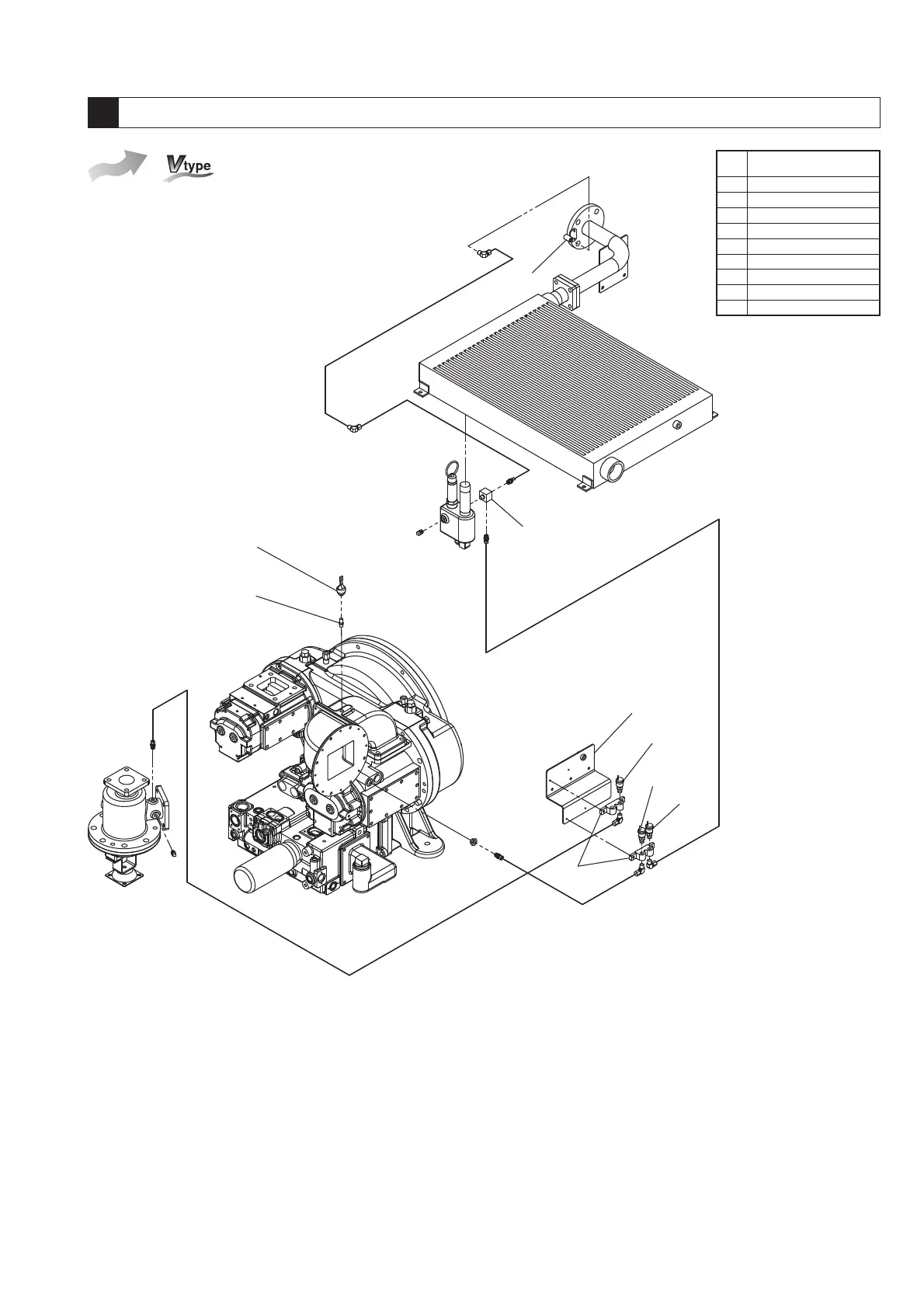

Control Air Pipe
Ref.
No.
Description
849
Support, pressure sensor
898
Pressure Differential Indicator
A92 Seat, sensor
D26
Pressure Sensor (discharge air)
D79 Filter Nipple
D99
Pressure Sensor (interstage)
E40
Seat (1), pressure detecting pipe
H63
Seat (2), pressure detecting pipe
H83 Pressure Sensor (oil)
