79

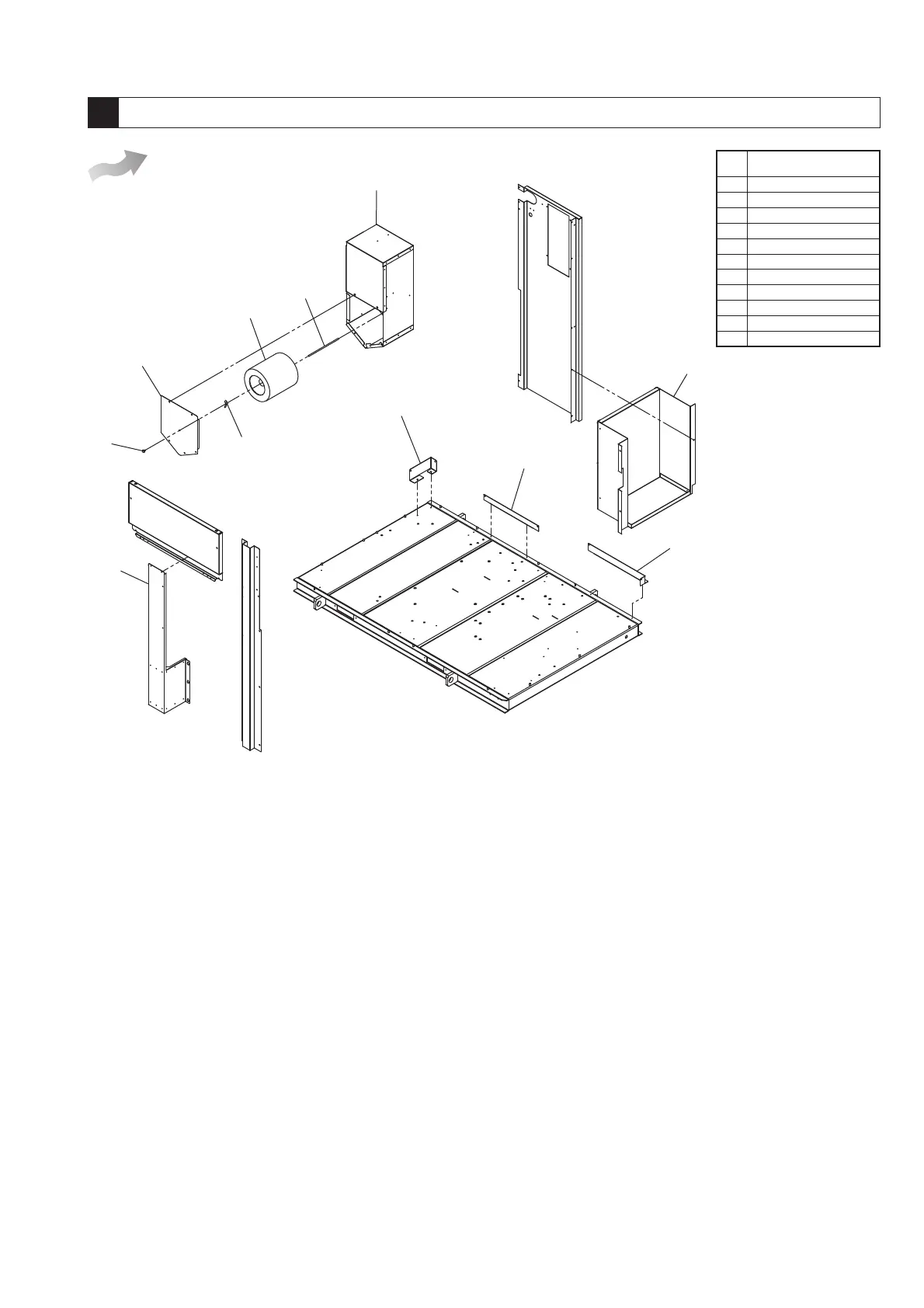

Air-Cooled
15
Enclosure (2)
H95
932
H88
933
917
922
937
921
975
H96
982
Ref.
No.
Description
917 Duct, air intake
921
Cover, air intake filter duct
922 Air Intake Filter
932 Wing Nut
933 Stud Bolt
937 Bolt with assistant
975 Duct, motor
982 Support, Frame (3)
H88 Protective Cover
H95 Support, Frame (1)
H96 Support, Frame (2)
