Hitachi PRIMAIDE - Combination with Primaide 1000 Series

2.2
2 - 3
2.2 Combination with Primaide 1000 Series
In order to perform data acquisition using AID for Primaide, at
least two Primaide 1000 series units for mounting AID and a
USB interface board are required.
An example of connection of AID and an HPLC system is shown
below.
(1) With Two or More Primaide Modules
When combining with a system having two or more
Primaide 1000 series units plus a detector of other than the
Primaide 1000 series, install a USB interface board (IFB) in
one of the units and AID in the other unit.
: e-Line

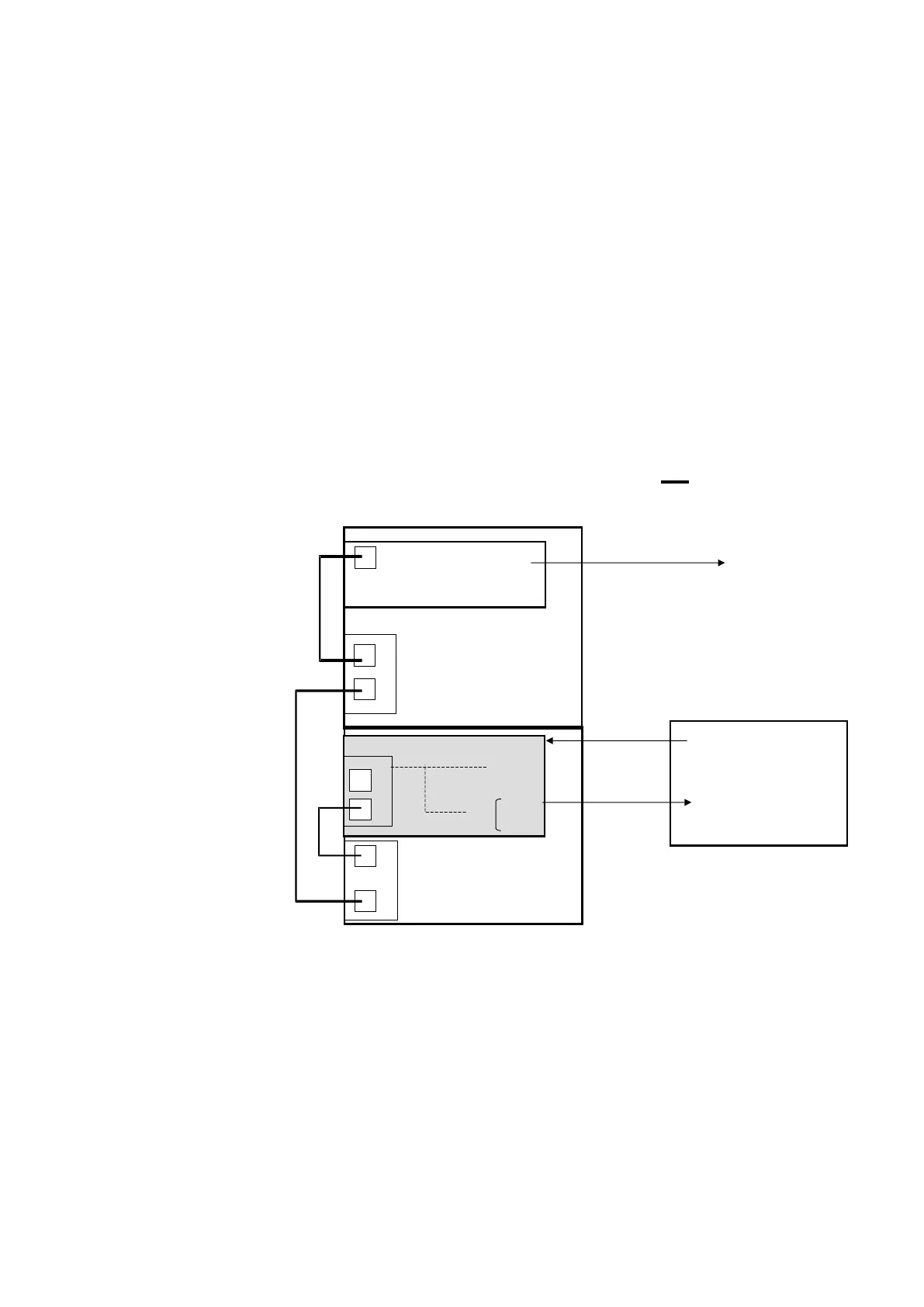

Fig. 2-2 With Two or More Primaide Modules
e-Line connector
PM1210
PM1110
5
V
5
V
IFB
PC
（ChromAssist Data Station/
Primaide System Manager）
Detector of other than
Primaide series
SIGNAL
START
IN
BUSY
START
e-Line connector
e-Line connector
AID
OUT
