(2) With Two or More Primaide Modules in Low-pressure
Gradient System
Since pump A cannot be used as a power supply unit of
5 V in a Low-pressure gradient system, three or more
Primaide series units are required (so that the e-Line
connector on 5 V supply side of pump A can be used for
synchronization with pump B).
: e-Line

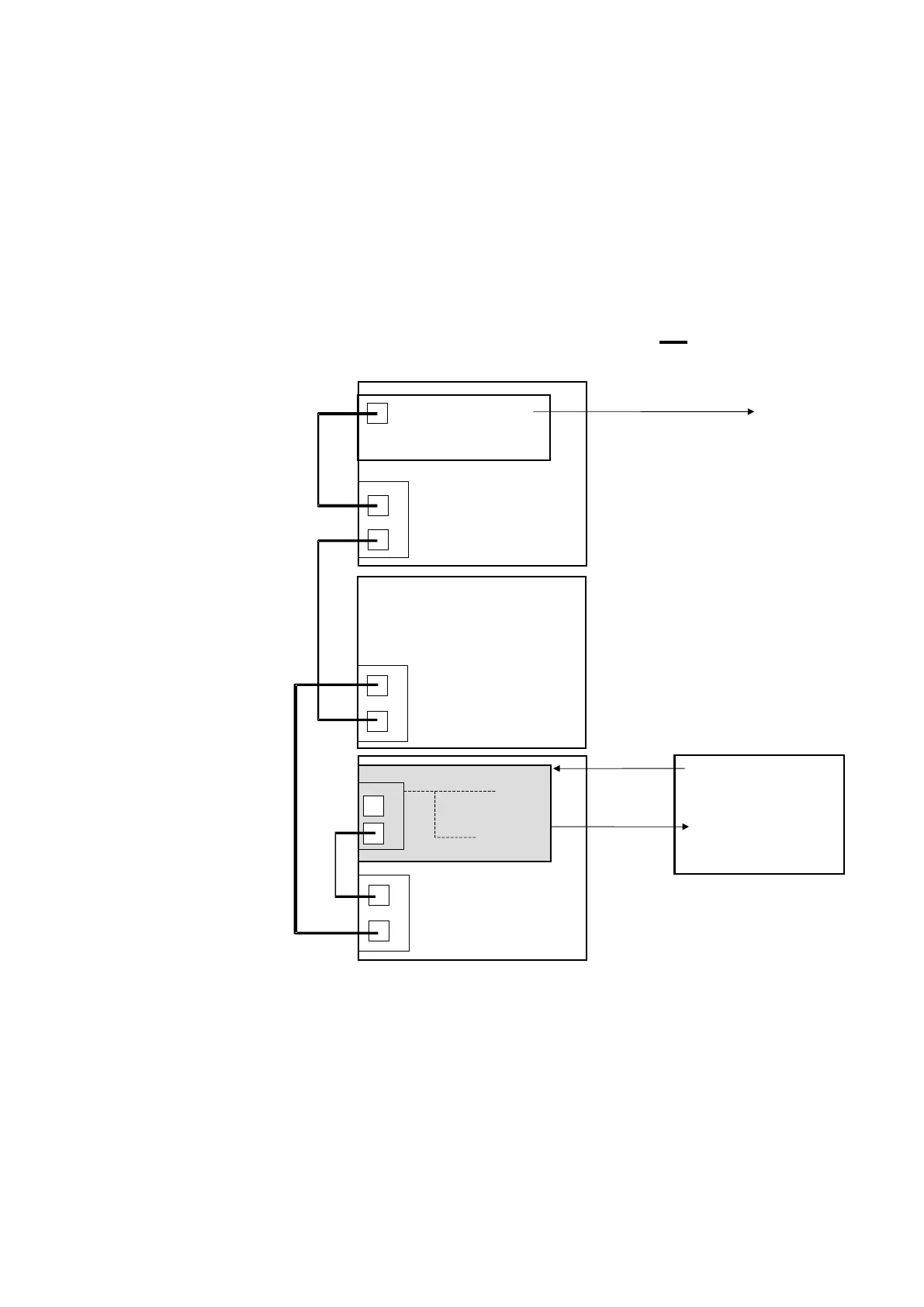

Fig. 2-3 With Two or More Primaide Modules in
Low-pressure Gradient System
