(3) Connection with an L-5200
To use AID for acquisition of marker signal from an L-5200
fraction collector, connect with a dedicated cable (available
at option) for fraction marker signal.
: e-Line

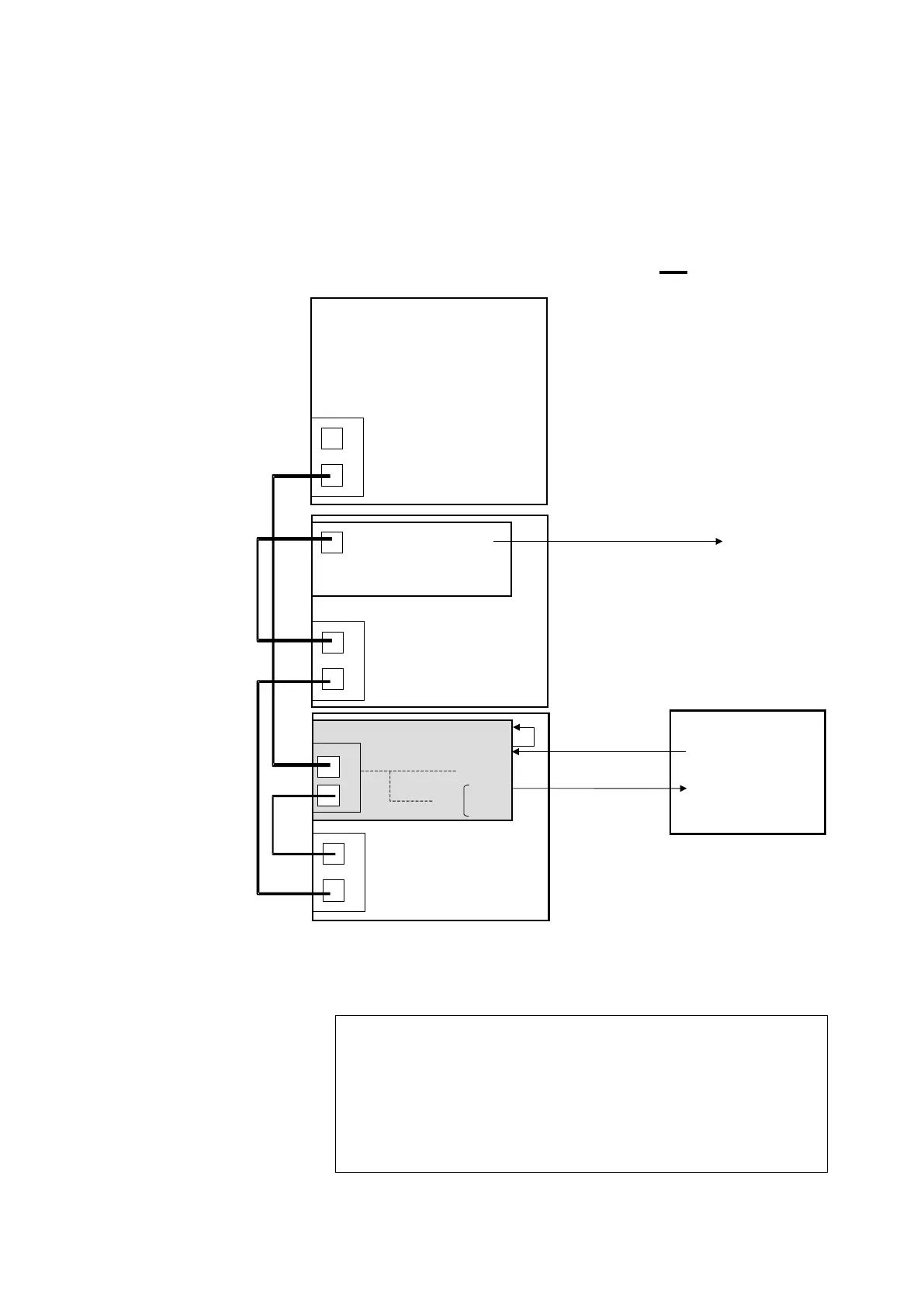

Fig. 2-4 Connection with an L-5200
NOTE: Since the fraction marker output of the L-5200
fraction collector is a no-voltage contact output, it
cannot be acquired correctly as a signal in AID like
an ordinary analog signal. Be sure to prepare a
dedicated cable for fraction marker signal for
acquisition of such signals from the L-5200.
