IEC140000139 V1 EN-US

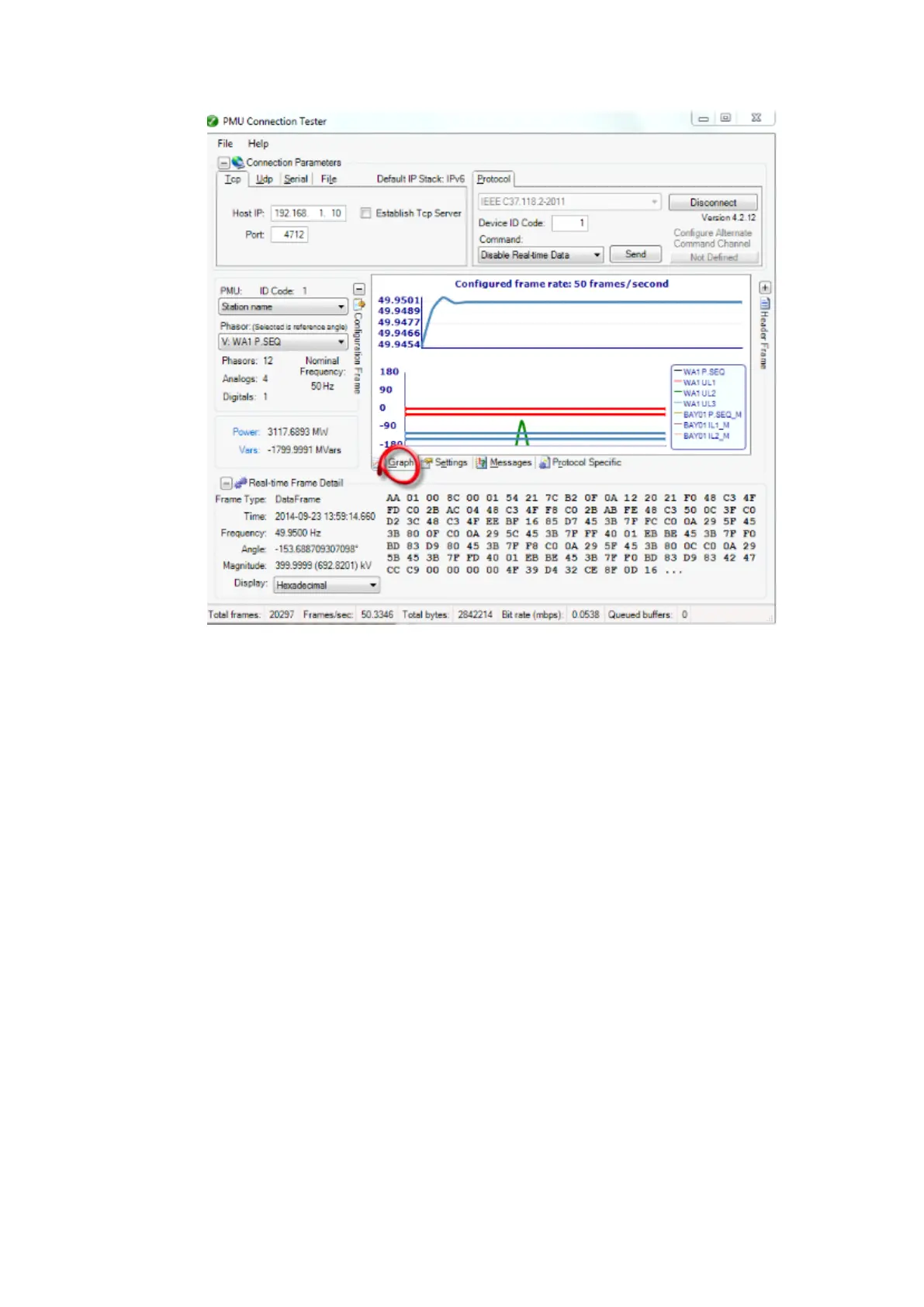

Figure 11: Graphic view over streaming synchrophasor data
• Open the drop-down menu in the Command field. There is a list of commands that can be sent
from the client (PMU Connection Tester) to the PMU. Try different commands and make sure
that the PMU is receiving and responding to them.
Section 9 1MRK 505 378-UEN Rev. K
Establishing connection and verifying the IEEE C37.118/1344 communication
72 Line differential protection RED670
Commissioning manual
