11.11.7.5 Negative sequence overvoltage protection LCNSPTOV
GUID-BEF622E8-E133-4346-98D4-EC0732878937 v2
Prepare the IED for verification of settings as outlined in section
"Requirements" and section
"Preparing for test" in this chapter.
11.11.7.6 Zero sequence overvoltage protection LCZSPTOV
GUID-6289688A-6F66-4173-9F49-A67D3E311513 v1
Prepare the IED for verification of settings as outlined in section
"Requirements" and section
"Preparing for test" in this chapter.
1. Connect the test set for three-phase voltage injection (L1, L2, L3) or residual voltage injection
(N) to the appropriate IED terminals. This depends on how the IED is fed from the VT.
2. Increase the injected zero sequence voltage and note the operated value (start value) of the
studied step of the function.
3. Decrease the voltage slowly and note the reset value.
4. Connect a trip output contact to a timer.
5. Set the injected voltage to 110% of the operate level in the tested stage, switch on the current
and check the time delay.
6. Check that all trip and start contacts operate according to the configuration (signal matrices).
7. Finally check that start and trip information is stored in the event memory.
Completing the test
Continue to test another function or end the test by changing the TESTMODE setting to Off. Restore
connections and settings to the original values, if changed for testing purposes.
11.11.7.7 Negative sequence overcurrent protection LCNSPTOC
GUID-46AA65BF-07F0-4E2B-B00F-D3B2057093DB v1
Prepare the IED for verification of settings as outlined in section
"Requirements" and section
"Preparing for test" in this chapter.
I E D T E S T S E T
IL 1
IL 2
IL 3
IL 1
IL 2
IL 3
IED
IEC10000013-1-en.vsd
IEC10000013 V1 EN-US

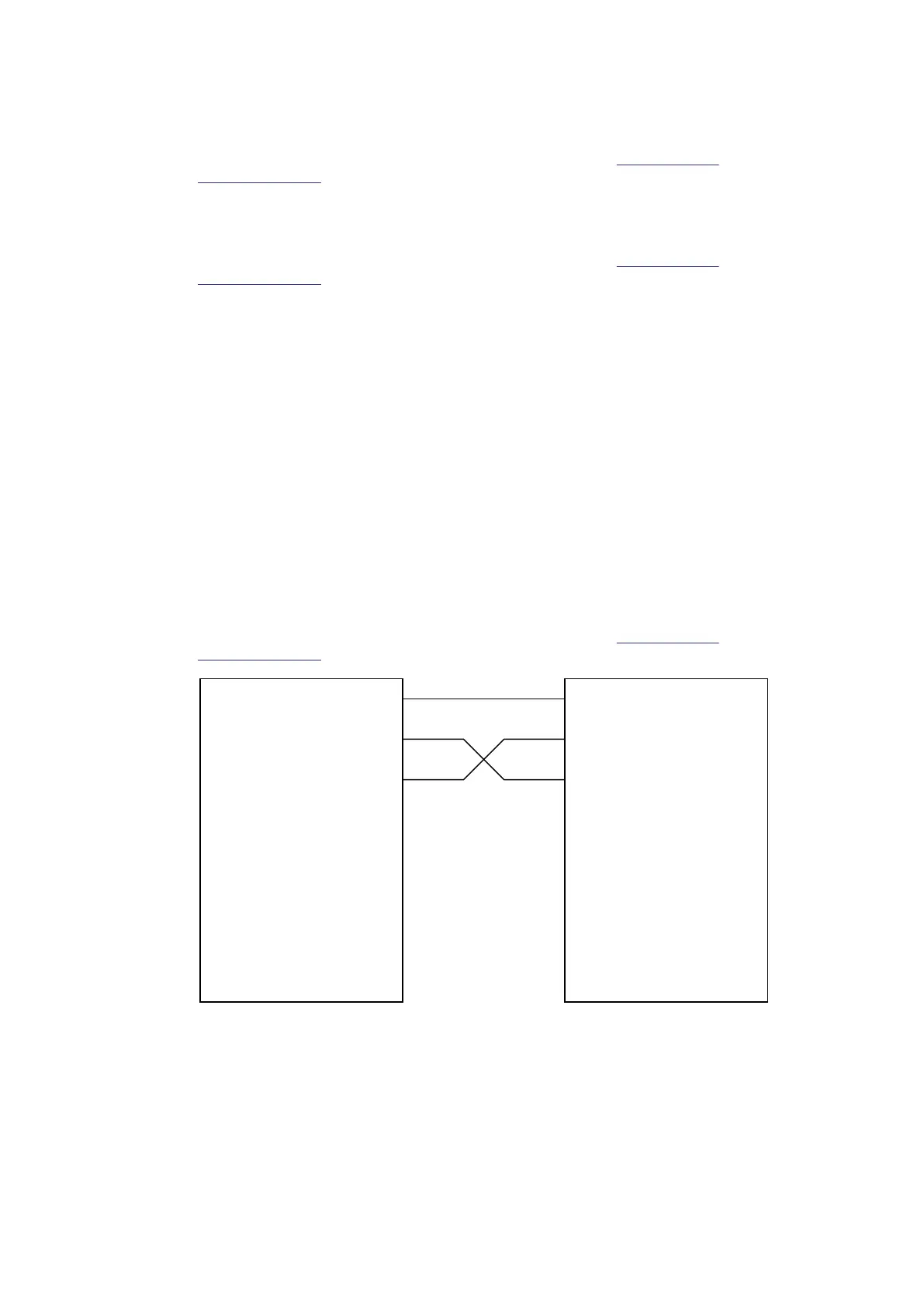

Figure 55: Connection of test equipment to the IED
1MRK 505 378-UEN Rev. K Section 11
Testing functionality by secondary injection
Line differential protection RED670 231
Commissioning manual
© 2017 - 2022 Hitachi Energy. All rights reserved
