IEC140000141 V1 EN-US

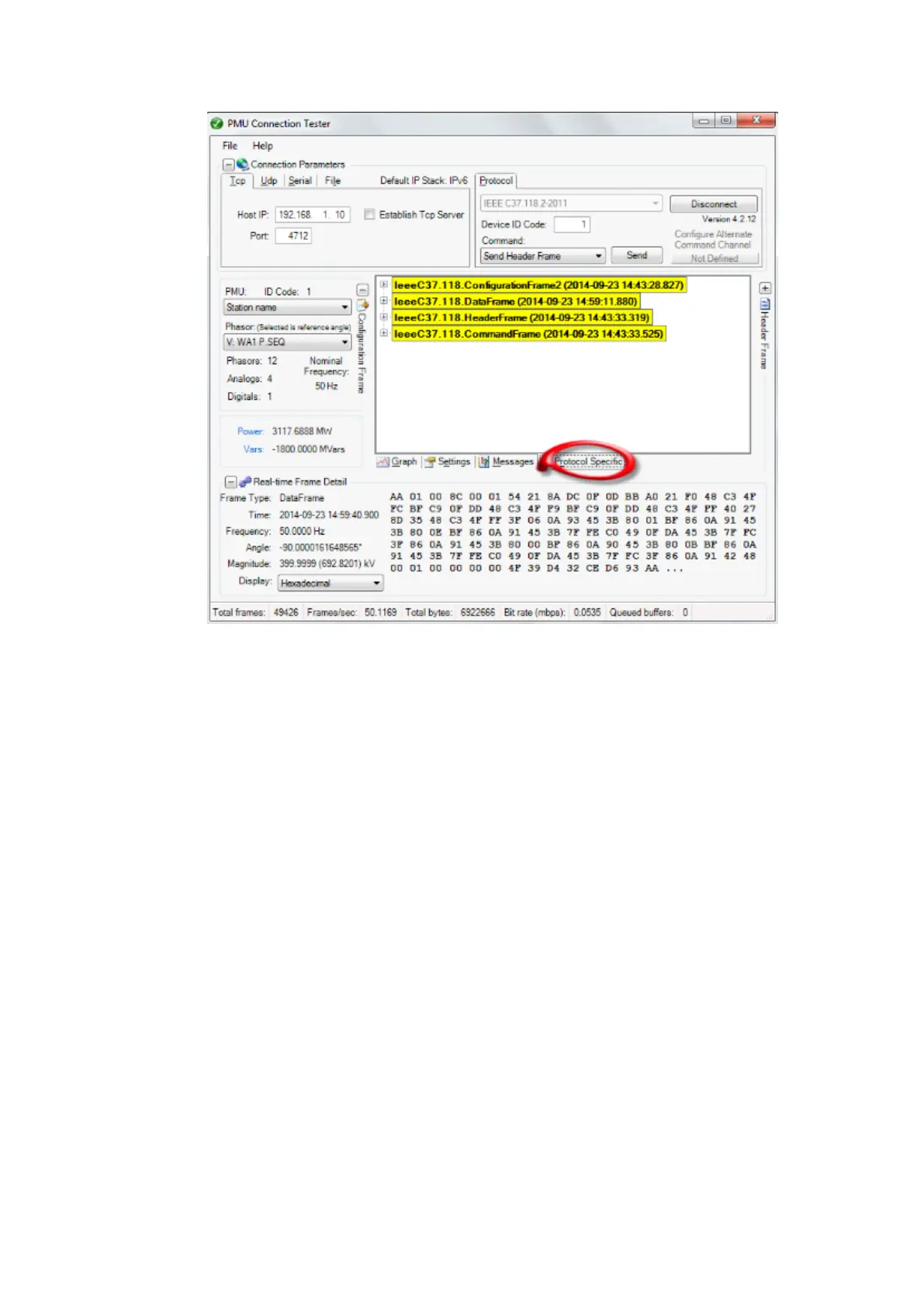

Figure 13: All the IEEE C37.118 message types
• It is also possible to capture the IEEE C37.118 synchrophasor data in an Excel file. This is done
by navigating to File /Capture /Start Stream Debug Capture... The tool will ask to Set Stream
Debug Capture File Name and path to save the capture file.
Section 9 1MRK 505 378-UEN Rev. K
Establishing connection and verifying the IEEE C37.118/1344 communication
74 Line differential protection RED670
Commissioning manual
