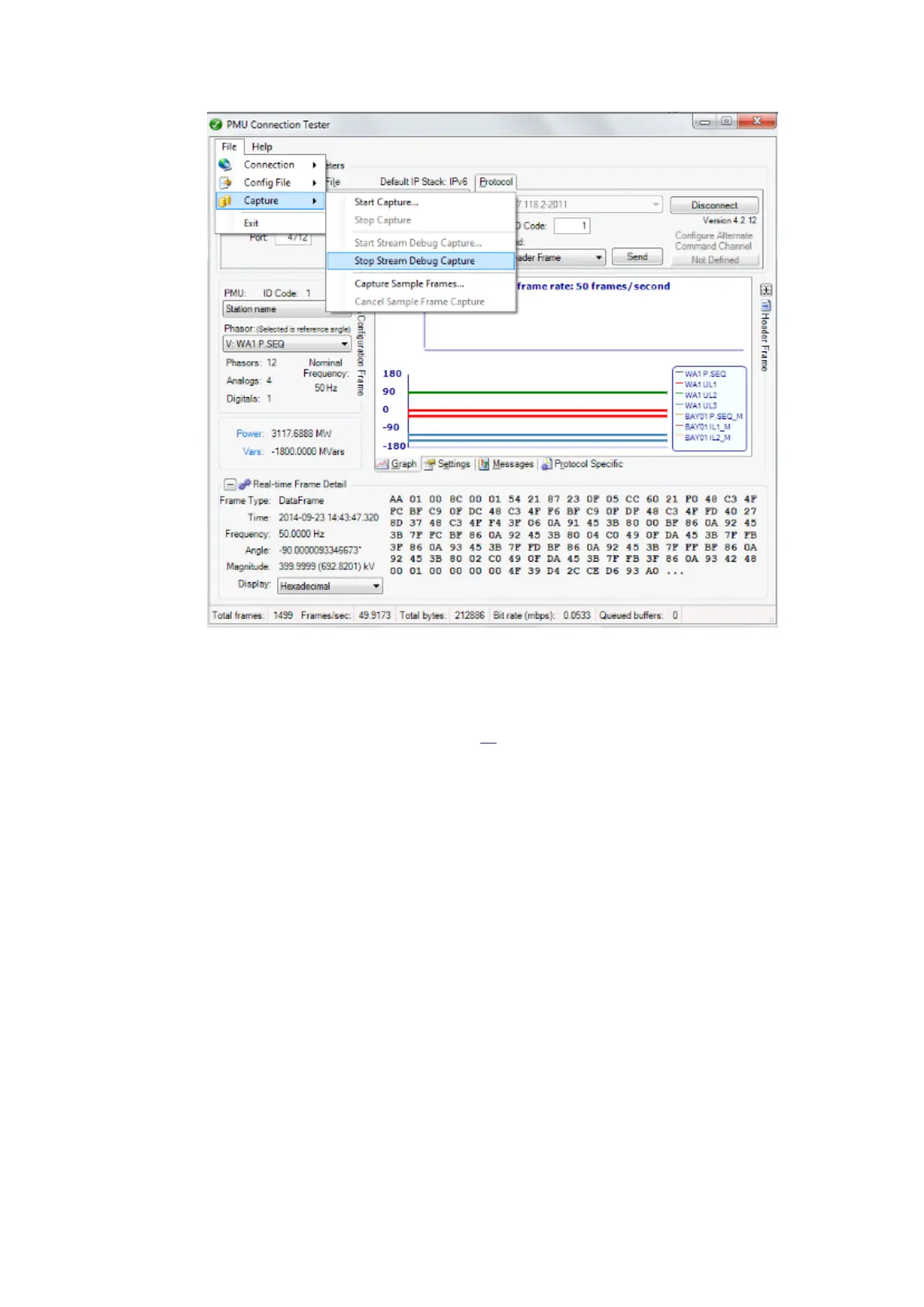

Figure 15: Stop capturing the IEEE C37.118 synchrophasor data
• Open the capture file and observe the captured synchrophasor data. In order to get the Phasor
names on top of each column (See figure
16), the capture process should start before
connecting the PMU Connection Tester to the PMU, i.e. first start the capturing and then click
Connect.
