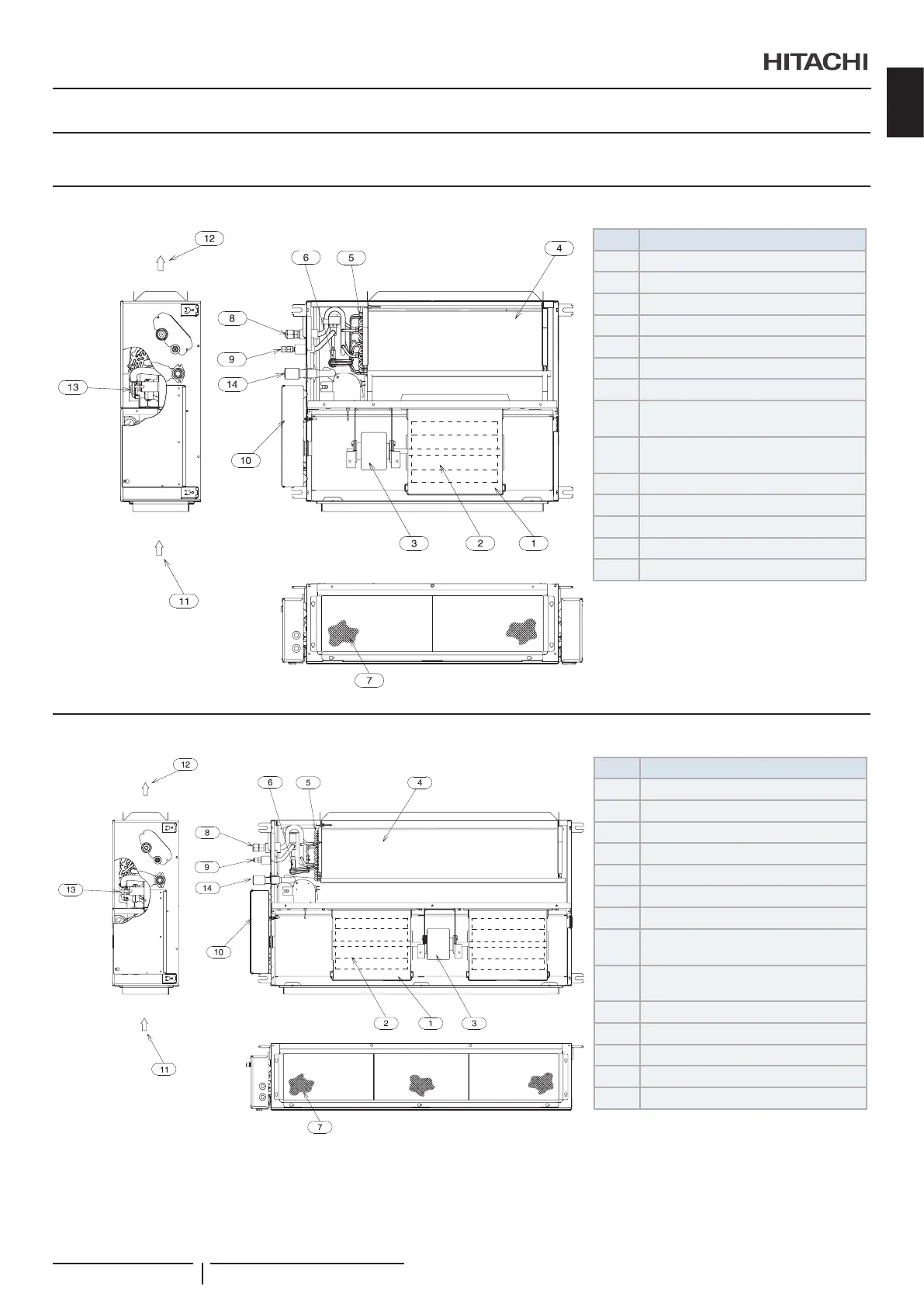

2 NOMBRE DE LOS COMPONENTES
2.1 RPI-(1.5-2.0)FSRE
N.º Nombre del componente
1 Caja del ventilador
2 Ventilador
3 Motor del ventilador
4 Intercambiador de calor
5 Colector
6 Válvula de expansión
7 Filtro de aire
8 Conexión de la tubería del gas
refrigerante
9 Conexión de la tubería del líquido
refrigerante
10 Caja eléctrica
11 Entrada de aire
12 Salida de aire
13 Bomba de desagüe
14 Conexión de la tubería de desagüe
2.2 RPI-(2.5-6.0)FSRE
N.º Nombre del componente
1 Caja del ventilador
2 Ventilador
3 Motor del ventilador
4 Intercambiador de calor
5 Colector
6 Válvula de expansión
7 Filtro de aire
8 Conexión de la tubería del gas
refrigerante
9 Conexión de la tubería del líquido
refrigerante
10 Caja eléctrica
11 Entrada de aire
12 Salida de aire
13 Bomba de desagüe
14 Conexión de la tubería de desagüe
NOMBRE DE LOS COMPONENTES
PMML0528 rev.1 - 02/2021
25
ES
