Hitachi RPK - RPIM - Ducted Indoor Unit; Removal of the Electrical Box

10.6 RPIM - Ducted indoor unit

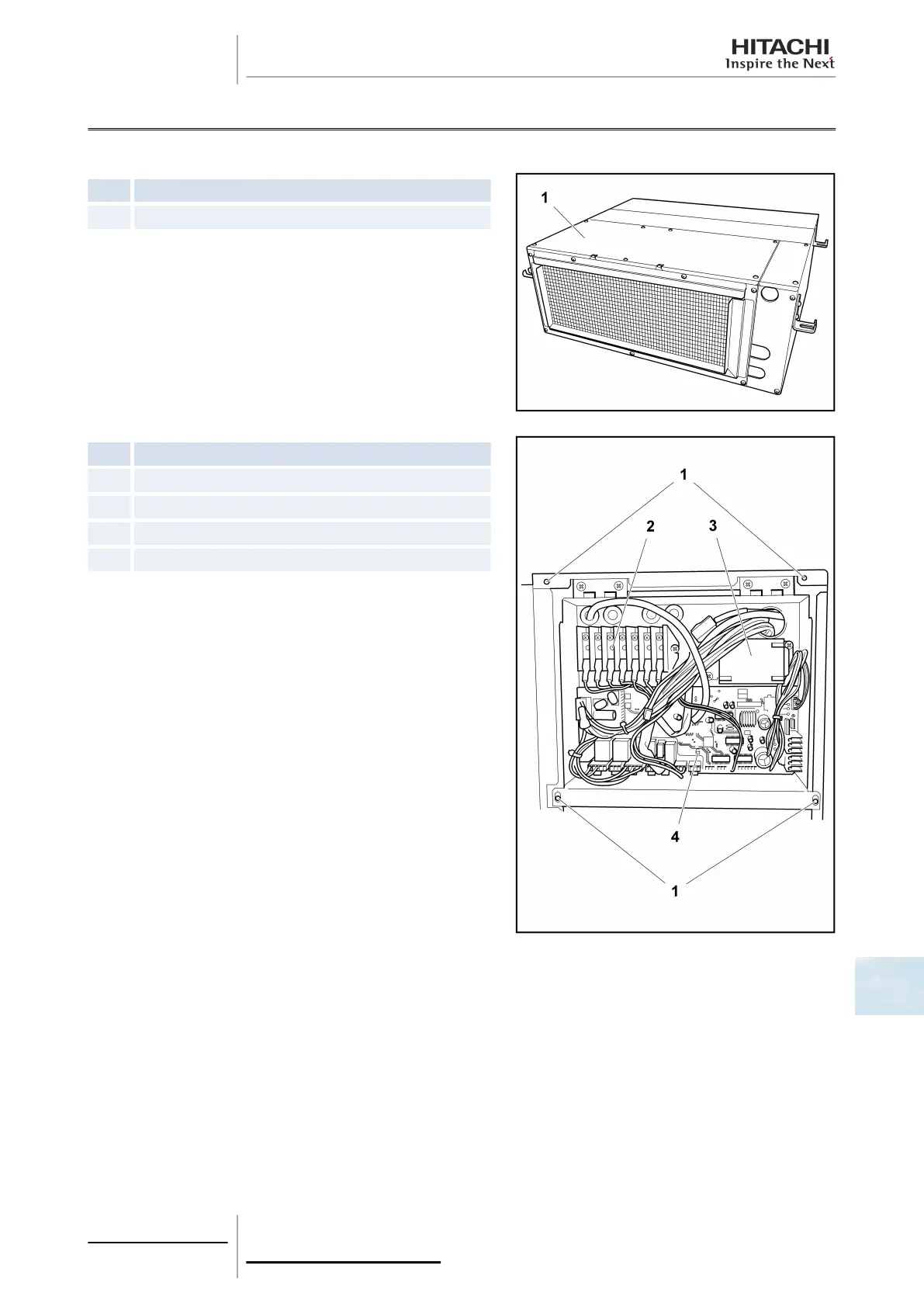

10.6.1 Removal of the electrical box
Nº Part
1 Location of the electrical box cover.
Remove the electrical box cover to access the electrical
components.
Nº Part
1 Set screws
2 Terminal board
3 Transformer
4 PCB
