(5) Reassembly of bending unit (Figs. 12 and 22)
Mount the Cam Cover [6], Turn Table [5] and Center Plate (A) [3] in the reverse of the disassembly procedure.
Before mounting the Center Plate (A) [3], apply grease (TUFREX 251) to the 18 mm dia. hole of Center Plate
(A) [3] adequately. Check that the hole of the Turn Table [5] and the pin of the Cam [8] are properly adjusted
to ensure smooth movement of Roller (B) [30].
(6) Installation of gears
Apply grease (Nippeko SEP-3A) to the meshing parts of First Pinion (B) [55], Second Pinion [47], Third Pinion
[43] and Final Gear [18], and mount them in the reverse of the disassembly procedure. Apply grease
(TUFREX 251) to the Clutch Spring [52], Collar (A) [53] and the boss of First Gear (B) [51] adequately. Check
that the Sensor Holder Ass'y [23] is mounted and the wiring is completed. Secure the Inner Cover Ass'y [13]
and the Gear Cover Ass'y [22] with seven Hex. Socket Hd. Bolts (W/Flange) M5 x 16 [29].
* Perform wiring of the Sensor Holder Ass'y [23] in this step. Wiring in later step is impossible though the
Sensor Holder Ass'y [23] is secured with the Tapping Screw D3 x 12 [24] in the next step (Fig. 13-a).
(7) Installation of the Sensor Gear [56] (Fig. 13)
Mount the Sensor Gear [56] in the reverse of the disassembly procedure shown in 12-1 (5) 2). Pay attention
to the mounting position of the Sensor Gear [56].

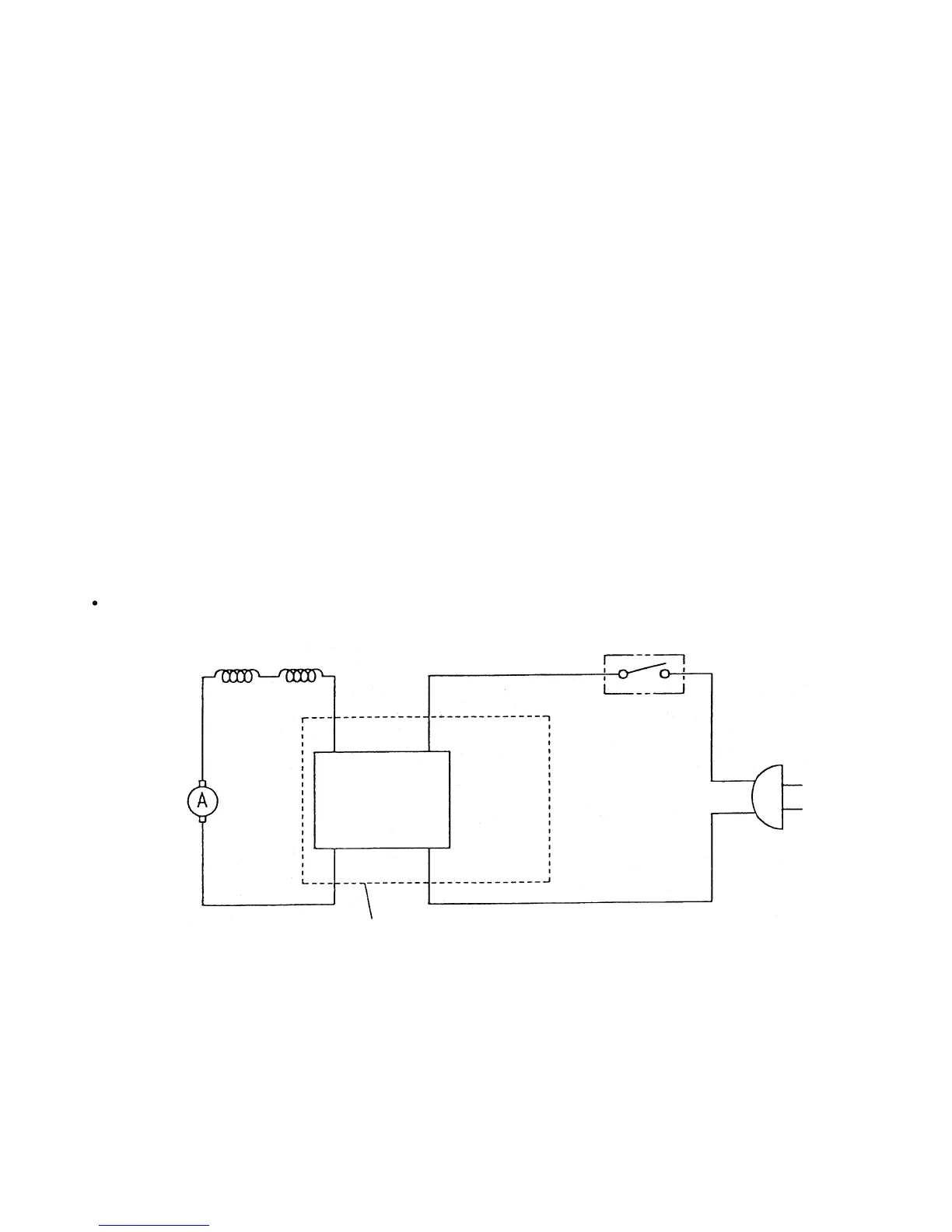

12-3. Wiring Diagram
Be sure to perform wiring connections as indicated in the wiring diagrams.
For products without noise suppressor
Armature
Cord
Stator
Stator
Printed Circuit
Board Ass'y
Switch
Control Circuit Ass'y
Fig. 25
To Next Page
