Hitachi VB 13Y - Confirmation after Reassembly

--- 17 ---
Cord

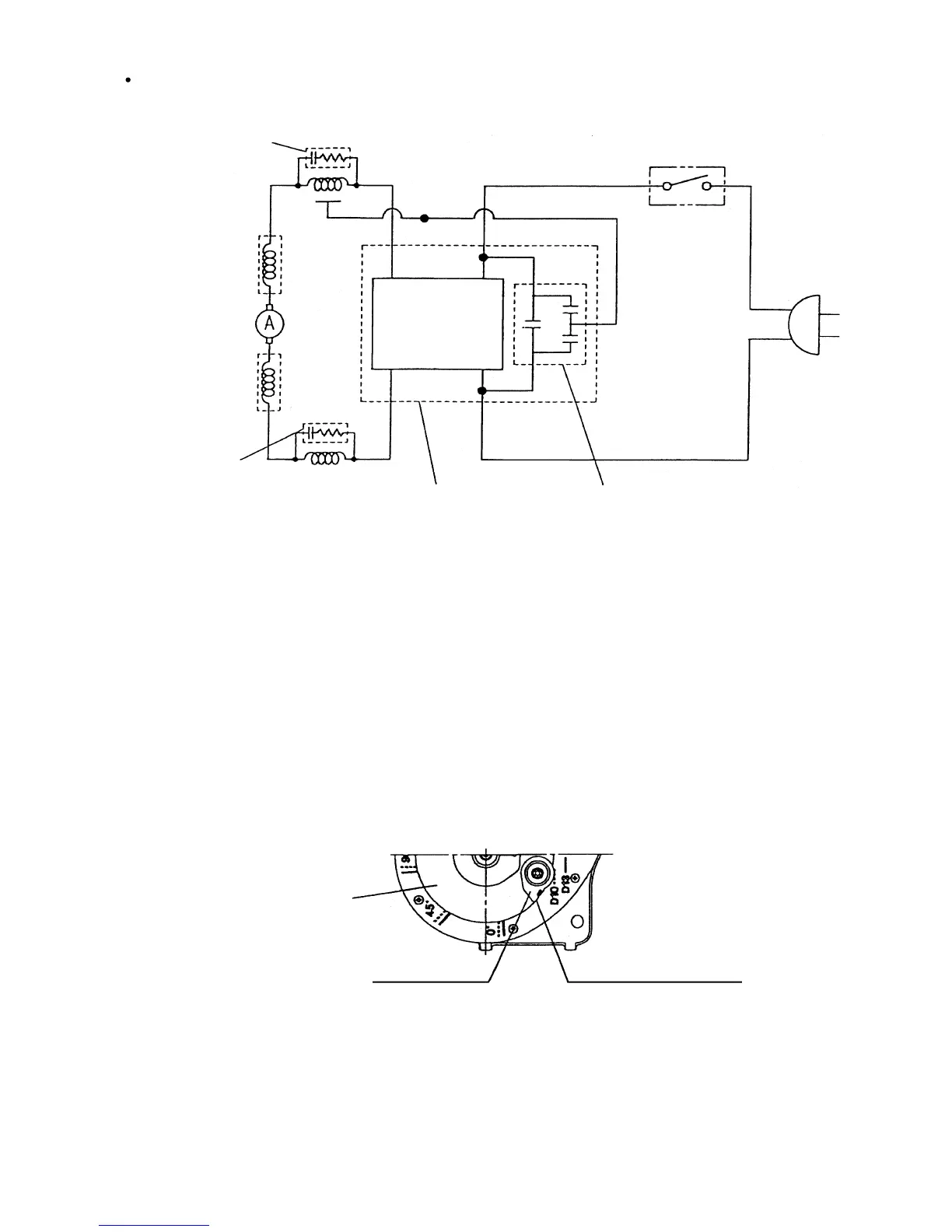

For products with noise suppressor
12-4. Confirmation after Reassembly
(1) Check the accuracy with an angle gauge (Figs. 27, 28 and 29).
1) Adhere an angle gauge to the Turn Table [5] (Fig. 27).
2) Turn the Volume Holder Ass'y [100] (bending angle selector) clockwise until it is locked (Fig. 28).
3) Pull the trigger slightly to run the machine as slow as possible.
4) It is all right if the Turn Table [5] starts backward rotation from the marked line for 13 mm dia. bar with the
marking on the angle gauge aligned (Fig. 29).
5) If the marking on the angle gauge is not aligned with the marked line for 13 mm dia. bar, perform
adjustment according to the next step (2).
<Initial position>
Fig. 26
Fig. 27
Printed Circuit
Board Ass'y
Capacitor
(0.22 µF + 2 x 3300 pF)
Control Circuit Ass'y
CR Unit
(0.022 µF + 5 KΩ)
Switch
Stator
CR Unit
(0.022 µF + 5 KΩ)
Stator
Choke Coil
8 µH
Armature
Choke Coil
5 µH
Angle gauge
Align with the perimeter.
[5]
