OPERATOR'S STATION
1-134

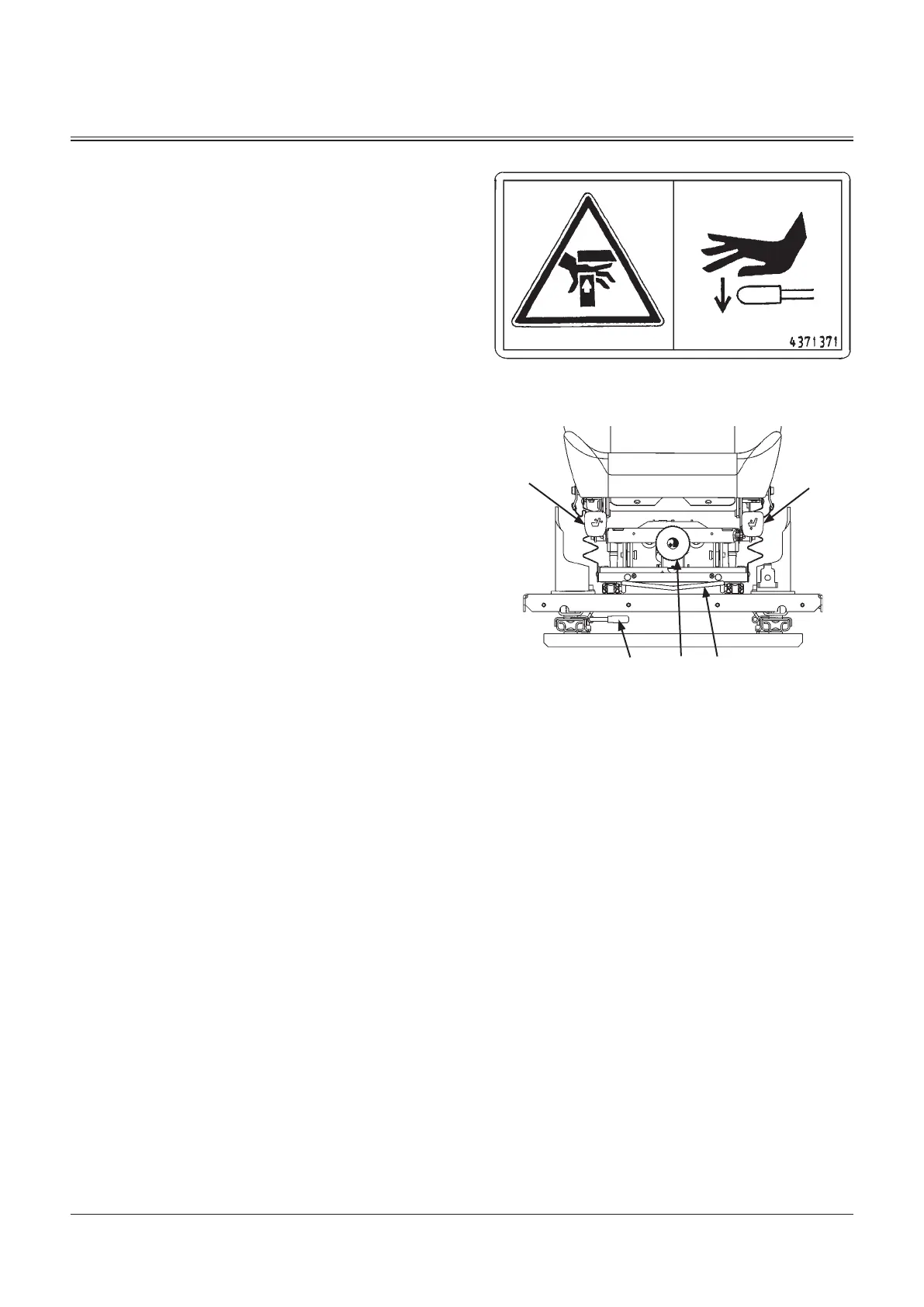

Adjusting Operator's Seat
d
WARNING: Adjust the seat only after lowering the
front attachment to the ground and pulling up the
pilot control shut-off lever to the LOCK position.
Failure to do so may allow the machine to move
unexpectedly if a control lever or pedal is mistakenly
touched with a part of the body, possibly resulting in
personal injury or death.
d
CAUTION: Avoid possible injury while operating
height/tilt lever (1). When pushing down lever (1), do
not grab it. Fingers may be pinched between lever (1)
and the seat stand. Be sure to push on the upper face
of lever (1) by your palm.
Seat Height and Angle Adjustment
Seat height adjustment range is 60 mm (2.4 in) with steps
every 15 mm (0.6 in) (5 positions in total).
Push down lever (1): to adjust front part of the seat.
Pull up lever (1): to adjust rear part of the seat.
Console and Seat Fore-aft Adjustment
Operate console and seat slide lever (3) to adjust the seat
and both right and left consoles to the desired distance
from the travel pedals and levers. The adjustment range for
seat and console fore-aft is 160 mm (6.3 in) with steps every
20 mm (0.8 in).
Seat Fore-Aft Adjustment
Operate seat slide lever (3) to adjust the seat to the desired
distance from the travel pedals and levers. The adjustment
range for seat fore-aft is 200 mm (7.9 in) with steps every 10
mm (0.4 in).
Suspension Adjustment
Rotate knob (4) to adjust the suspension.
Rotate knob (4) clockwise (+ direction) to increase
suspension stiffness.
Rotate knob (4) counterclockwise (- direction) to decrease
suspension stiffness.
1
5
2 3
4
4
SS-955
MDAA-01-331
