13-15
OPTIONAL ATTACHMENTS AND DEVICES
ATTACHMENT PEDAL

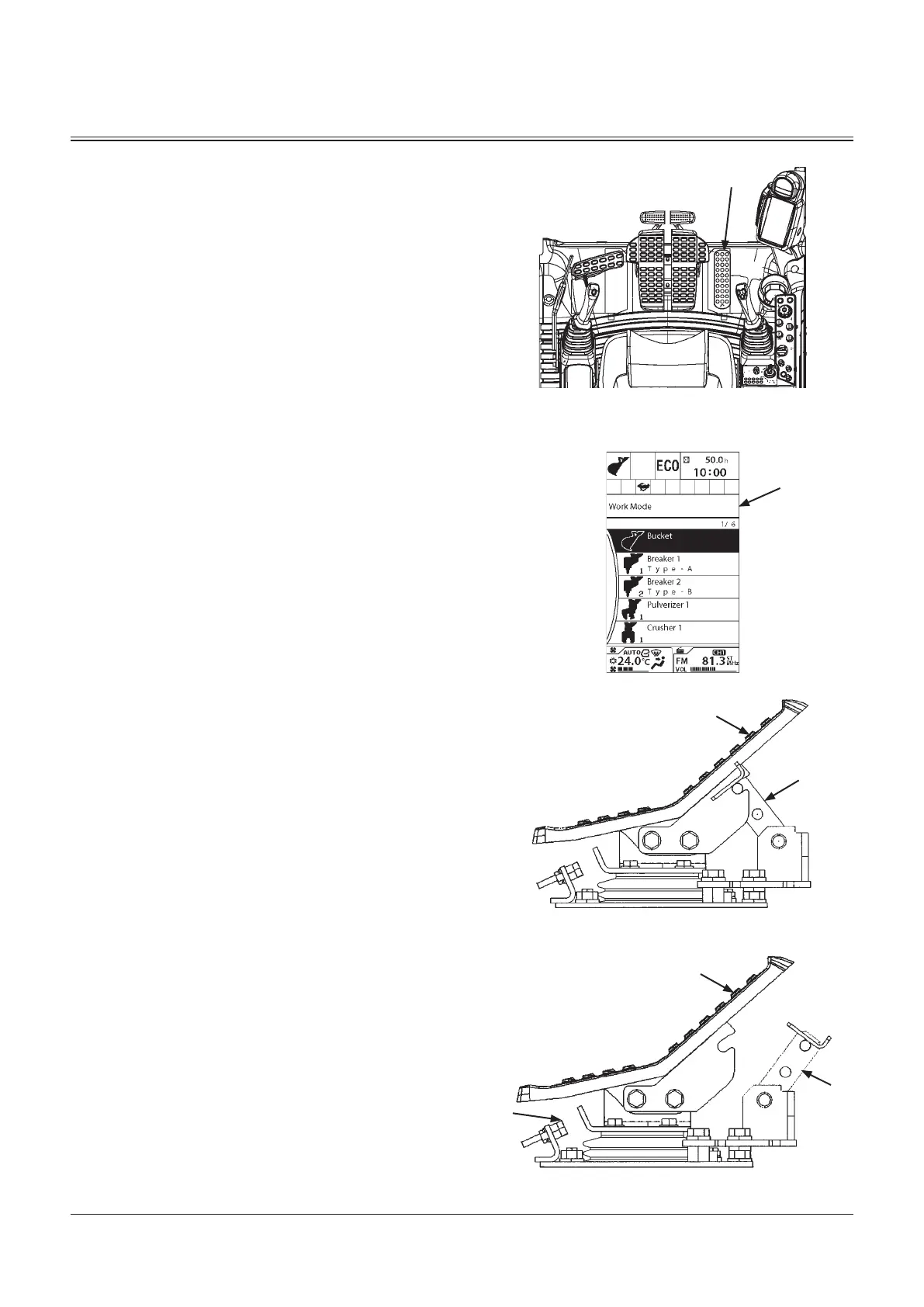

Attachment Pedal (Hydraulic Crusher) (Optional)
The crusher can be operated using attachment pedal (1)
located on the right front of the seat, as illustrated.
d
CAUTION: Be sure to lock attachment pedal (1) with
pedal lock (2) when attachment pedal (1) is not in
use. Do not allow your foot to rest on pedal (1) when
attachment pedal (1) is not in use. When changing the
position of pedal lock (2) pull the pilot control shut-off
lever up to the LOCK position.
1. Select the proper hydraulic crusher icon on work mode
screen (3). Refer to the descriptions about the work
mode on page 5-14 for work mode setting procedures.
2. Move pedal lock (2) forward to the UNLOCK position.
3. Push down on attachment pedal (1) either forward or
backward to open or close the crusher.
4. Remove foot from attachment pedal (1) to stop the
crusher.
5. Always keep attachment pedal (1) locked with pedal lock
(2) when attachment pedal (1) is not in use.
Unlocked Attachment pedal (Crusher)
Locked Attachment pedal (Crusher)
3
2
2
1
1
Fully Tighten
the Stopper
Bolt
MDAA-01-101EN
M1J1-13-012
M1J1-13-006
1
MDAA-05-001
To Next Page
