SPECIFICATIONS
12-9

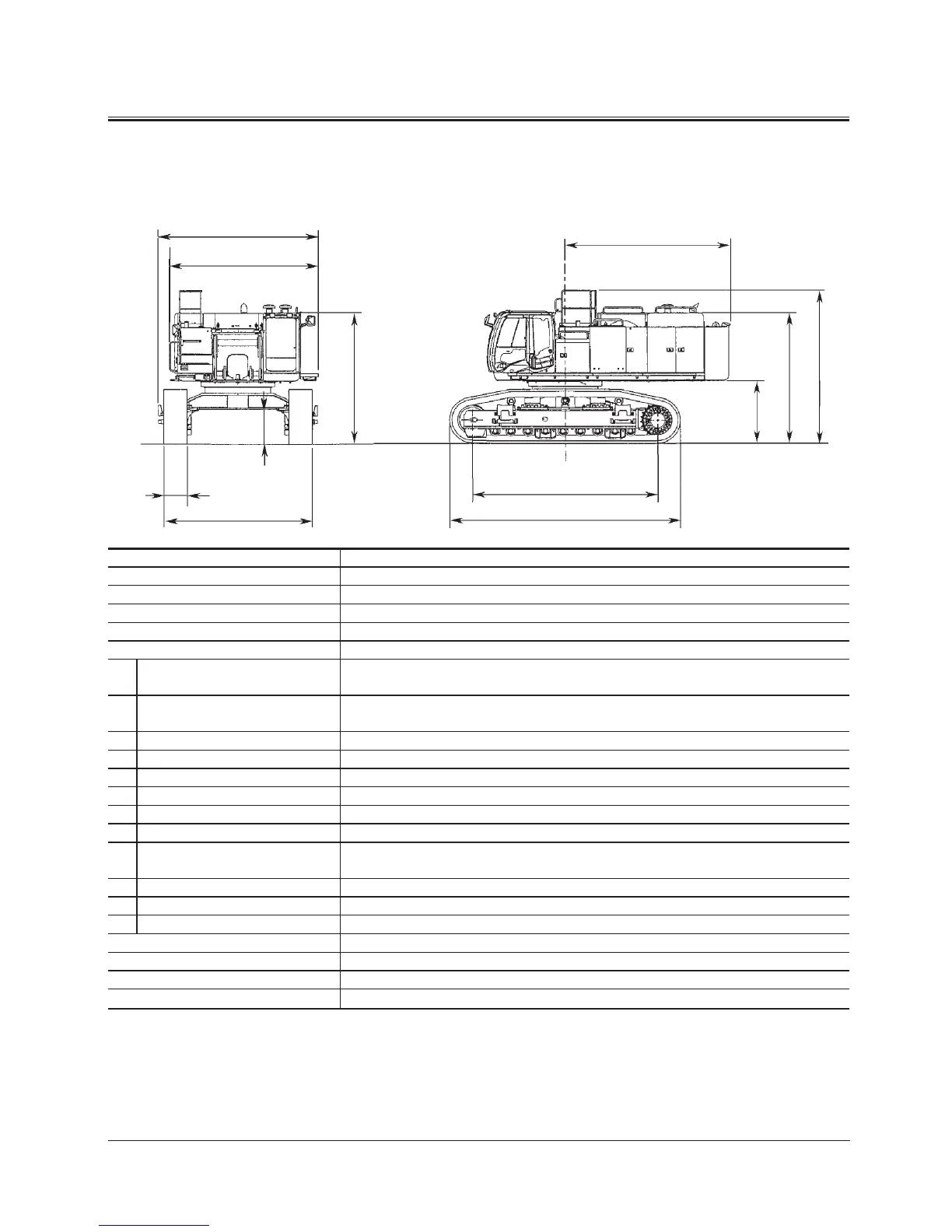

SPECIFICATIONS (BACKHOE)
ZX850LC
-3
Model ZX850LC
-3
Type of Front-End Attachment 3.7 m (12 ft 2 in) Arm
Bucket Capacity (Heaped) PCSA 3.5 m
3
(4.58 yd
3
), CECE 3.1 m
3
Operating Weight 82200 kg (181200 lb)
Base Machine Weight 62700 kg (138200 lb)
Engine Isuzu AH-6WG1XYSA-3 397 kW/1800 min
-1)
(540 PS/1800 rpm)
A: Overall Width
(Excluding Sideview Mirrors)
4430 mm (14 ft 6 in)
B: Cab Height
(Excluding Head Lights)
3630 mm (11 ft 11 in)
C: Rear End Swing Radius 4600 mm (15 ft 1 in)
D: Minimum Ground Clearance *890 mm (2 ft 11 in)
E: Counterweight Clearance * 1680 mm (5 ft 6 in)
F: Engine Cover Height 3550 mm (11 ft 8 in)
G: Overall Width of Upperstructure 4120 mm (13 ft 6 in)
H: Undercarriage Length 6360 mm (20 ft 10 in)
I: Undercarriage Width 4100 mm (13 ft 5 in)/3480 mm (11 ft 5 in)
(Extended/Retracted)
J: Sprocket Center to Idler Center 5110 mm (16 ft 9 in)
K: Track Shoe Width 650 mm (26 in) (Grouser shoe)
L: Overall Height 4200 mm (13 ft 9 in)
Ground Pressure 112 kPa (1.14 kgf/cm
2
, 16.2 psi)
Swing Speed 7.3 min
-1
(rpm)
Travel Speed (fast/slow) 4.1/3.1 km/h (2.5/1.9 mph)
Grade ability 35° (tan
q
= 0.70)
f
NOTE: * The dimensions do not include the height of the shoe lug.
A
G
D
K
I
J
H
B
C
L
F
E
M1JB-12-001
