DISPLAYING OPERATING CONDITIONS
1. When the basic screen displayed, push the menu key and
display main menu.
2. Select operating conditions from main menu by using
keys 1 and 2 . Push the determination key. Then,
the operating conditions screen displays.
3. Push the reset key, and display the data reset confirm
screen.
When reset the data, push the determination key.
f
NOTE: When pushing the back key, return to the previous
screen.
IMPORTANT: Total fuel consumption and fuel
consumption rate depend on the operating
environment and the operation method of
machine.
The values shown on the screen are just for
reference.
There could arise ± 20% of differences
between actual fuel consumption and fuel
consumption which is displayed by the
monitor unit.
4. Push key 6 , and the basic screen displays.

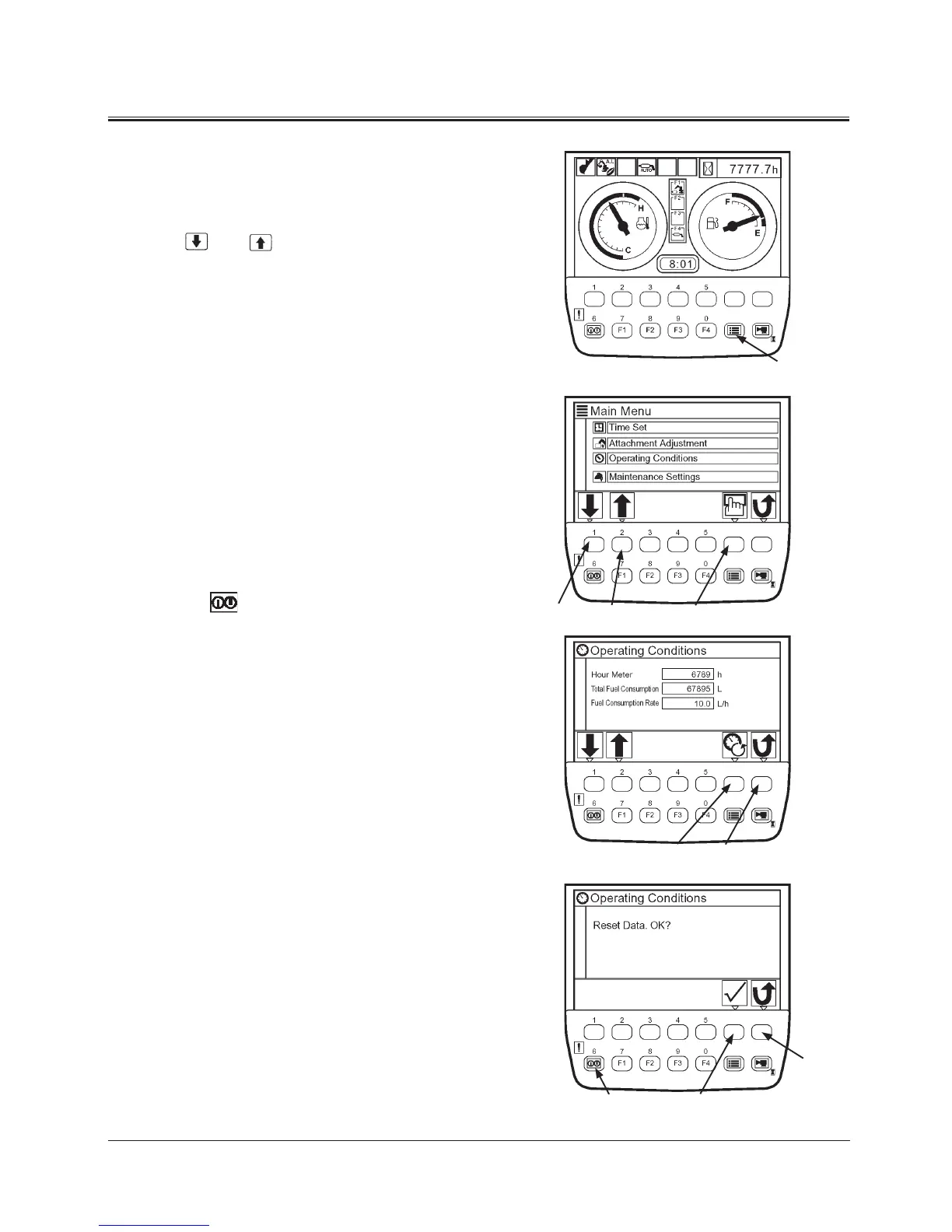

Menu Key
Determination Key
Key 2
Key 1
Back KeyReset Key
Back Key
Determination Key
Key 6
Basic Screen
M1J1-01-002
