OPERATOR'S STATION

1-79

Remaining Time and Maintenance Interval

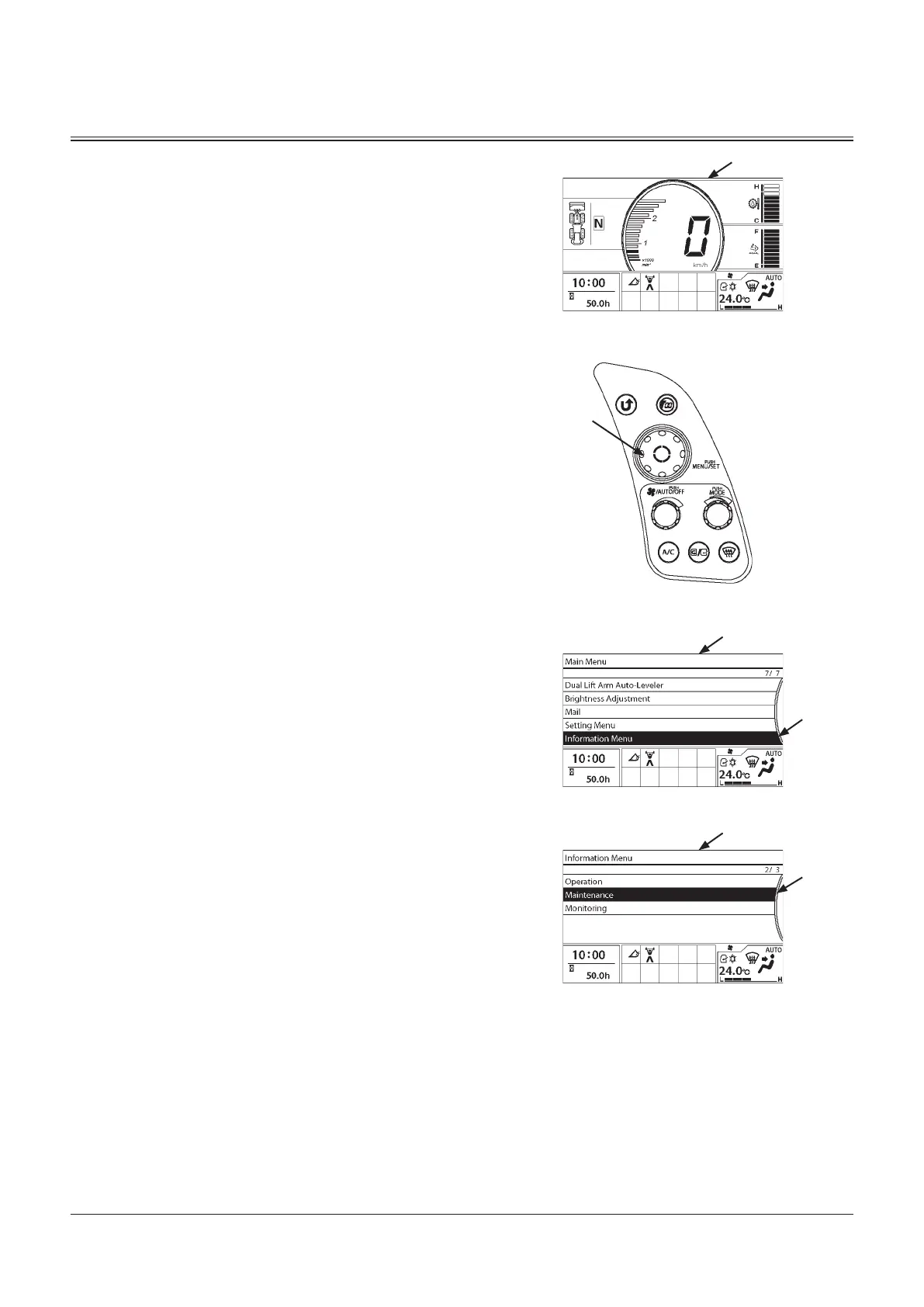

1. Press selector knob (2) while displaying Basic Screen (1)

to display Main Menu screen (3).

2. Rotate selector knob (2) to highlight Information Menu

(4).

3. Press selector knob (2) to display Information Menu

screen (5).

4. Rotate selector knob (2) to highlight Maintenance (6).

MNEC-01-006

MNEK-01-240EN

MNEK-01-245EN

MNEK-01-103EN
