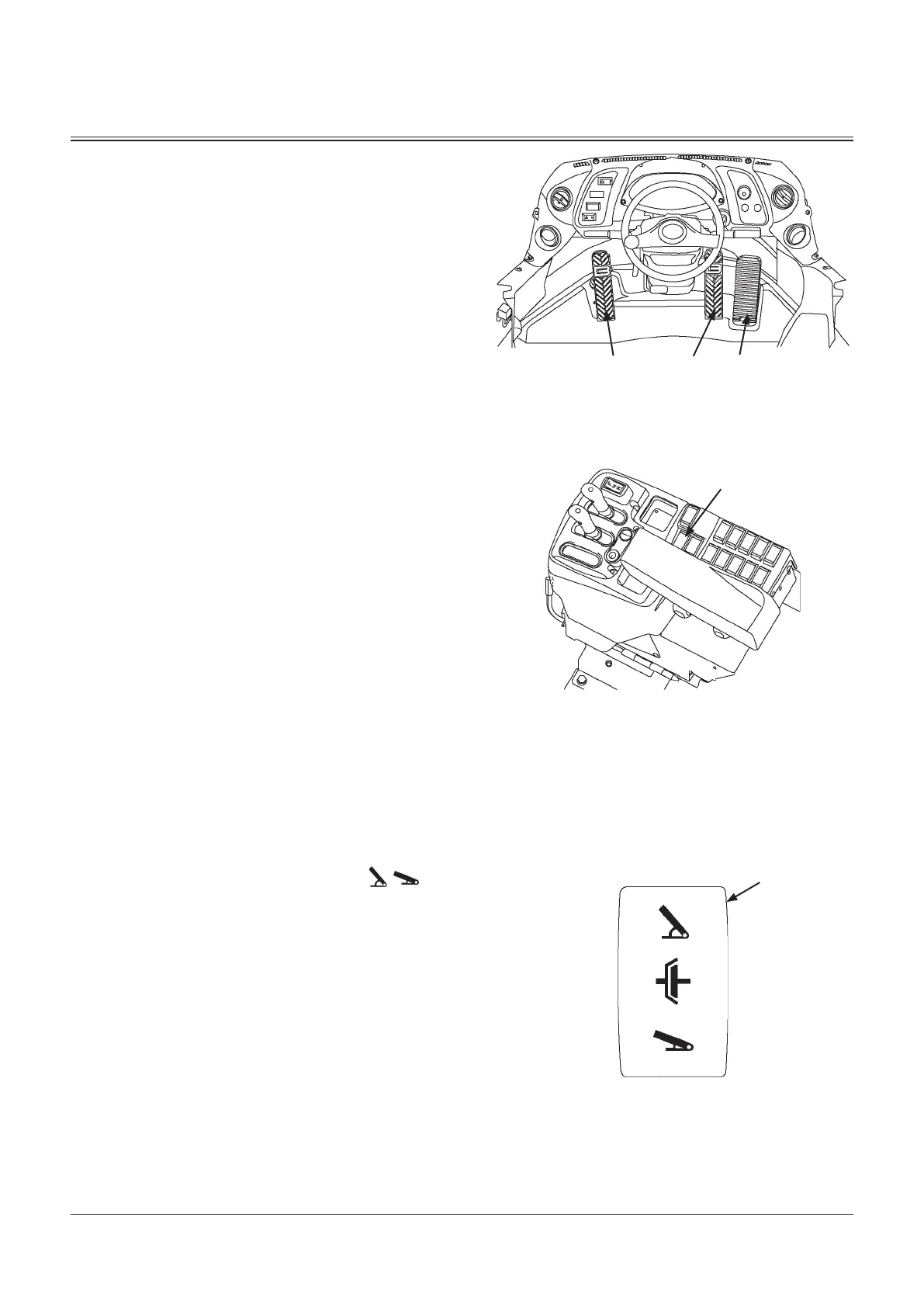

OPERATOR'S STATION
1-94
MNEC-01-036
Fingertip Control Type
4
MNEC-01-526
Accelerator Pedal
When accelerator pedal (3) is stepped on, the engine speed
increases. When released, the engine speed decreases.
f
NOTE: The engine speed may change due to the machine
control regardless of the operation of the accelerator pedal.
Brake Pedal
d
WARNING:
Avoid sudden brake application during travel
operation, possibly creating a hazardous situation.
The machine may lose its balance.
To prevent wear on the brake pads, brake discs and
clutch, and to keep the axle oil from overheating,
keep your feet off the brake pedal except when
needed.
Keep the installation areas around the brake pedals
clean to prevent dust and/or grit from accumulating.
The brake may become inoperable.
Left and right brake pedals (1), (2) can function as the service
brake or the clutch cut off brake by switching clutch cut
position switch (4).
Service Brake
Brake pedals (1), (2) function as normal brake by setting
clutch cut position switch (4) to OFF (Neutral) position. Be
sure to turn clutch cut position switch (4) OFF (Neutral)
before traveling a slope.
Clutch Cut Off Brake
Brake pedals (1), (2) function as clutch cut off brake by
setting clutch cut position switch to the ON , . Use
to stop the machine in the specified position to engage the
machine in loading/unloading work.
1 2 3
MNEC-01-025
4
ON
OFF (Neutral)
ON
To Next Page
