SPECIFICATIONS
12-2

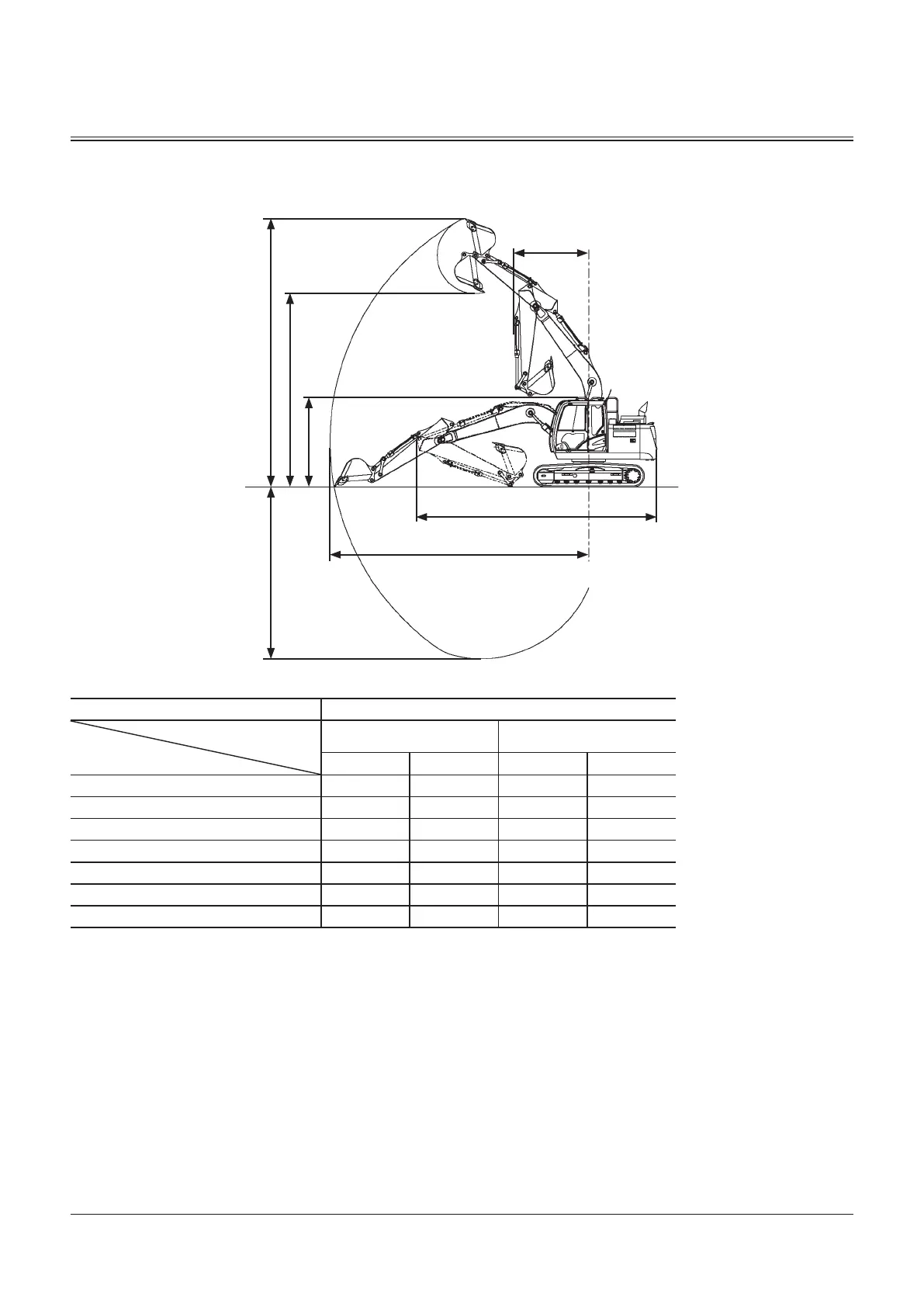

Working Ranges (Grouser shoe)
ZX130-6N
Model ZX130-6N
Category
Item
2.52 m (8 ft 3 in) Arm 3.01 m (9 ft 11 in) Arm
mm ft·in mm ft·in
A : Maximum Digging Reach 8300 27' 3" 8770 28' 9"
B : Maximum Digging Depth *5540 *18' 2" *6030 *19' 9"
C : Maximum Cutting Height *8600 *28' 3" *8930 *29' 4"
D : Maximum Dumping Height *6190 *20' 4" *6520 *21' 5"
E : Overall Height 2870 9' 5" **2870 **9' 5"
F : Overall Length 7700 25' 3" **7710 **25' 4"
G : Minimum Swing Radius 2400 7' 11" 2620 8' 7"
f
NOTE: * The dimensions do not include height of the shoe lug .
** The dimensions asterisked are for transport pin position.
MDC1-12-014
A
G
B
D
C
F
E
