OPERA
TOR'S ST
A
TION
1-18

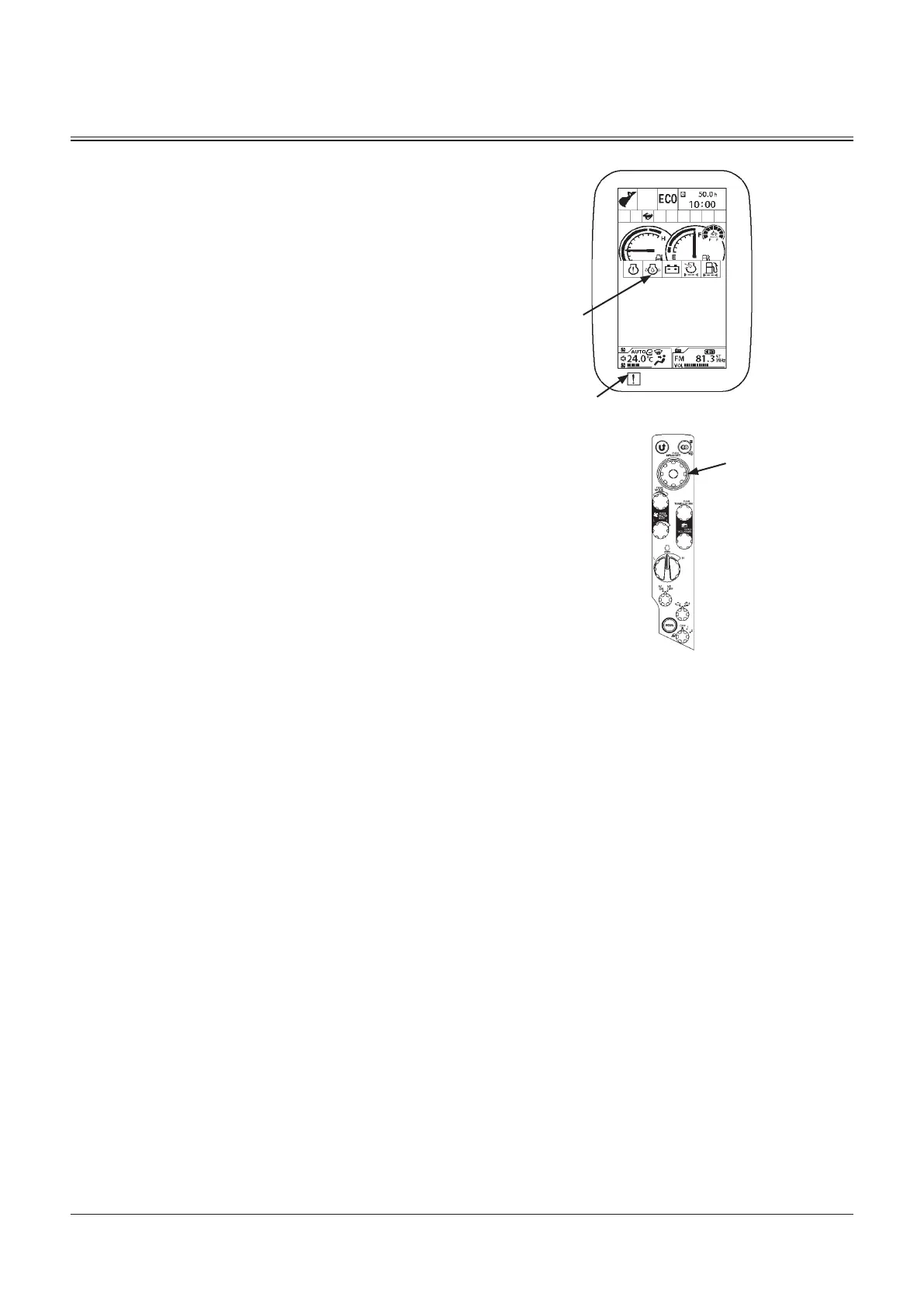

Alarm Occurr
ence Screen
In case any abnormality occurs, alarm marks (1) are display
ed
on the basic screen.
If six or more alarms are generated
, alarm marks (1) can be
scrolled by r
otating switch (2).
1
Indicator
2
MDC1-01-316
MDCD-01-026
81
83
