2. LAN5 and LAK4D Installation
Step 1：

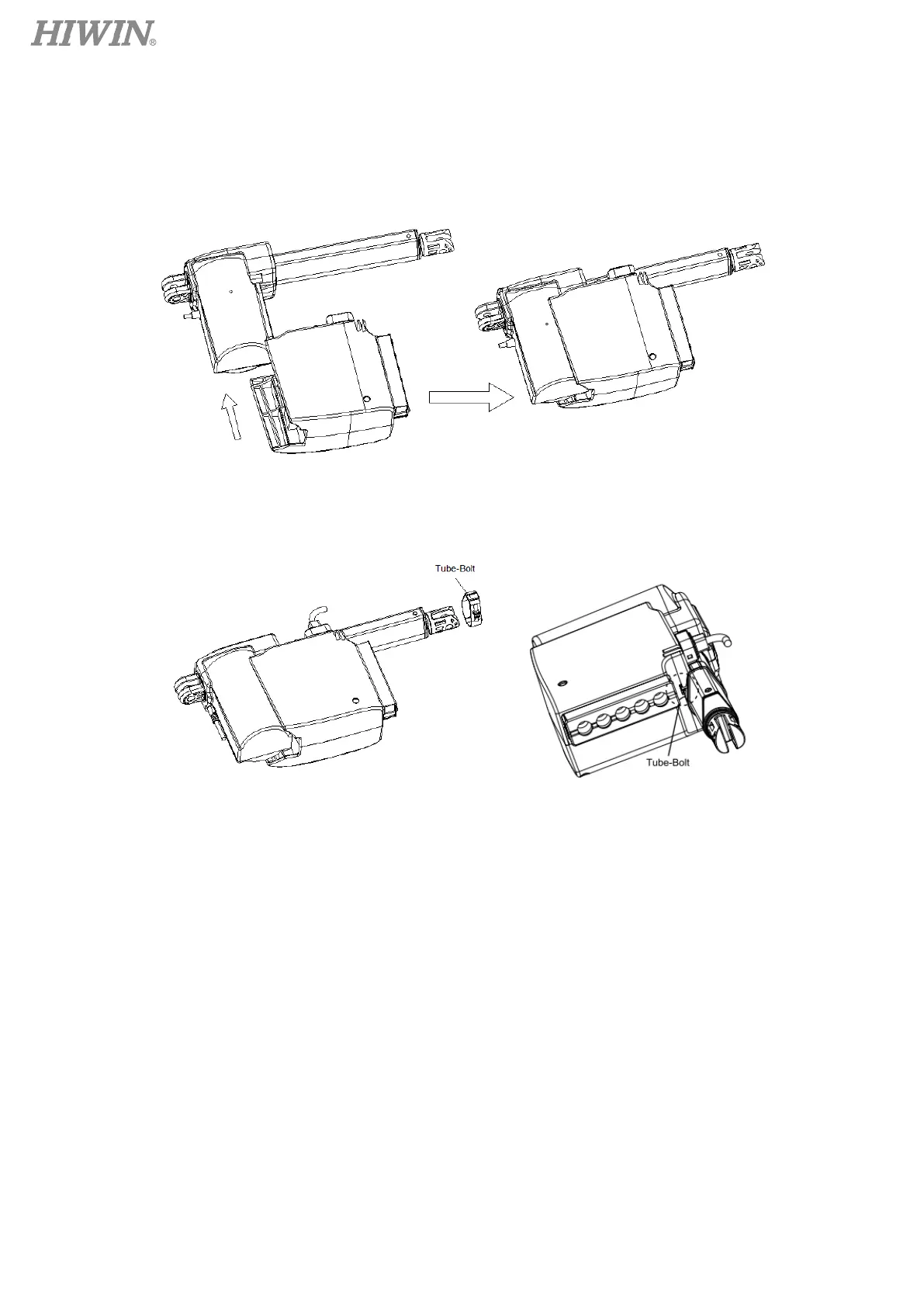

Align a bolt on LAK4D controller with a notch on LAN5 to insert downward(Fig. 1). There is a tube-bolt circled
in the fig.2 to fix an actuator and controller.
Fig. 1
Fig. 2
Step 2：(Release of LAK4D Fixer)
a. Putting the plug of Handset in the socket of Controller（The housing is made ”KP”）and Putting the plug of
Actuator in the socket of Controller（The socket is made ”1~4”）。
b. After inserting connectors of an actuator and a key box，vertically insert back the fixer on LAK4D
controller (A) , and then fasten the up fixer and down fixer on LAK4D controller (Fig. 3). Before inserting
the main power cord，rotate out the locker (B) along the arrow direction to insert power cord (Fig. 3) and
then pull it back (Fig. 3) along the arrow direction.
