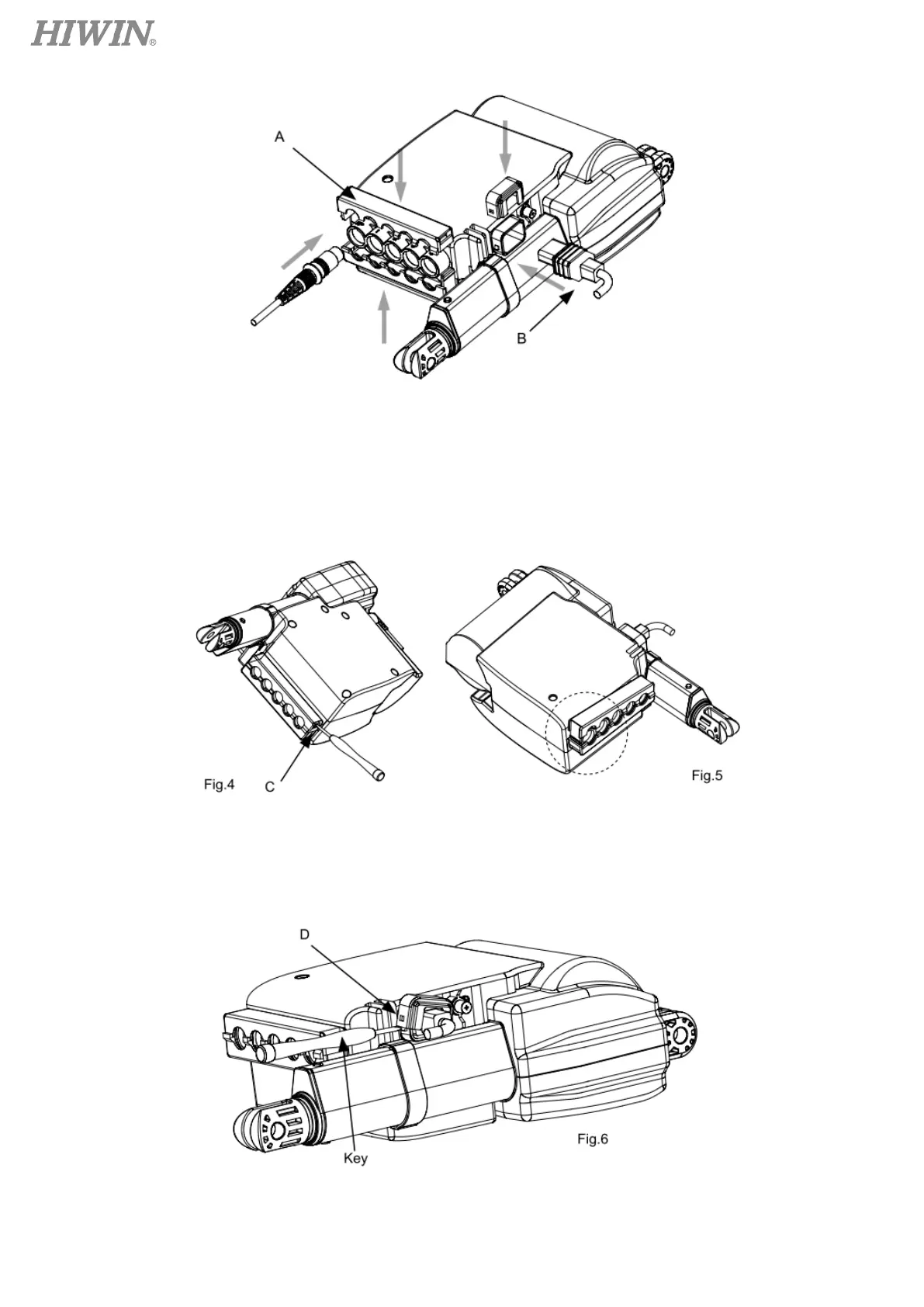

Fig. 3
Step 3：（ Release of LAK4D Fixer）
One side of the fixer can be released (Fig. 5) by strongly pressing both sides of the fixer on LAK4D controller (Fig. 4).
Step 4:
Using a screwdriver to prize the bottom of power cord fixer on LAK4D controller (Fig.6)
