Hiwin S Series Technical Manual

36
C26UE002-2109
[Note 5] When two or more controllers are connected in series and the total cable length is more than 10
meters, the last controller must have the terminating resistor function enabled. The host system needs to be

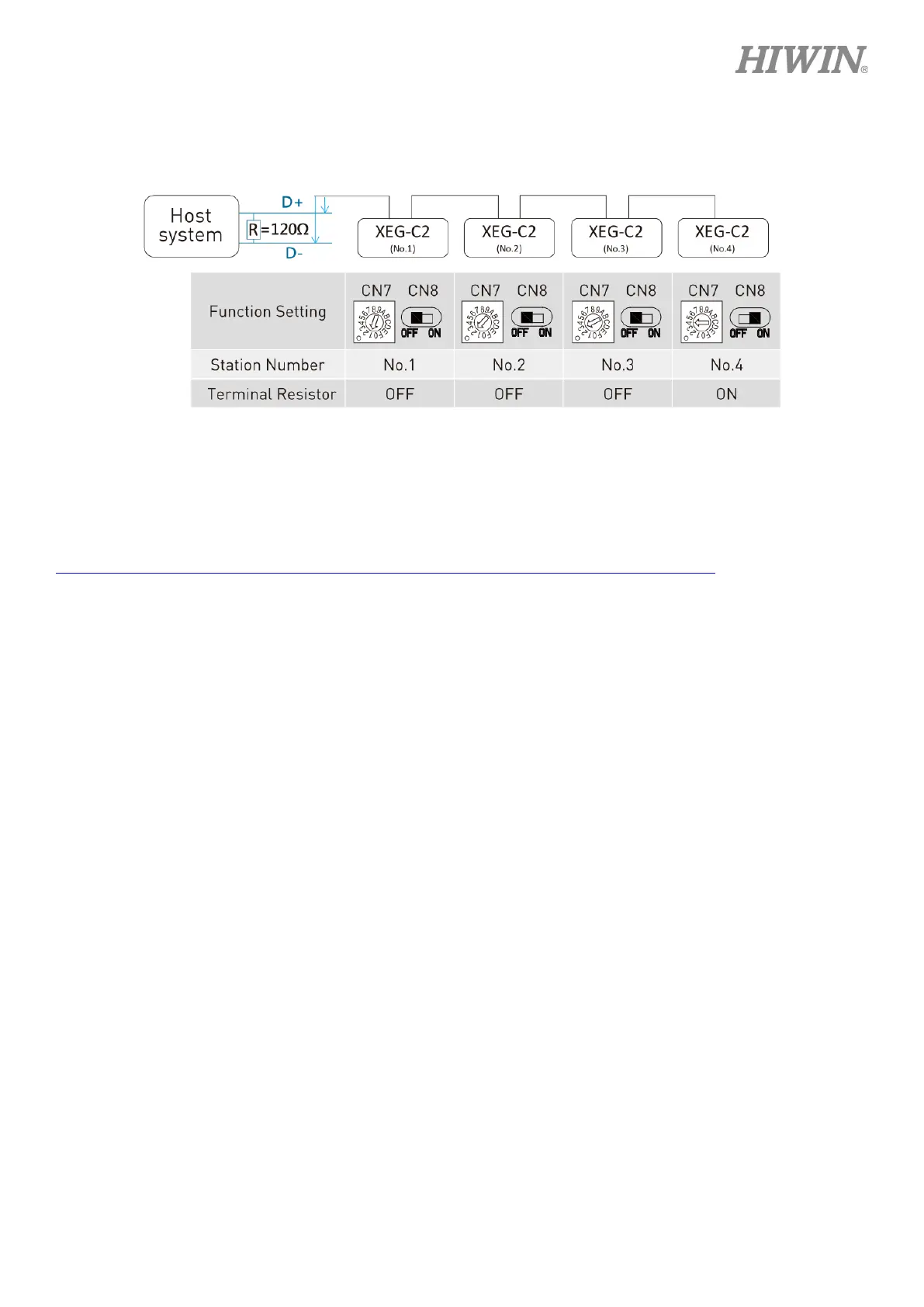

connected with a terminating resistor (120Ω) between the two signal wires. The system wiring is as follows:
[Note 6] In order to reduce signal interference, please ground the controller's locking surface and avoid the
signal cable approaching the high-voltage circuit.
[Note 7] XEG-C2 controller firmware update information, please refer to the following:
https://www.hiwin.tw/download/tech_doc/ee/XEG-C2_firmware_update_user_manual-(E).pdf
