HKC HQ-004 User Manual

HQ-004 Quarter-turn Electric Actuator
Installation Operation& Maintenance Manual
Doc No. : HumG-HQ004-21 Rev0 Page 6 / 9 Valve Automation Leader, HKC

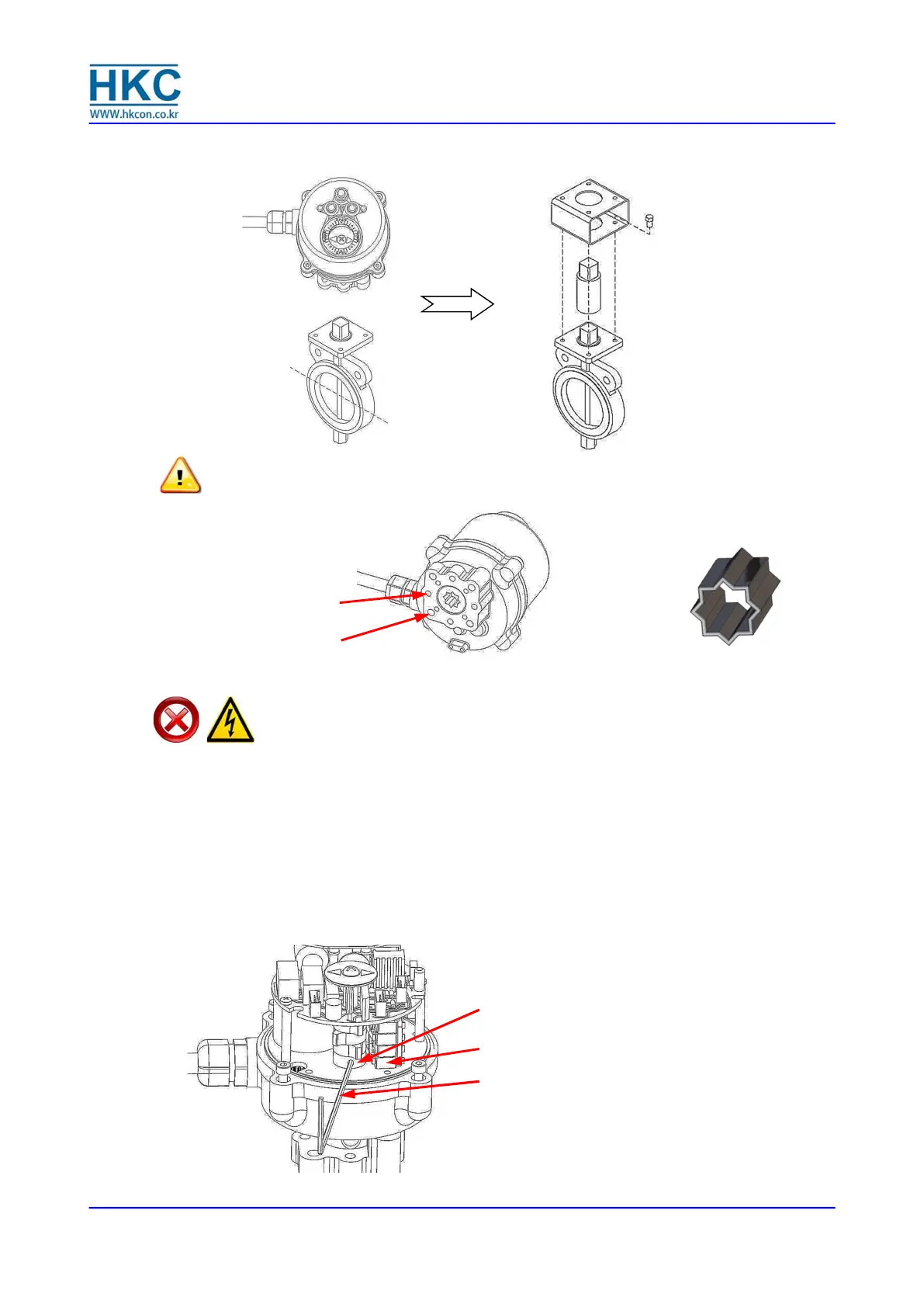

4.2.4. Actuator Mounting Base Details
Note:
Make sure both actuator and valve are fully closed.
DANGER:
HAZARDOUS VOLTAGE. Make sure all incoming power is disconnected
before setting the limit switch
4.3. Limit Switch Setting
4.3.1. Rotate slowly and smoothly handle of the actuator to fully closed position
4.3.2. Using a hex wrench, loosen the set screw in CLOSE limit switch cam
4.3.3. Rotate the CLOSE cam towards CW limit switch until the switch ‘clicks’
4.3.4. Tighten the set screw with a hex wrench
4.3.5. Rotate slowly and smoothly the handle of the actuator to opened position
4.3.6. Using the hex wrench, loosen the set screw in OPEN limit switch cam
4.3.7. Rotate the OPEN cam towards CCW limit switch until the switch ‘clicks’ (see Figure below)
4.3.8. Tighten the set screw with the hex wrench
Direct mounting
(ISO standard)
Actuator : fully closed
Valve
: fully closed
Bracket mounting
Actuator mounting base:
F03/F05 and F04
F04 bolt circle (45
˚
)
F03/F05 bolt circles
Star adapter 14mm
→
11mm
11mm
→9mm
Open limit switch cam (CCW)
Open limit switch
2mm Hexagon socket head screw key
