HKC HQ-015 User Manual

HQ Series Quarter-turn Electric Actuator
Installation Operation& Maintenance Manual
Doc No. : HumG-HQ-21 Rev2 Page 5 / 26 Valve Automation Leader, HKC

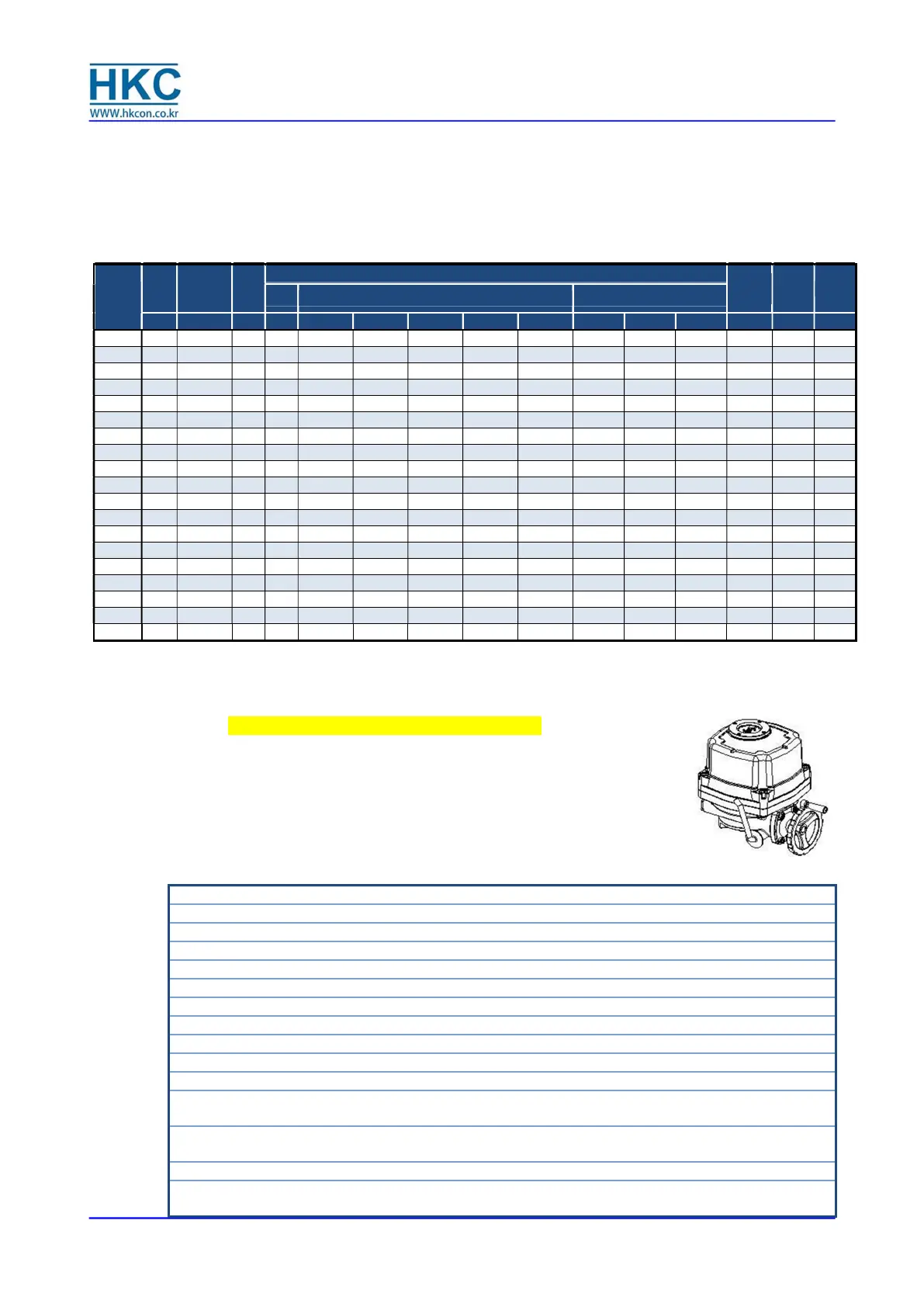

3. General Information and Features
3.1. General information
HKC HQ-series electric actuators are designed for the operation of industrial valves; e.g. butterfly valves
and ball valves. The actuator torque outputs range from 40 Nm to 8,830 Nm (350 In-Lbs to 78,120 in-
Lbs). Currently 19 models are available. [In case of explosion proof or dust ignition proof type, the rated
current may be different due to the difference in the approved data, so please contact HKC. –--21 r0]
3.1.1. Standard technical data
HQ
(Model)
Max.
output
torque
Operating
time(sec)
50/60Hz
Max
bore
size
Rated current (A, tolerance ±10%), (50/60 Hz)
Duty
rate
No. of
handle
turn
Weight
DC AC, 1 phase, 50/60 Hz AC, 3 phase, 50/60 Hz
kgf.m 90° Ømm 24 100 110 200 220 240 50Hz 380 440 460 S4(%) n kg
HQ-004 4 12 / 12 11 0.5 0.2 / 0.2 0.1 / 0.1 0.2 / 0.2 0.1 / 0.1 - NA NA4 NA5 70 8 1
HQ-005 5 11 / 11 14 1 - 0.1 / 0.1 - 0.1 / 0.1 - - - - 70 10 3
HQ-006 6 14 / 12 14 1.7 0.5 / 0.5 0.4 / 0.4 0.3 / 0.3 0.2 / 0.2 0.2 NA NA NA 35 8 3
HQ-008 8 16 / 13 20 3.7 1.3 / 1.3 1.2 / 1.1 0.7 / 0.6 0.6 / 0.6 0.7 0.2 / 0.3 0.6 / 0.4 NA 70 10 7
HQ-010 10 20 / 17 20 4 1.3 / 1.3 1.2 / 1.1 0.7 / 0.7 0.7 / 0.6 0.7 0.2 / 0.3 0.6 / 0.4 NA 70 10 7
HQ-015 15 25 / 21 22 5.3 2.4 / 2.2 2.1 / 2.0 1.1 / 1.1 1.0 / 1.0 1 0.6 / 0.4 0.6 / 0.4 0.6 / 0.4 70 11 17
HQ-020 20 25 / 21 22 6.5 2.5 / 2.3 2.2 / 2.1 1.2 / 1.2 1.1 / 1.1 1.1 0.7 / 0.5 0.6 / 0.4 0.6 / 0.4 70 11 17
HQ-030 30 31 / 26 35 8.6 2.3 / 2.7 2.1 / 2.4 1.1 / 1.4 1.0 / 1.3 1.1 0.6 / 0.5 0.4 / 0.3 0.4 / 0.3 70 13.5 22
HQ-050 50 31 / 26 35 12.8 3.6 / 4.6 3.3 / 4.2 1.9 / 2.1 1.7 / 1.9 1.3 0.9 / 0.8 0.8 / 0.5 0.7 / 0.5 70 13.5 23
HQ-060 60 31 / 26 35 NA 3.8 / 4.9 3.4 / 4.4 2.1 / 2.3 1.9 / 2.0 1.3 1.0 / 0.9 1.4 / 0.9 1.3 / 0.9 70 13.5 23
HQ-080 80 37 / 31 45 NA 6.0 / 6.3 5.4 / 5.7 2.9 / 3.1 2.6 / 2.8 2.6 1.3 / 1.0 1.7 / 0.9 1.6 / 0.9 70 16.5 29
HQ-120 120 37 / 31 45 NA 7.2 / 7.6 6.5 / 6.9 3.1 / 3.3 2.8 / 3.0 2.9 1.5 / 1.1 1.8 / 1.0 1.7 / 0.9 70 16.5 29
HQ-200 200 37 / 31
(1)
65 NA 6.0 / 6.3 5.4 / 5.7 3.4 / 3.3 3.1 /3.0 3.1 1.4 / 1.0 1.7 / 1.0 1.6 / 0.9 50 49.5 75
HQ-270 270 56 / 47
(1)
65 NA 7.0 / 7.4 6.3 / 6.7 3.5 / 3.4 3.2 / 3.1 3.2 1.5 / 1.1 1.8 / 1.0 1.7 / 0.9 50 49.5 75
HQ-300 300 112 / 93 65 NA 7.2 / 7.6 6.5 / 6.9 3.1 / 3.3 2.8 / 3.0 2.9 1.5 / 1.1 1.8 / 1.0 1.7 / 0.9 50 49.5 75
HQ-350 350 39 / 33 75 NA 24.9 / 19.2 22.6 / 17.4 12.4 / 9.5 11.2 / 8.7 11.2 4.2 / 3.0 3.8 / 2.6 3.6 / 2.5 40 42 75
HQ-400 400 58 / 49 75 NA 24.9 / 19.2 22.6 / 17.4 12.4 / 9.6 11.2 / 8.7 11.3 4.2 / 3.0 3.8 / 2.6 3.6 / 2.5 40 42 75
HQ-600 600 78 / 66 110 NA 16.3 / 11.6 14.8 / 10.5 9.9 / 7.0 9.0 / 6.3 - 3.6 / 3.3 2.1 / 1.8 2.0 / 1.7 40 84 215
HQ-900 900 117 / 99 110 NA 16.3 / 11.6 14.8 / 10.5 9.9 / 7.0 9.0 / 6.3 - 3.6 / 3.3 2.1 / 1.8 2.0 / 1.7 40 84 215
Note :Technical data of above may be changed without pre-notice.
[(1) Operating time of 110V ac 1ph is applied 112/93.
(2) Above data shall be applied separately for Explosion proof type actuators in accordance
with relevant approval certificate --- 19 Rev1]
[(3) Delete HQ-800, 1000, 1100 models --- 20 r0]
3.1.2. Hand Wheel and Declutching
HQ-series actuators are provided with a declutchable manual override
system.
① In order to manually operate the actuator, pull the manual override
engagement level towards the hand-wheel until it remains in position.
② Turn the hand-wheel until the valve reaches the required position.
③ Turn clockwise to close and counter-clockwise to open.
3.1.3. Additional standard technical data
Enclosure Rat
ing
Ingress protection
IP67, NEMA 4
,4X
& 6
Enclosure
High grade aluminium alloy,
Anti
-
corrosion coated
Motor
Squirrel caged induction motor
Limit Switches
2 x open/close SPDT, 250 V
ac
16A rating
Auxiliary Limit Switches
2 x open/close SPDT, 250 V
ac
16A rating
[
(except HQ
-
008
/010
)
-
1
7
R
0
]
Torque
Switches
Open/close SPDT, 250V
ac
1
6
A Rating
[
(except HQ
-
008
/010
)
-
1
7
R
0
]
Stall Protection
Built
-
i
n thermal protection
Travel Angle
90 degree +/
-
10%
Indicator
Continuous position indicator
Self
-
Locking
By means of worm gear
Mechanical Travel Stops
2 x
external adjustable mechanical travel stops
Cable
Entries
[
2xNPT 3/4”
,
2xM25
for Ex db, additionally M20, M25 and NPT3/4
”
with
M
30
adaptor
for E
x tb.
(
by u
ser selection)
----
17 Rev0
]
Lubrication
Grease moly EP which will be almost permanently lubricated
. However,
periodical preventive maintenance will extend the operating life
Ambient Temperature
-
20 ℃~ + 60 ℃(except on CPT & PCU board )
External Coating
Dry powder polyester
coating, [max thickness 2mm for Ex tb application
---- 17r1]

HKC HQ-015 Specifications

General

Brand	HKC
Model	HQ-015
Category	Controller
Language	English
