Assembly instruction

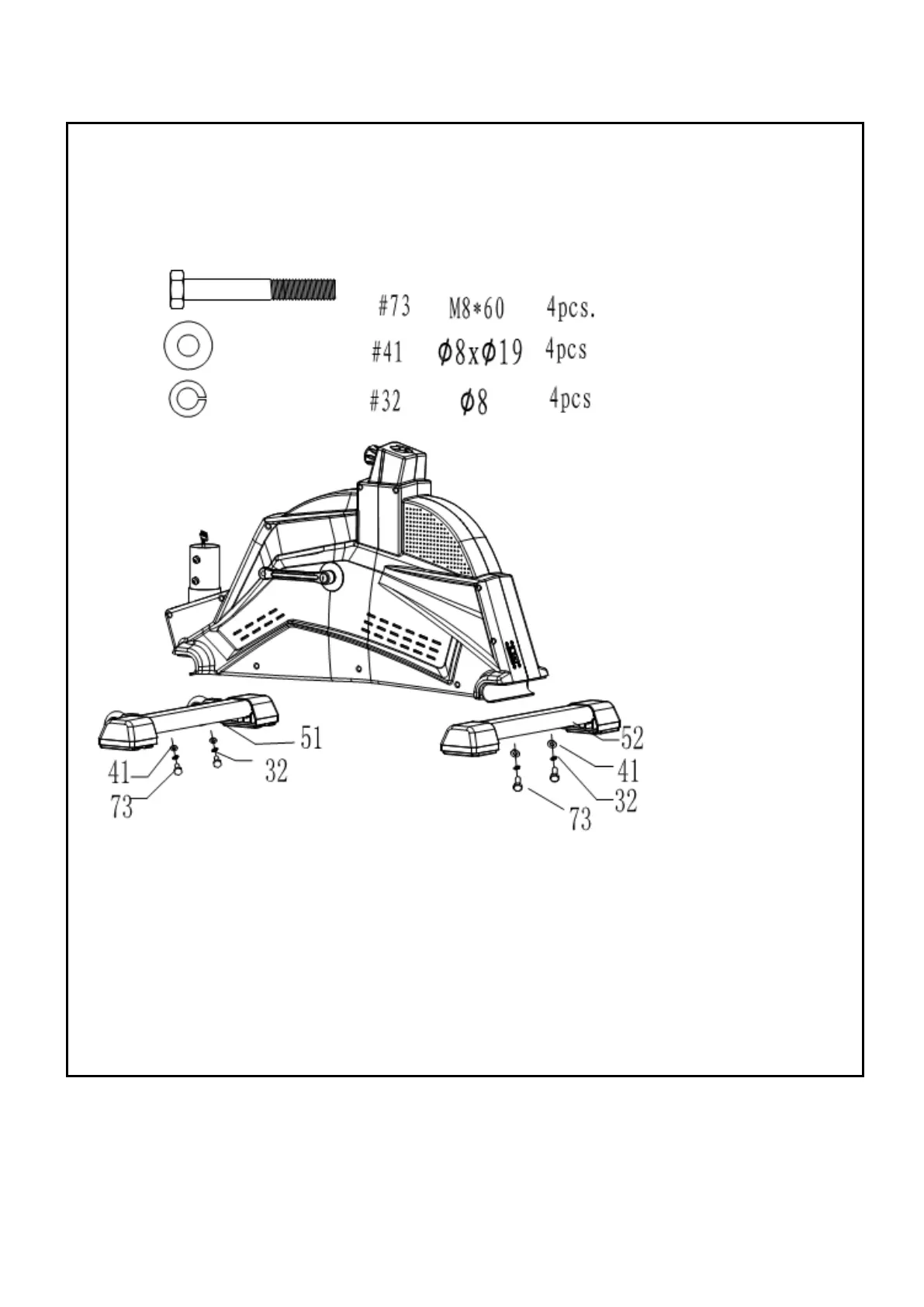

STEP 1
3. Attach front stabilizer (114) to the main frame (1) using 2 screws73), 2 washers32and 2 washers (41).
4. Attach rear stabilizer (52) to the main frame (1) using 2 screws73), 2 washers32) and 2 washers (41).
