343-3512A (03/13)
21 of 27
Optimize
Terrace DNA Installation Packet
Overhead storage unit
15” H Overhead
Mounting Brackets
Screw - install a
screw at top of each
15” H Overhead
Mounting bracket
18" maximum
Illustration 4c: Position Overhead Storage Cabinet onto 15" H Overhead Mounting Brackets
Overhead Storage Installation
Illustration 4d: Secure Overhead Storage Cabinet to 15" H Overhead Mounting Brackets
343-3512A (03/13)
20 of 27
Optimize
Terrace DNA Installation Packet
15” H Overhead Mounting Brackets - attach
brackets to panel by inserting hooks into
panel slots and pressing down to fully seat
Ensure brackets are positioned evenly
across from each other
15” H Overhead Mounting Brackets
Retaining clip - pivot retaining clips, one
per bracket, towards panel to lock 15“ H
Overhead Mounting Brackets in place
Illustration 4: 15" H Overhead Storage Cabinet Installation
Illustration 4a: Attach 15" H Overhead Mounting Brackets to Panel System
Illustration 4b: Lock 15" H Overhead Mounting Brackets to Panel System
Overhead Storage Installation
343-3512A (03/13)
20 of 27
Optimize
Terrace DNA Installation Packet
15” H Overhead Mounting Brackets - attach
brackets to panel by inserting hooks into
panel slots and pressing down to fully seat
Ensure brackets are positioned evenly
across from each other
15” H Overhead Mounting Brackets
Retaining clip - pivot retaining clips, one
per bracket, towards panel to lock 15“ H
Overhead Mounting Brackets in place
Illustration 4: 15" H Overhead Storage Cabinet Installation
Illustration 4a: Attach 15" H Overhead Mounting Brackets to Panel System
Illustration 4b: Lock 15" H Overhead Mounting Brackets to Panel System
Overhead Storage Installation
343-3512A (03/13)
21 of 27
Optimize
Terrace DNA Installation Packet
Overhead storage unit
15” H Overhead
Mounting Brackets
Screw - install a
screw at top of each
15” H Overhead
Mounting bracket
18" maximum
Illustration 4c: Position Overhead Storage Cabinet onto 15" H Overhead Mounting Brackets
Overhead Storage Installation
Illustration 4d: Secure Overhead Storage Cabinet to 15" H Overhead Mounting Brackets
15” H Overhead
Mounting Brackets
15” H Overhead
Mounting Brackets
Retaining Clip
Overhead Cabinet
15” H Overhead
Mounting Brackets
Screw
Step 1 - Attach brackets to panel by inserting hooks
into panel slots and pressing down to fully seat
Ensure brackets are positioned even across
from each other
Step 2 - Pivot retaining clips, one per bracket,
towards panel to lock Overhead Mounting
Brackets in place
Step 3 - Position Overhead cabinet onto 15” H
Overhead Mounting Brackets.
Step 4 - Secure Overhead cabinet onto 15” H
Overhead Mounting Brackets.

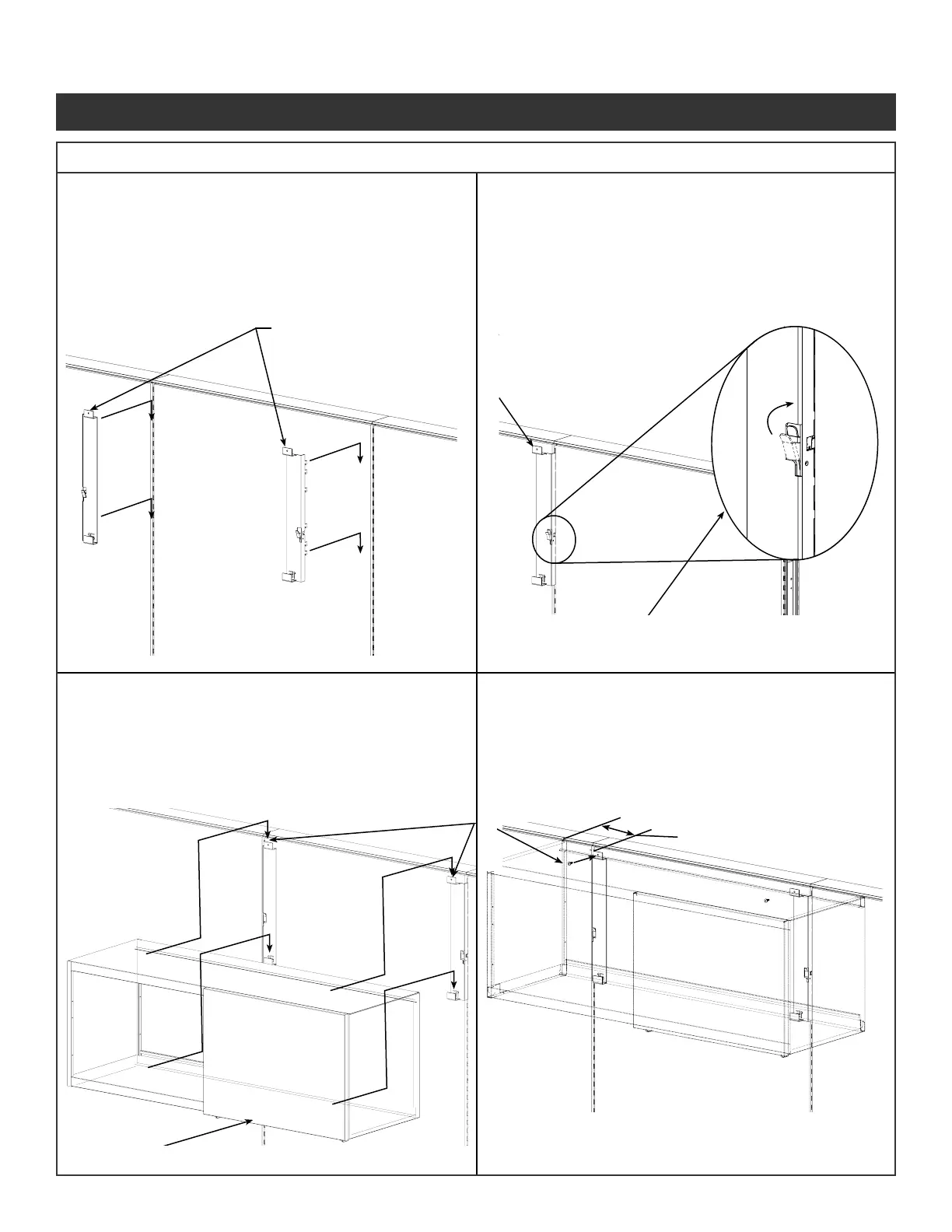

Illustration 15. Overhead Storage Cabinet Installation
Illustration 15a. Overhead Mounting Brackets
Illustration 15b. Overhead Cabinet Retaining Clip
Illustration 15c. Mounting Overhead Illustration 15d. Secure Overhead
Panel System Installation Packet
343-3890A
(03/17)
Page 20 of 27
