– 7 –

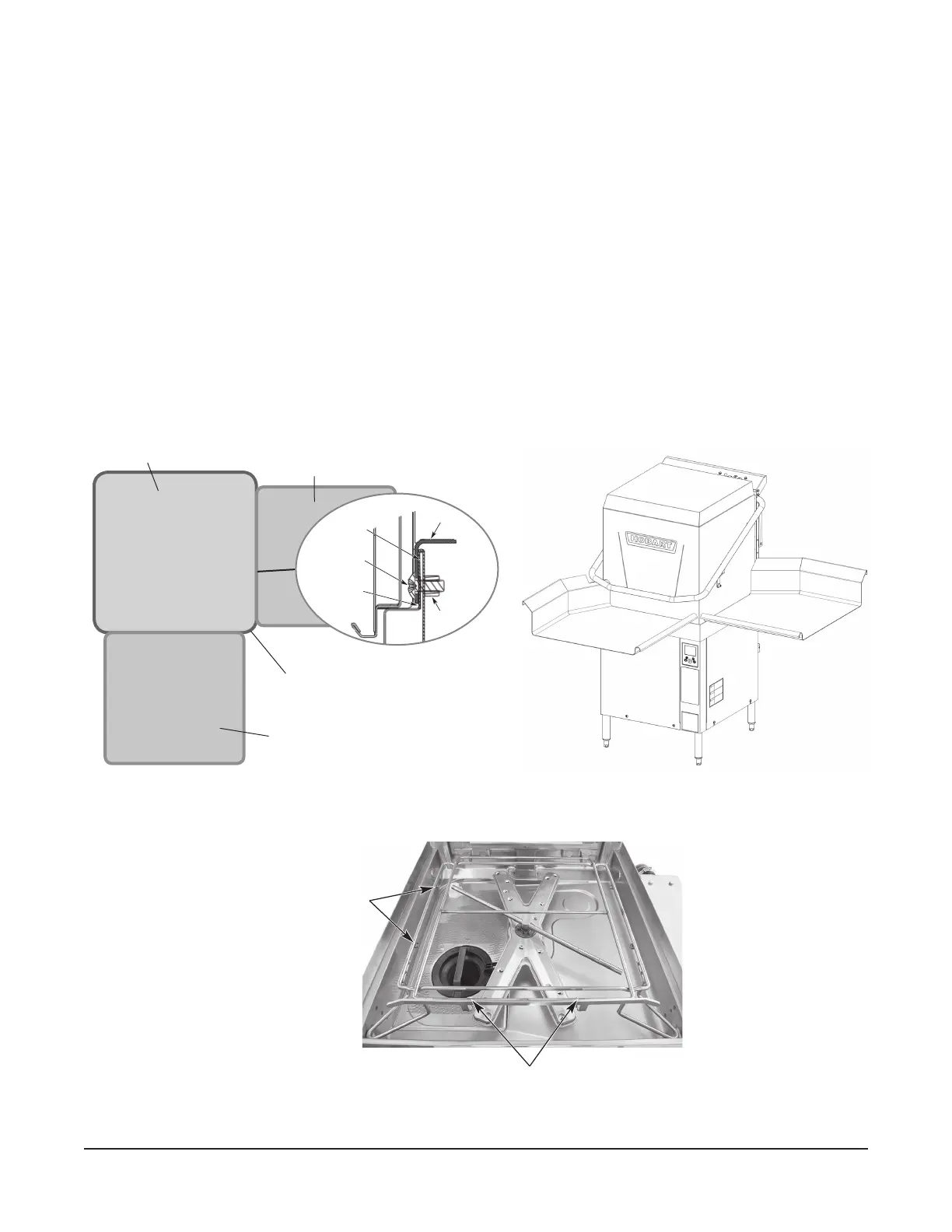

CORNER INSTALLATION

Before placing the dishwasher in its operating location, check machine conguration.

If the machine is being installed in a corner (Figs. 4, 5), clearances of 30" out from the

dishwasher under the left-hand tabling by 29-1/2" above the nished oor and 15 inches out

from the dishwasher at the right side by 29-1/2" above the nished oor must be provided

for servicing. For proper installation of a corner machine, the control and display should

be positioned at the front corner for operator access (Fig. 5).

For corner installations, reposition the rack guide to the left side of the rack track using

the following procedure (Fig. 6).

1. Remove two nuts and bolts securing front rack guide to rack track and remove

rack guide.

2. Position rack guide on left side of rack track aligning holes in rack guide to spacers on

rack track.

3. Secure using hardware removed in Step 1. Note: Nuts should be installed on the inside

of the rack track.

SPACERS FOR

RELOCATING

RACK GUIDE

REMOVE (2) NUTS & BOLTS

Fig. 6

WASH TANK

DISH TABLE

CORNER OPERATION SHOWN

CONTROLS MUST BE ACCESSIBLE

AT FRONT CORNER.

DISH TABLE

NUT

SEALANT

MACHINE SCREW

OR RIVET

INNER WALL OF

WASH TANK

Fig. 4

Fig. 5
