– 4 –
ELECTRICAL CONNECTION
WARNING: ELECTRICAL AND GROUNDING CONNECTION MUST COMPLY WITH THE
APPLICABLE PORTION OF THE NATIONAL ELECTRICAL CODE AND/OR OTHER LOCAL
ELECTRICAL CODES.
WARNING: DISCONNECT THE ELECTRICAL POWER TO THE MACHINE AND FOLLOW
LOCKOUT / TAGOUT PROCEDURES.

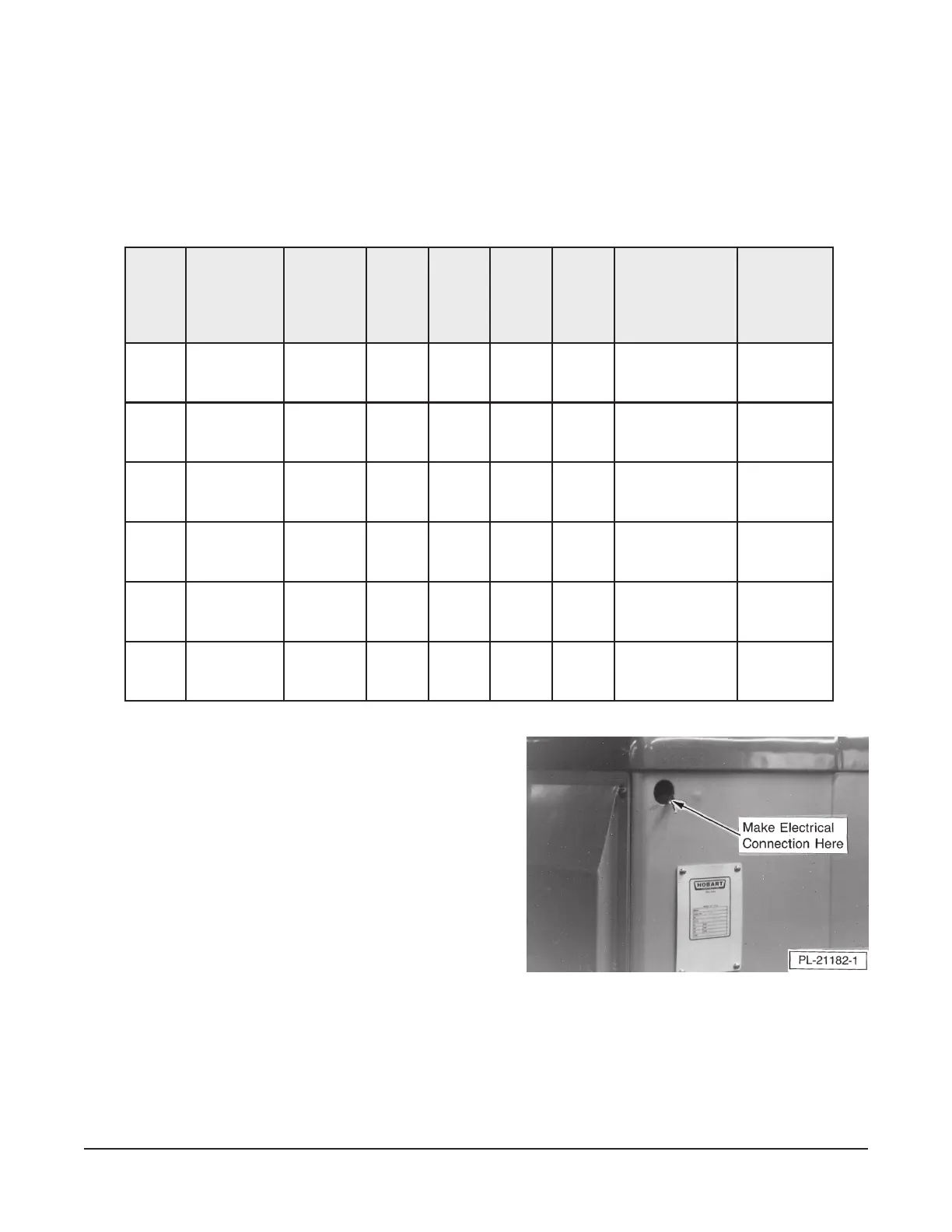

A hole for
1
/2 trade size conduit is located at the top of the
pedestal (Fig. 1). Make electrical connections per the
wiring diagram located on the inside of the top cover.
Check Rotation (Three-Phase Machines Only)
Three-phase machines must be connected so the
planetary rotates in the direction of the arrow on the Drip
Cup. To check rotation:
1. Set the Gear Shift Lever on 1.
2. Apply power to the mixer, set the
Electromechanical Timer on hold; or, if equipped
with a Programmable Timer Controller, set it on
[-- : --]. With the Bowl Support all the way up,
momentarily run the machine by pushing the START and then STOP buttons.
3. If rotation is incorrect, disconnect electrical power supply and interchange any two of the
incoming power supply leads.
sledoM hP/zH/stloV
detaR
spmA
tiucriC
eziS
)spmA(
esuF
eziS
)spmA(
C06
reppoC
erIW
eziS
tiucriC
eziS
)spmA(
rekaerBtiucriC
)spmA(
C06
eriWreppoC
eziS
043D1/06/0214.21020221020221
043D1/06/8020.8510141020221
043D1/06/0422.6510141515141
043D3/06/8028.351641516 41
043D3/06/0424.351641516 41
043D3/06/0847.151341516 41
Fig. 1
D340 Mixer Technical Manual Page 10 of 67
