ELECTROMECHANICAL TIMER CONTROLS (When Equipped, Fig. 3)
The START button is used to start the mixer.
The STOP button is used to stop the mixer.
The TIMER is used in conjunction with the START
button for timed mixing operations and will stop the
mixer when a preset time has elapsed.
Non-timed Mixing
Set the timer on hold and use the START and STOP buttons to operate the mixer.
Start Button
Stop Button
Timer
Gear Shift Lever
PL-40142-1
PL-40174-1

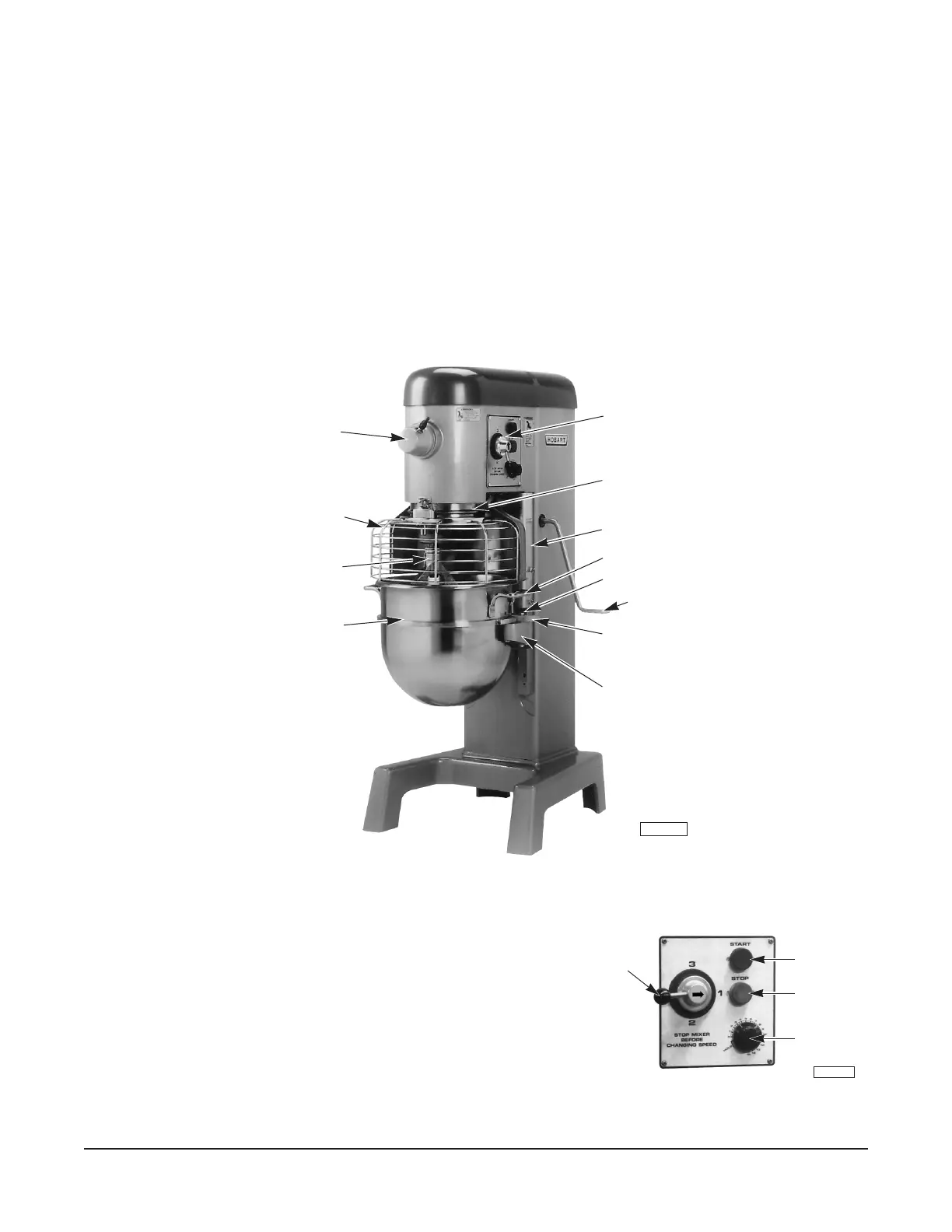

Controls
Bowl Lift Handle
Bowl Handle
Bowl Clamp
Bowl Support
Attachment Hub
Bowl Guard
(Wire Cage)
Agitator
Bowl
Drip Cup
Apron
Alignment Pin
Fig. 2
OPERATION
WARNING: MOVING BEATER IN BOWL. KEEP HANDS, CLOTHING AND UTENSILS OUT
WHILE IN OPERATION. DO NOT USE WITHOUT INTERLOCKED GUARD.
Every D340 mixer is equipped with either an Electromechanical Timer Control (described at the bottom
of this page) or a Programmable Timer Controller (described on page 6). Also, become familiar with the
other operating parts (Fig. 2) and their functions, which are referenced throughout the Operation
section.
The Bowl Guard must be in the Front-Center Position or the mixer will not operate (see page 10).
If the Bowl Support is not all the way up, the mixer will not operate unless the START button is held in.
Fig. 3
D340 Mixer Technical Manual Page 11 of 67
