PROGRAMMABLE TIMER CONTROLLER (When Equipped)
At idle, the TIME DISPLAY [--:--] shows that no time has been set (Fig. 4).

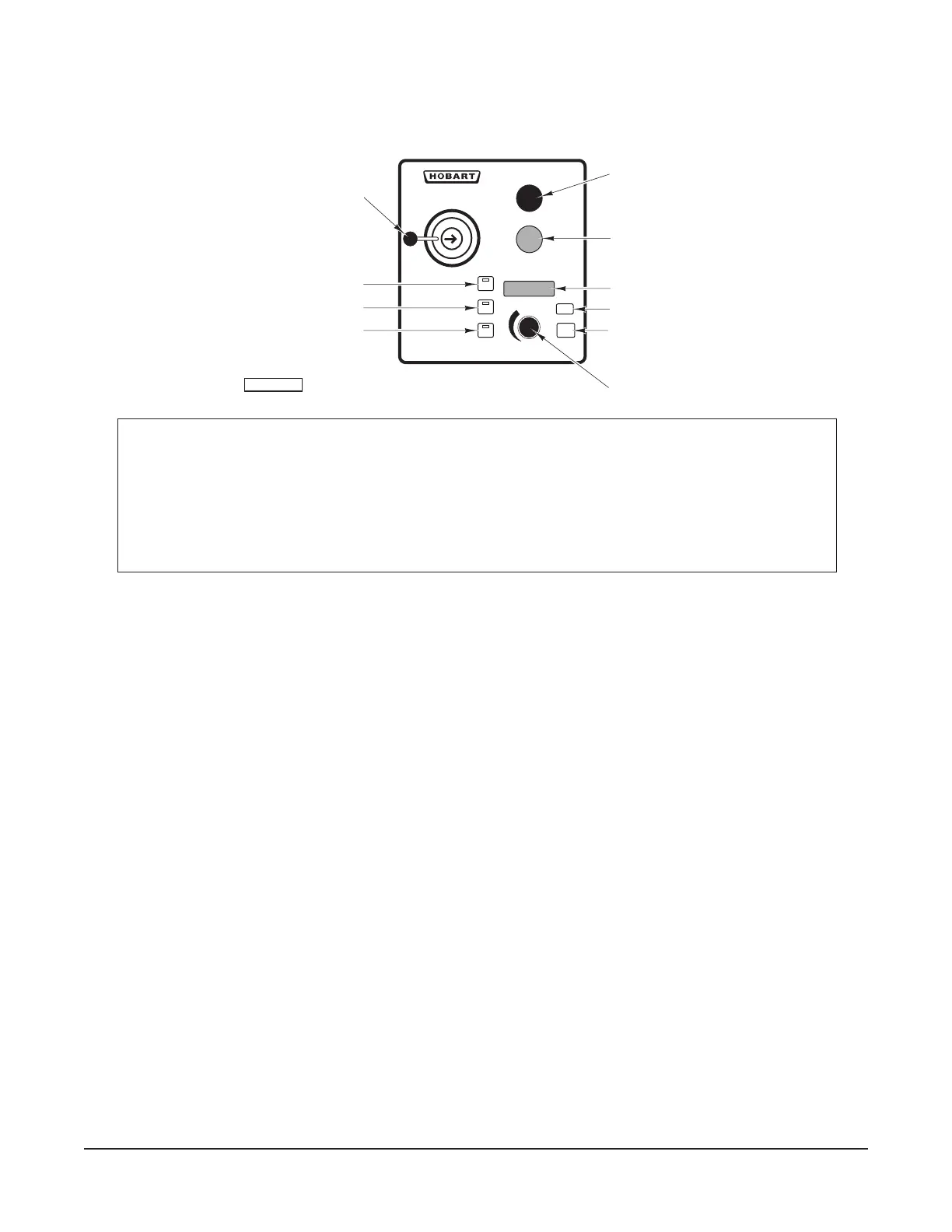

Fig. 4
Timer Keys Programming Function (if the mixer is not mixing)
P1 Contains up to four preset times. Displays each preset time sequentially.
P2 Contains up to four additional preset times. Displays each preset time sequentially.
TIME Knob Turn the TIME knob until the desired time is shown on the TIME DISPLAY.
SAVE Replaces the preset time with the indicated time.
CLEAR Returns to idle from a programming function.
Continuous Mixing
START and STOP buttons control mixing operation.
Beginning from the idle display [-- :--], press START to begin mixing. The M/C Indicator will be lit,
and the total mixing time will be indicated (minutes and seconds).
Press STOP when mixing is done. The M/C Indicator light goes off and the idle display [-- :--]
returns.
Set Mixing Time (Using TIME Knob)
Beginning from the idle display [-- :--], turn the TIME knob to set the mixing time. The M/C Indicator
will be lit.
START and STOP buttons control mixing operation.
Press START to begin mixing. The timer will count down from the set time to [00 : 00].
If STOP is pressed, both mixing and timer countdown will be interrupted. After pressing STOP,
press START to resume both mixing and timer countdown; or, press CLEAR to return to the idle
display.
When the timer reaches [00 : 00], the mixer will stop and the M/C Indicator will be lit. A
tone will sound for 2 seconds and the idle display [-- :--] will return.
3
2
1
STOP
TIME
STOP MIXER
BEFORE
CHANGING SPEEDS
START
TIMER CONTROLLER
P1
SAVE
CLEAR
P2
M/C
12 3 4
GEAR SHIFT LEVER
P1 KEY
P2 KEY
M/C INDICATOR
START BUTTON
STOP BUTTON
TIME DISPLAY
KNOB
SAVE KEY
CLEAR KEY
PL-56563
D340 Mixer Technical Manual Page 12 of 67
