Hobart D340 Technical Manual

- 24 -
MODEL D340 MIXER REPLACEMENT PARTS
F-19154 Rev. C (August 2005)

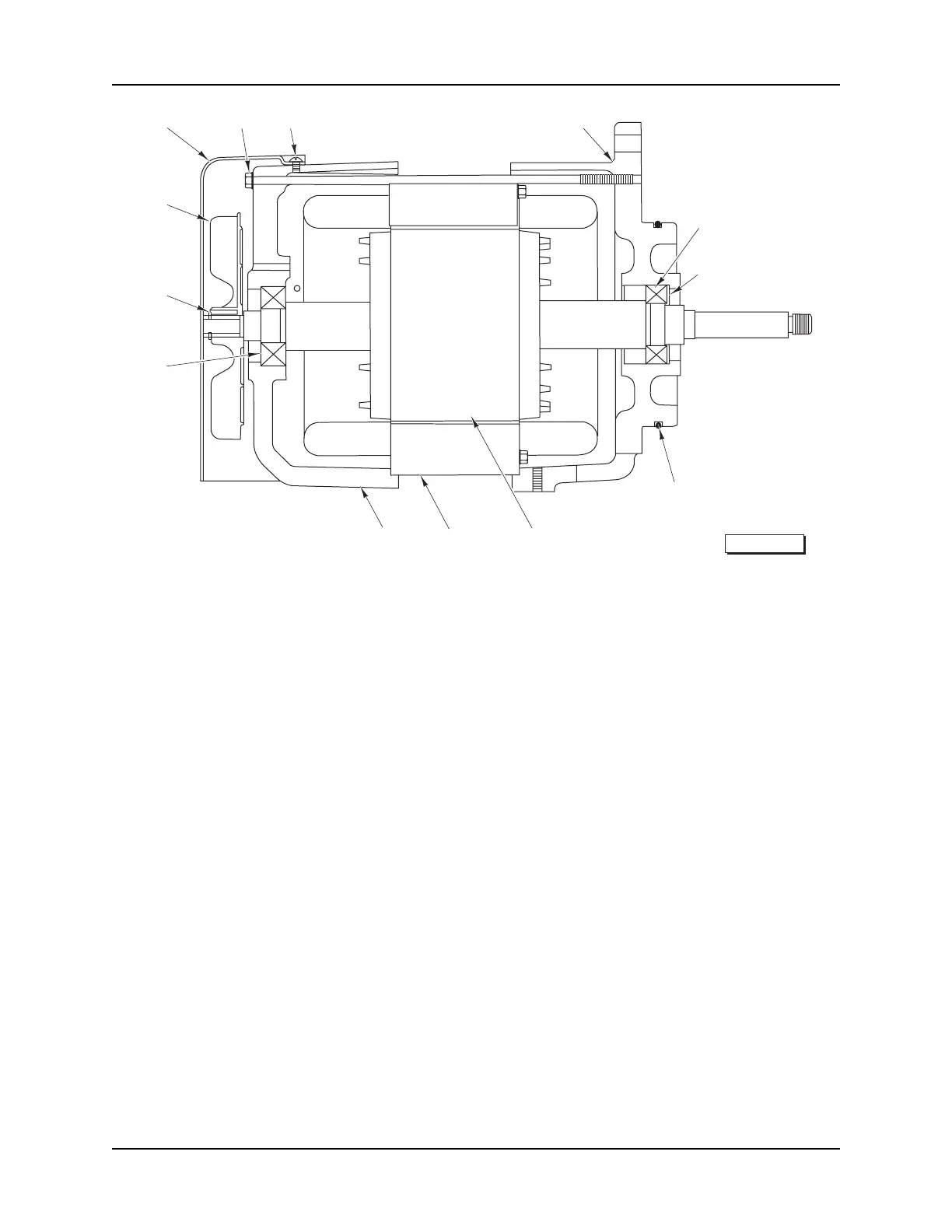

MOTOR PARTS – 3 PHASE
(*NON GE MOTORS)
ILLUS. PART NO. NAME OF PART AMT.
PL-55615
1 00-015747-00312 Rotor Assy. (ML-104483) ........................................................................................................... 1
2 00-015747-00313 Rotor Assy. (ML-104484) (Not Shown) ....................................................................................1
3 00-065478-184-1 Stator Assy. (208 V., 60 Hz.) .....................................................................................................1
4 00-065478-184-2 Stator Assy. (240/480 V., 60 Hz.) .............................................................................................. 1
5 00-435867-00002 Housing – Motor (Rear) (ML-104483) ....................................................................................... 1
6 00-435867-00003 Housing – Motor (Rear) (ML-104484) ....................................................................................... 1
7 BB-005-34 Ball Bearing (MRC 204 SZZ-01-ST-E-92-C) (ML-104483) ........................................................ 1
8 BB-017-39 Ball Bearing (MRC 205 SZZ-01-ST-A-92-C) (ML-104484) ....................................................... 1
9 RR-011-05 Retaining Ring ............................................................................................................................. 1
10 00-292466-00001 Fan – Ventilating (ML-104483) ...................................................................................................1
11 00-274646-00002 Fan – Ventilating (ML-104484) ...................................................................................................1
12 00-435868 Shroud – Motor (ML-104483) .................................................................................................... 1
13 00-435869 Shroud – Motor (ML-104484) (Not Shown) .............................................................................. 1
14 00-271335-00002 Bolt – Motor (3 Phase) ............................................................................................................... 4
15 WL-003-22 Lockwasher #10 Light ............................................................................................................... 4
16 SC-018-34 Mach. Screw 8-32 x
1
/2 Phil. Pan Hd. ......................................................................................... 3
17 WL-003-12 Lockwasher #8 Medium............................................................................................................. 3
**18 00-873505-00002 Housing – Motor (Front) (Not Shown) ....................................................................................... 1
19 BB-015-08 Ball Bearing (MRC 105KSZZ-01-ST-A-92-C) ............................................................................ 1
20 SL-005-04 Spring – Loading ........................................................................................................................ 2
21 OR-001-01 O-Ring......................................................................................................................................... 1
00-275152 Shim .......................................................................................................................................... AR
00-435255-00003 Motor (208 V., 60 Hz.) (ML-104484) ......................................................................................... 1
00-435255-00004 Motor (240/480 V., 60 Hz.) (ML-104484) .................................................................................. 1
*For GE Motors, See Page 25.
**Also Order 67500-126 and See TSB 843E.
PL-55615
19
20
18
10-11
9
7-8
5
6
3
4
1
2
21
15
14
12-13
17
16
D340 Mixer Technical Manual Page 44 of 67

Hobart D340 Specifications

General

Model	D340
Motor Power	1.5 HP
Speed Settings	3
Dimensions	21.5" W x 26" D x 39.5" H
Weight	270 lbs
Power	Electric
Capacity	40 Quarts
Bowl Capacity	40 Quarts
