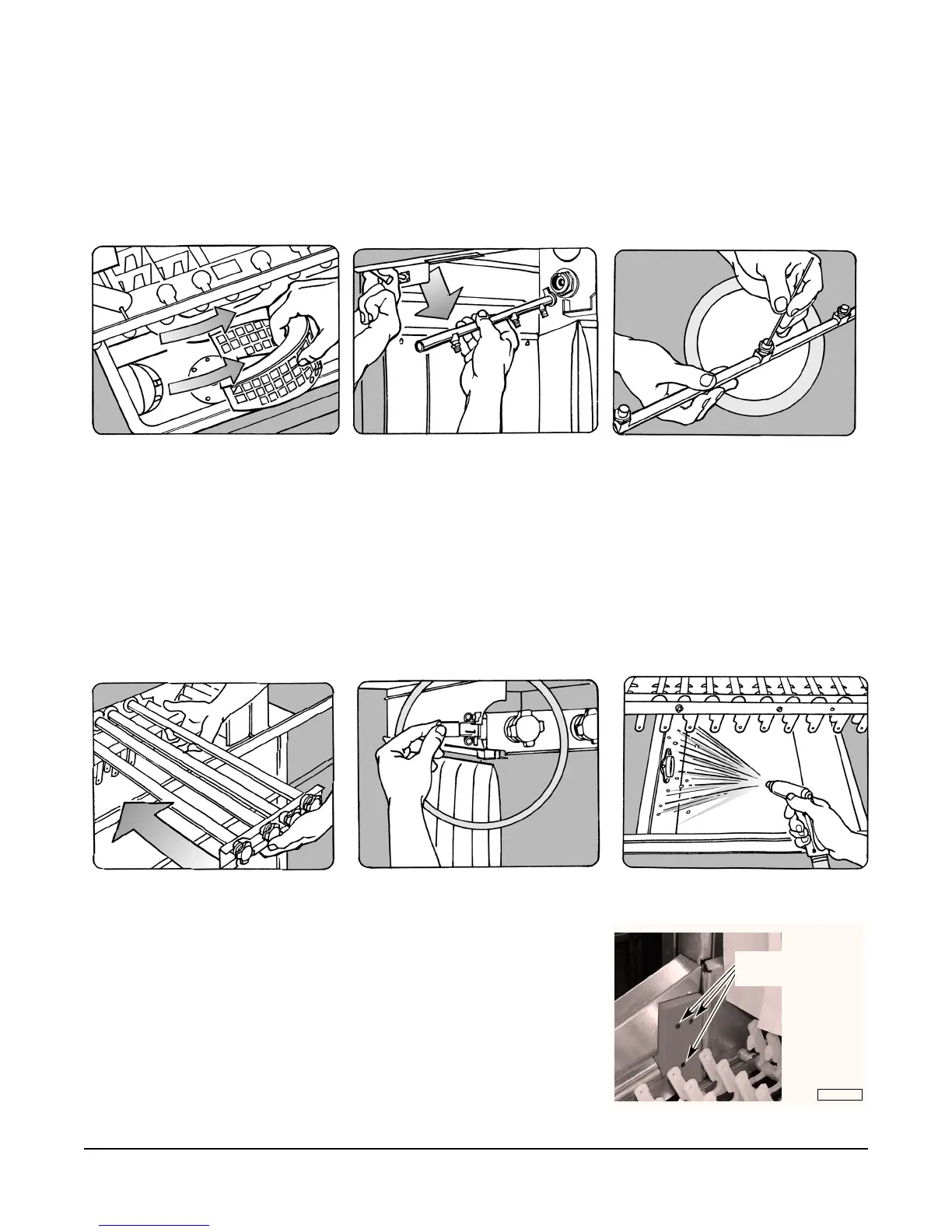

When tanks are empty, remove pump intake screens (Fig. 21) and clean them in a sink.
Remove the final rinse arms (Fig. 22).
Clean debris from nozzles and arms using a straightened paper clip (Fig. 23).
Never use steel wool to clean warewasher surfaces.
Use only products formulated to be safe on stainless steel.
Fig. 21 Fig. 22 Fig. 23
Reinstall wash arm end caps; do not overtighten. Reinstall wash / rinse arms in their proper location.
Orient arms so upper nozzles point down and lower nozzles point up. Arms in the prewash section each
have two tubes (the slightly longer arm goes below). The wash / rinse arms with five tubes fit in the
upper brackets. Arms with four tubes fit in the lower brackets.
To install the arms, rest the rear wash arm manifold on the track (open end of the box is at the rear so
it can connect to the O-ring assembly in the rear). Push wash arms to rear (Fig. 24). Latch wash arms
in place (Fig. 25).
Rinse the tank bottom, removing any accumulation of food soil (Fig. 26).
Fig. 24 Fig. 25 Fig. 26
Replace the pump intake screens, strainer pans, and strainer
baskets. Leave the machine doors open to allow the interior to air
out and dry. Rehang curtains.
Clean machine exterior like any other stainless steel appliance.
Use damp cloth and mild soapy water.
If equipped with photoelectric sensor rinse, flush the openings
where the sensors are located at the load end of the machine
(Fig. 27).
Fig. 27
PL-41434-1
PHOTOELECTRIC
SENSOR OPENINGS
