– 6 –
OPERATION
WARNING: MOVING BEATER IN BOWL, KEEP HANDS, CLOTHING, AND UTENSILS OUT WHILE
IN OPERATION, DO NOT USE WITHOUT INTERLOCKED GUARD.
Every H600 and L800 mixer is equipped with either an Electro-Mechanical Timer Control (described
at the bottom of this page) or a Programmable Timer Controller (described on pages 7 – 9). Also,
become familiar with the other operating parts (Fig. 2) and their functions, which are referenced
throughout the
OPERATION
section (pages 6 – 12).
The Bowl Guard must be in position or the mixer will not operate. Refer to page 11.
If the Bowl Support is not all the way up, the mixer will not operate unless the START button is held
in.

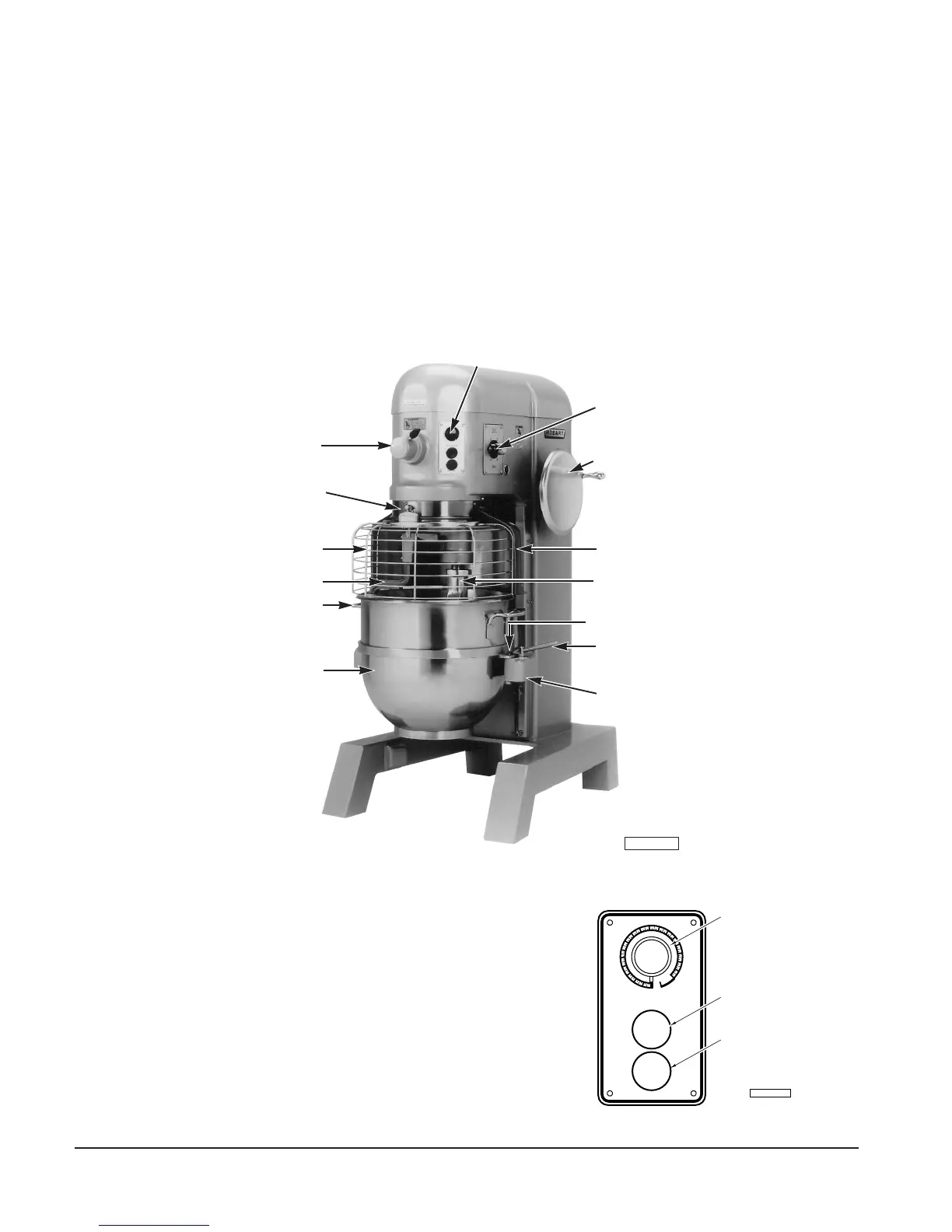

Fig. 2
ELECTRO-MECHANICAL TIMER CONTROLS (when equipped)
The START button is used to start the mixer.
The STOP button is used to stop the mixer.
The TIMER is used in conjunction with the START
button for timed mixing operations and will stop the
mixer when a preset time has elapsed.
For non-timed mixing — Set the timer on HOLD
and use the STOP button to stop the mixer.
Fig. 3
PL-40067-1
Contols
Gear Shift Lever
Handwheel
Apron
Agitator
Bowl Clamp
Bowl Support
Bowl
Bowl Handle
Bowl Scraper
Attachment (optional)
Bowl Guard
Attachment Hub
Alignment Pin
Drip Cup
10 11
12
13
14
15
9
8
7
6
5
4
3
2
1
0
HOLD
STOP
BUTTON
START
BUTTON
TIMER
PL-51306
STOP
START
