Recipe Timer (Optional)
Models HL120/HL200 (With Three Mix Speeds Plus Stir Speed)

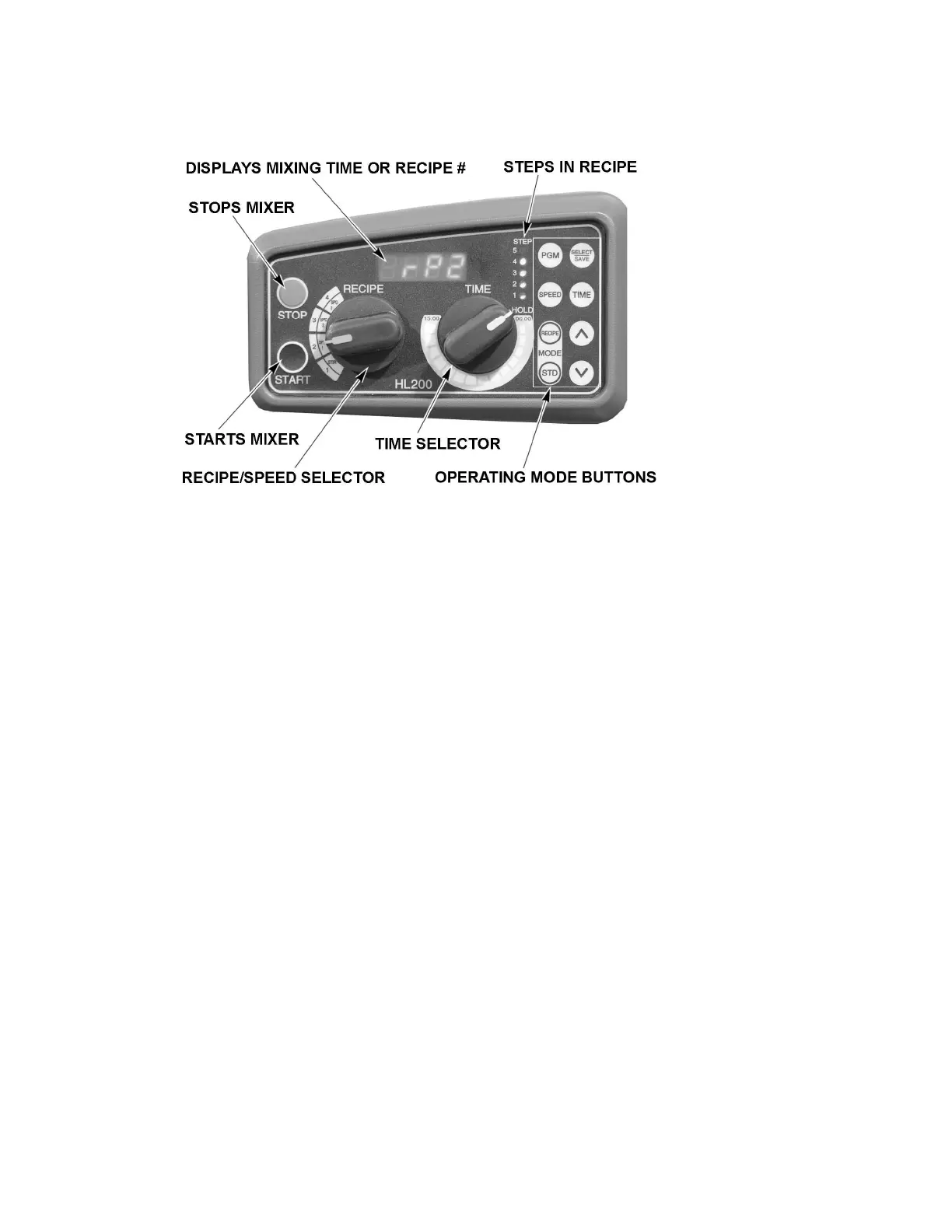

Fig. 15
The SmartPlus2
™ recipe timer has two operating modes, Standard (STD) and RECIPE.
Standard Mode
Operates exactly as the standard controls utilizing continuous and timed mixing.
Recipe Mode
x Use mode buttons to switch mixer operation between recipe and standard timed operation.
x Up to 4 recipes can be stored in memory
x Each recipe can contain 5 steps
x Each step can be programmed to operate with the following speeds and time.
SPEED SETTINGS TIME SETTINGS
SPd 1 (DEFAULT) 00:00 – 15:00 minutes (10 second increments)
SPd 2 End (default)
SPd 3
Stir
PAUS (pause – no mixing)
7
