BOWL PLACEMENT
The bowl must be installed before the agitator is installed.
To install the bowl, lower the bowl support and position bowl so the alignment pins on the left
side of the bowl support fit in the holes in the bowl tab. (Fig. 3) Place the slotted tab on bowl
into the lower part of the pin. Swing the bowl into the mix position on bowl support. (Fig. 4)

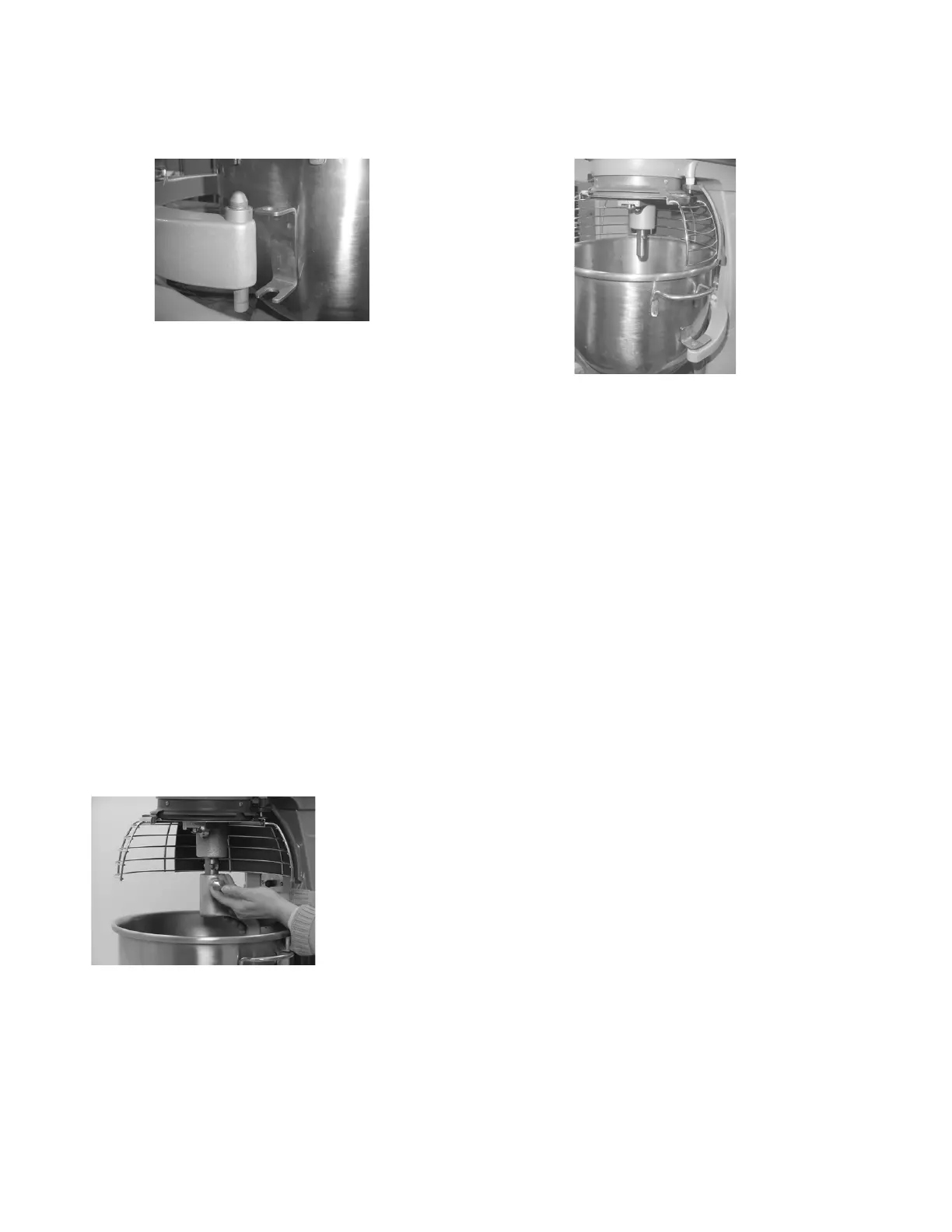

Fig. 3
AGITATOR
Fig. 4
To install an agitator, the bowl must be on the bowl support.
To Install
1. Lower the bowl.
2. Open the bowl guard wire cage.
3. Place the agitator inside the bowl and align the horizontal slot on the agitator with the agitator
shaft pin.
4. Slide the agitator up the agitator shaft until it stops and latches. An audible click should be
heard when the agitator locks in position.
To Remove
1. Open the bowl guard wire cage.
2. Lower the bowl.
3. Hold the agitator and pull the plunger of the agitator out (Fig. 5). Slide agitator down off the
agitator shaft.
Fig. 5
