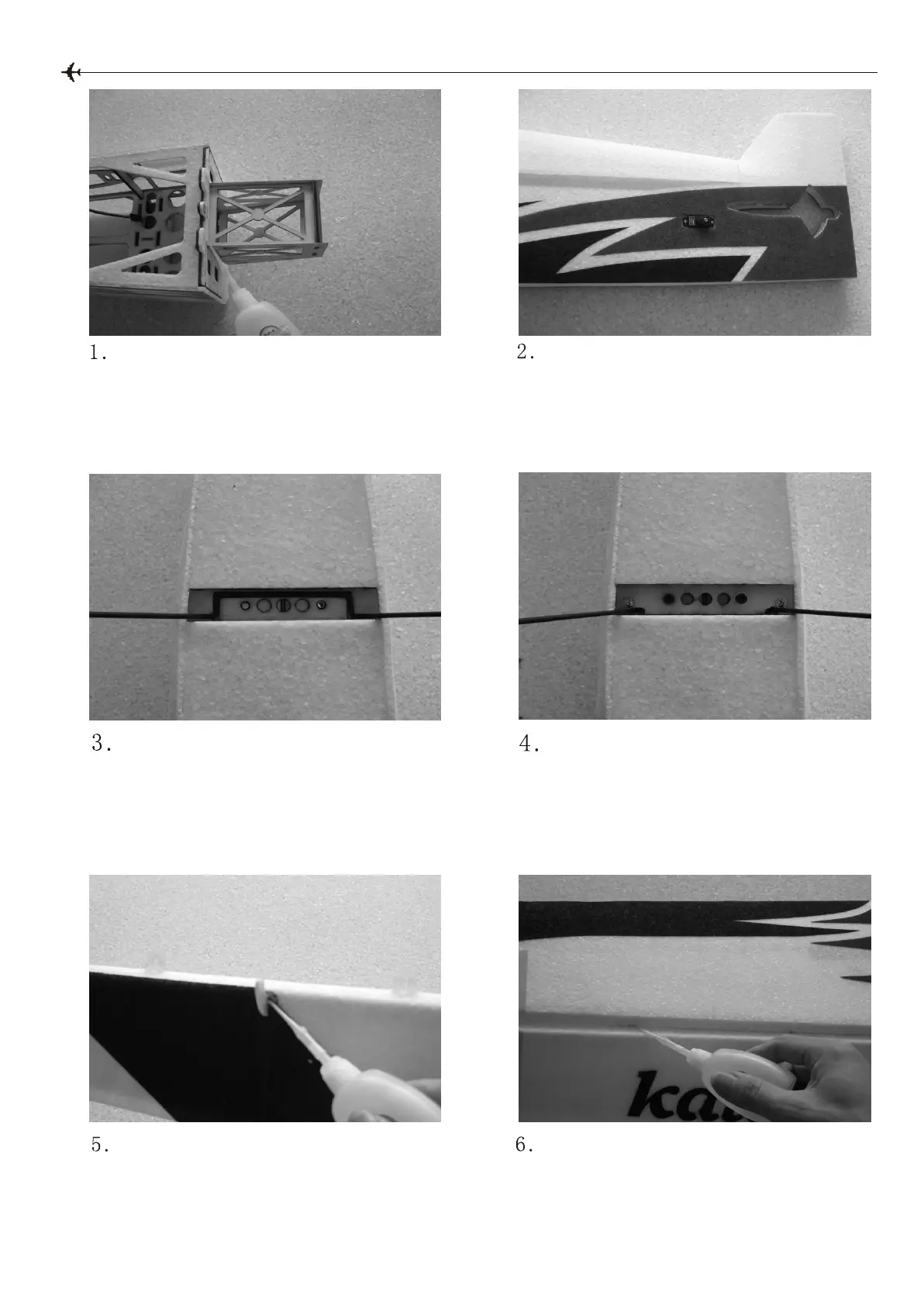

Installation of the motor mount.
Slot
the motor mount into the slots
of the fuselage, Glue in place with
medium CA adhesive.
Install the elevator servo in the
direction shown above. Screw into
p
lace with 2 x PK screws.
As s
hown above place the steel wire
undercarriage into the slot.
Screw into place the undercarriage
securing plate. Note: There is 1 extra
securing plate supplied as a spare in
the kit..
Make slots in the ailerons and wing
trailing for the hinges, glue in place with
a medium CA. Ensure you leave a small
gap to allow the aileron to move freely
without binding.
Install the aileron horn as
shown using medium CA
adhesive.
