Hobie Mirage Lynx User Manual

7
hobie.com
MirageDrive/Carry Handle Assembly
7/32

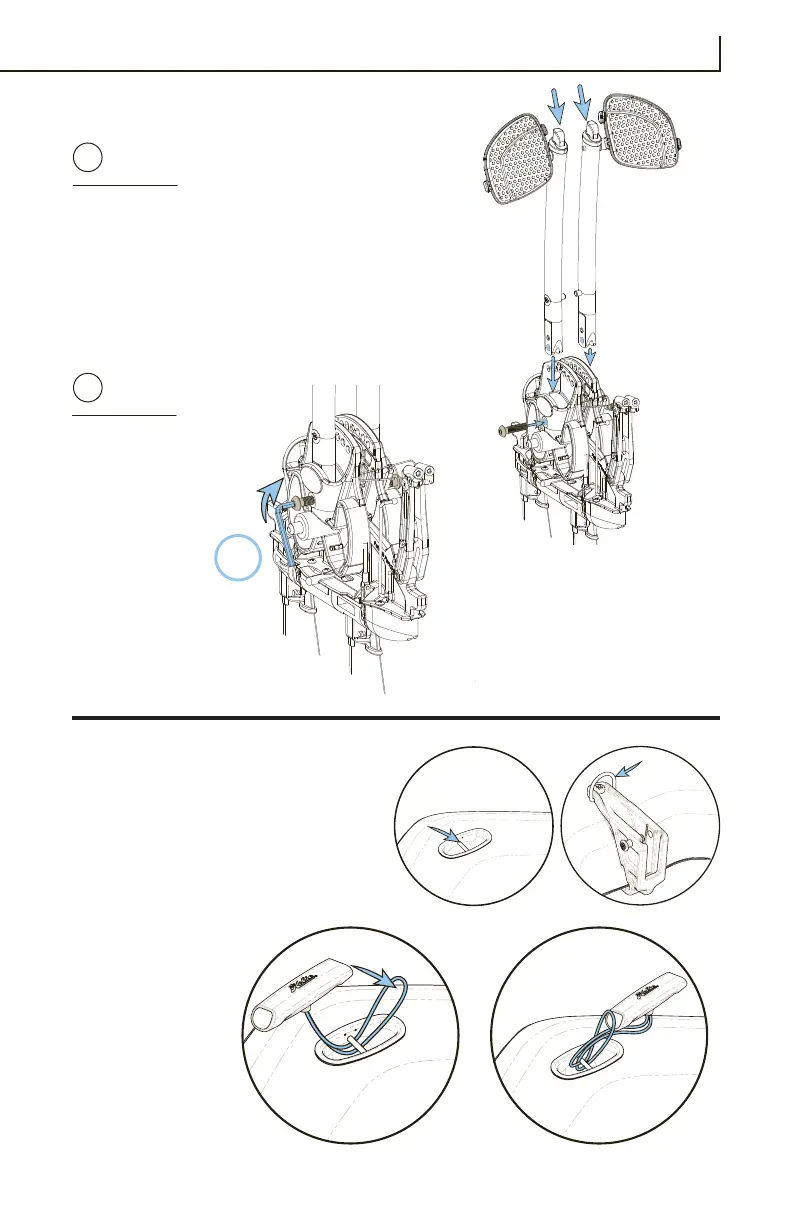

MirageDrive Cranks
Carry Handle Installation
1
Insert cranks into drums while depressing
button at top. Make sure you are putting
the Left and Right pedal on the correct
side as shown here.
2
Tighten crank
bolt all the way
using a 7/32”
Allen® wrench.
7/32
Loop the bow and stern
carry handles through the
bow leash plug and stern
D-ring

Hobie Mirage Lynx Specifications

General

Length	11' (3.35 m)
Width	36" (0.91 m)
Capacity	350 lbs (159 kg)
Drive	MirageDrive 180
Crew	1
Weight	57 lbs (25.9 kg)
Rudder System	Kick-Up Rudder
