Rudder Installation
Rudder Installation/Removal

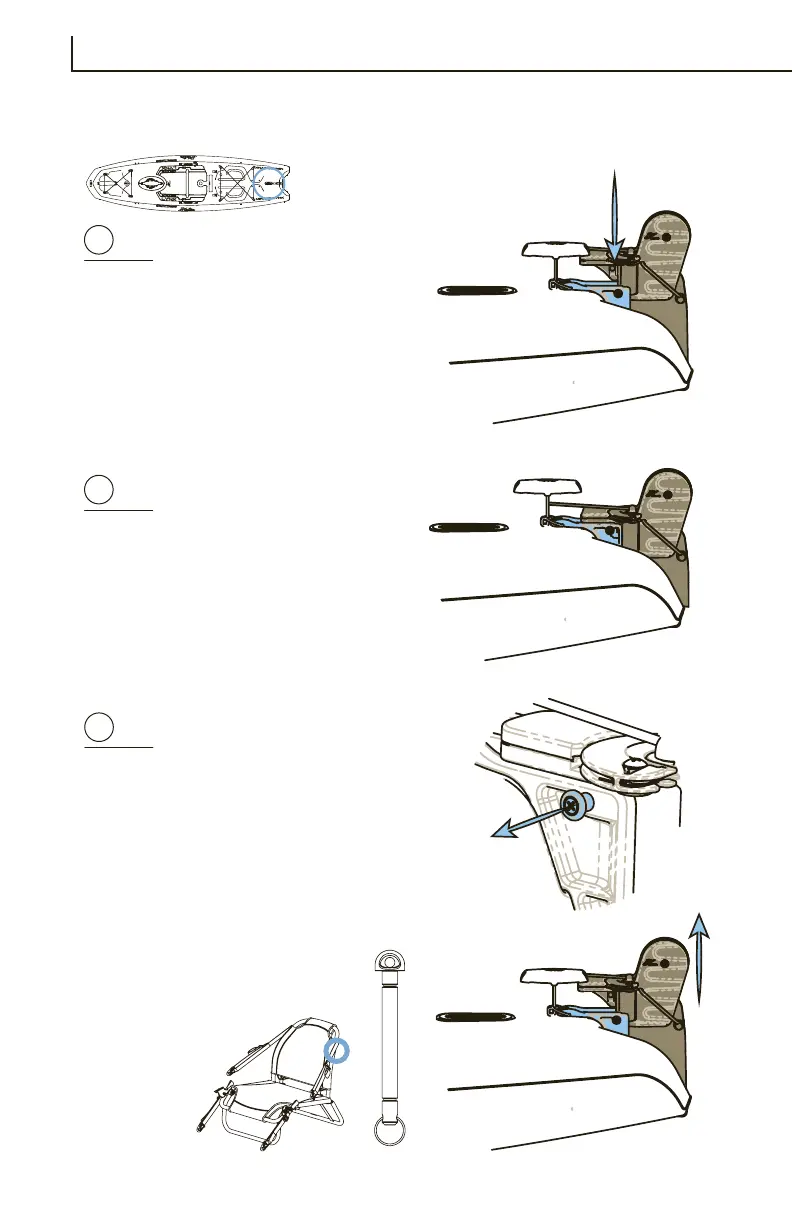

Align the track on
the rudder system
with the track on the
gudgeon that is
mounted to the back
of the kayak.
Slide the rudder
track into the gud-
geon track making
sure the red pin
locks.
To remove the rud-
der, pull the red
locking knob out
while pulling the
rudder up.
1
2
3
NOTE: Your rudder pin is
designed to break under high
loads. An extra pin is stored
inside a small pocket on the
back of your seat.

Hobie Mirage Lynx Specifications

General

Length	11' (3.35 m)
Width	36" (0.91 m)
Capacity	350 lbs (159 kg)
Drive	MirageDrive 180
Crew	1
Weight	57 lbs (25.9 kg)
Rudder System	Kick-Up Rudder
